5

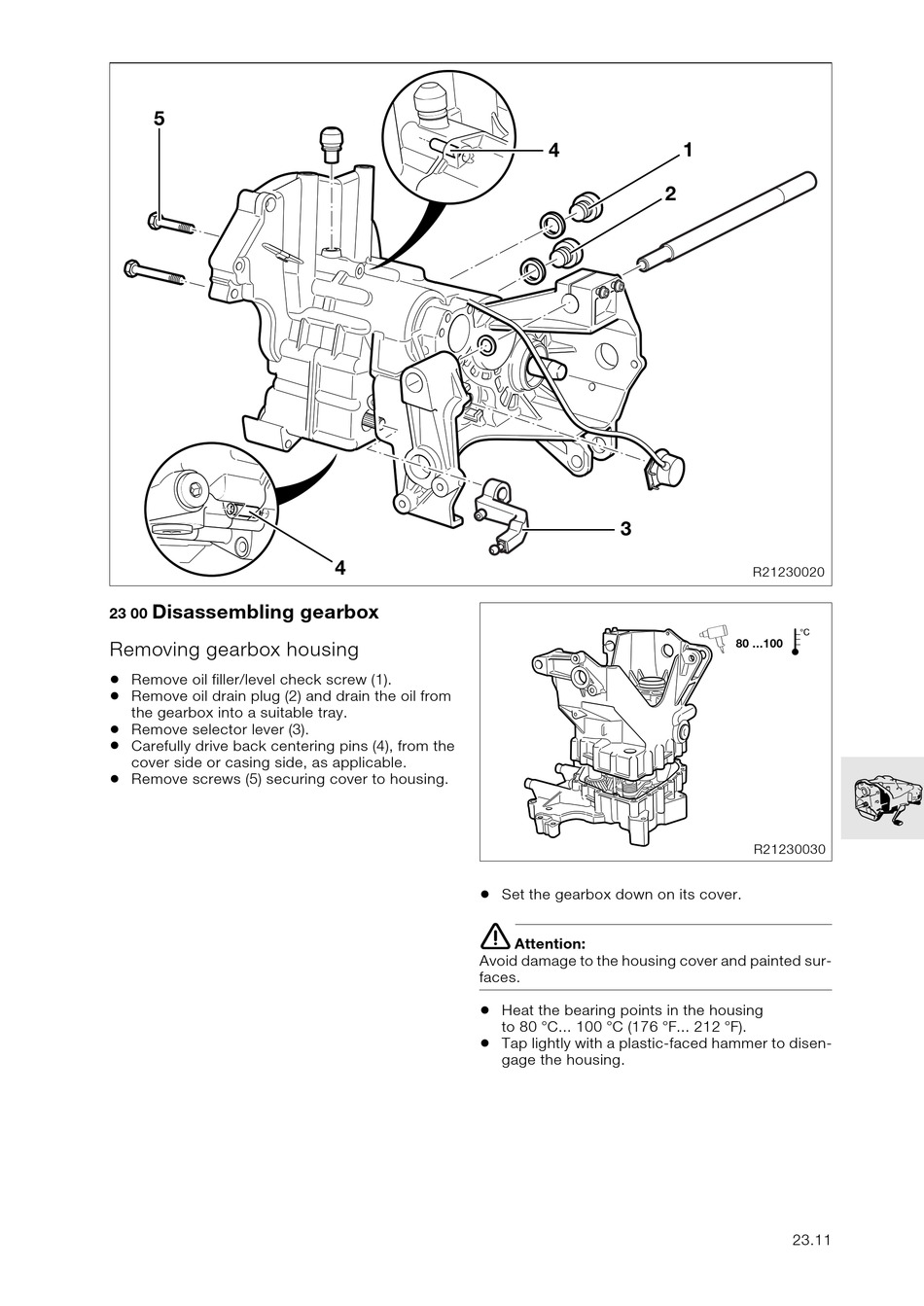

Disassembling gearbox
23 00
Removing gearbox housing
•
Remove oil filler/level check screw (1).
•
Remove oil drain plug (2) and drain the oil from
the gearbox into a suitable tray.
•
Remove selector lever (3).
•
Carefully drive back centering pins (4), from the
cover side or casing side, as applicable.
•
Remove screws (5) securing cover to housing.
4
•
Set the gearbox down on its cover.
e
Avoid damage to the housing cover and painted sur-
faces.
•
Heat the bearing points in the housing
to 80 °C... 100 °C (176 °F... 212 °F).
•
Tap lightly with a plastic-faced hammer to disen-
gage the housing.
4
1
2
3
Attention:
R21230020
h
80 ...100
R21230030
23.11
