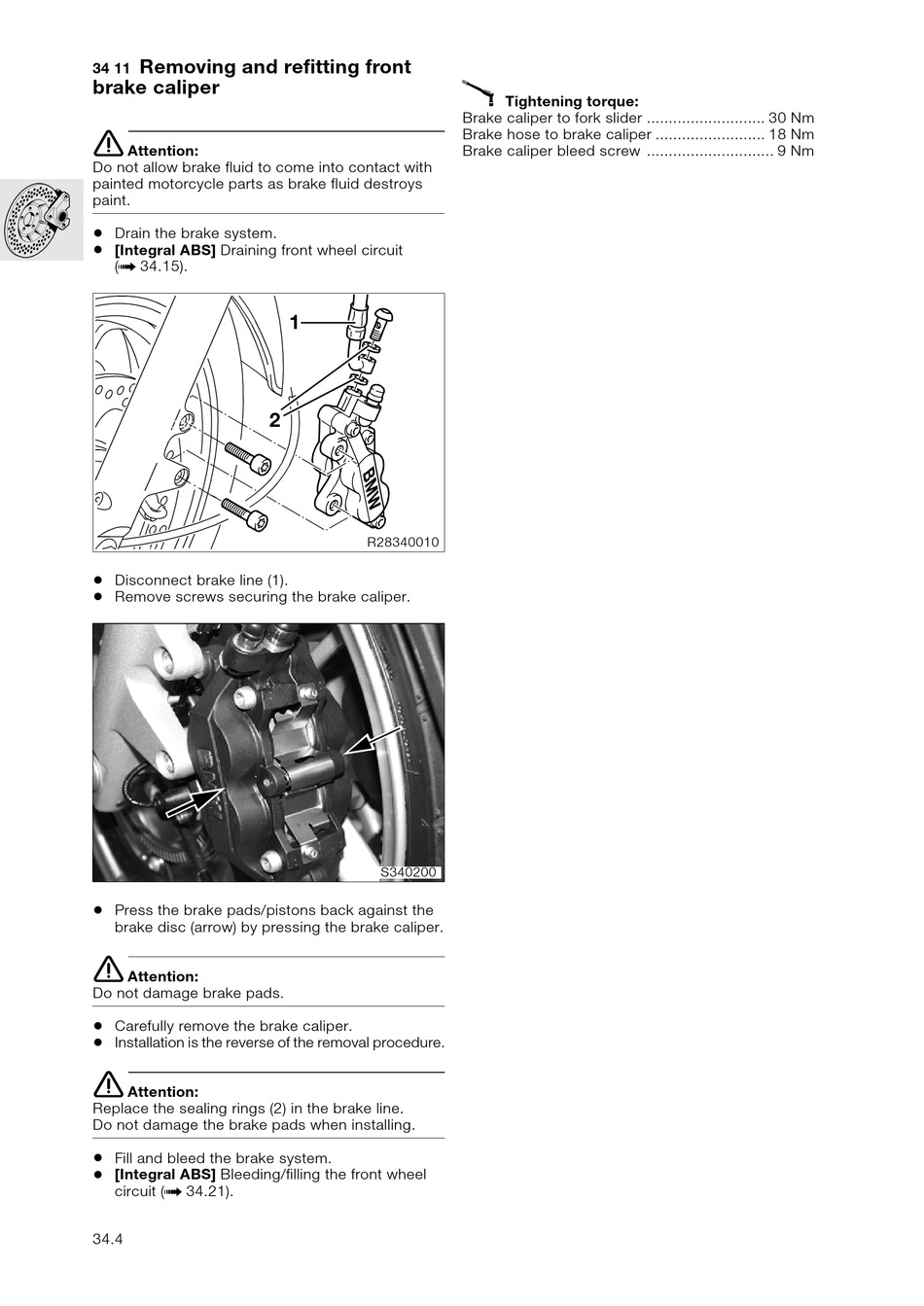

Removing and refitting front
34 11
brake caliper
e
Attention:
Do not allow brake fluid to come into contact with
painted motorcycle parts as brake fluid destroys
paint.
•
Drain the brake system.
•
[Integral ABS] Draining front wheel circuit
( 34.15).
a
d
Suds
•
Disconnect brake line (1).
•
Remove screws securing the brake caliper.
•
Press the brake pads/pistons back against the
brake disc (arrow) by pressing the brake caliper.
e
Attention:
Do not damage brake pads.
•
Carefully remove the brake caliper.
•
Installation is the reverse of the removal procedure.
e
Attention:
Replace the sealing rings (2) in the brake line.
Do not damage the brake pads when installing.
•
Fill and bleed the brake system.
•
[Integral ABS] Bleeding/filling the front wheel
circuit ( 34.21).
a
34.4
1
2
R28340010
S340200
X
Tightening torque:
Brake caliper to fork slider ........................... 30 Nm
Brake hose to brake caliper ......................... 18 Nm
Brake caliper bleed screw ............................. 9 Nm
