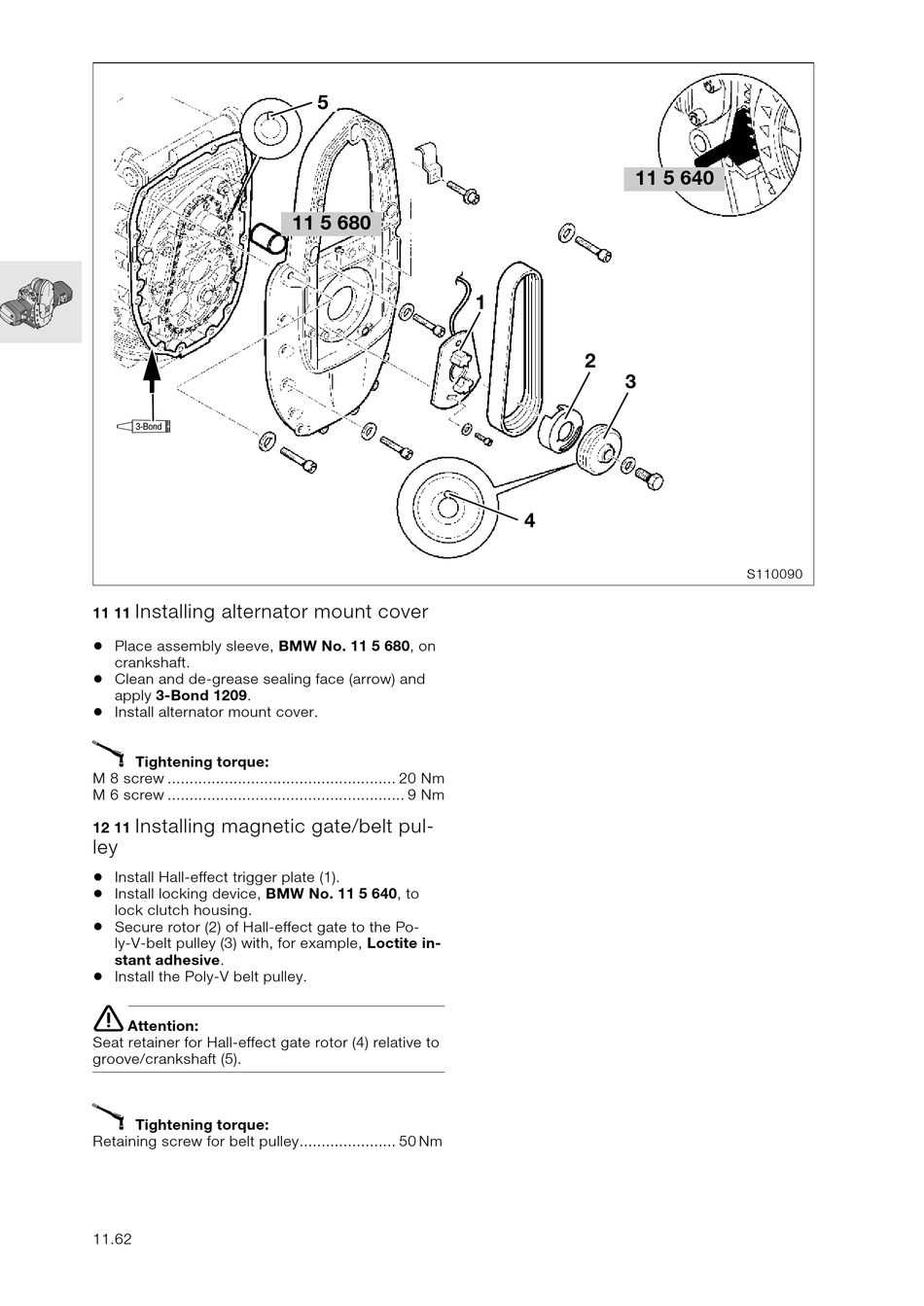

Installing alternator mount cover

11 11
•
Place assembly sleeve, BMW No. 11 5 680, on
crankshaft.
•
Clean and de-grease sealing face (arrow) and
apply 3-Bond 1209.
•
Install alternator mount cover.
X
Tightening torque:
M 8 screw .................................................... 20 Nm
M 6 screw ...................................................... 9 Nm
Installing magnetic gate/belt pul-
12 11
ley
•
Install Hall-effect trigger plate (1).
•
Install locking device, BMW No. 11 5 640, to
lock clutch housing.
•
Secure rotor (2) of Hall-effect gate to the Po-
ly-V-belt pulley (3) with, for example, Loctite in-
stant adhesive.
•
Install the Poly-V belt pulley.
e
Attention:
Seat retainer for Hall-effect gate rotor (4) relative to
groove/crankshaft (5).
X
Tightening torque:
Retaining screw for belt pulley...................... 50 Nm
11.62
5
11 5 680
11 5 640
1
2
3
4
S110090
