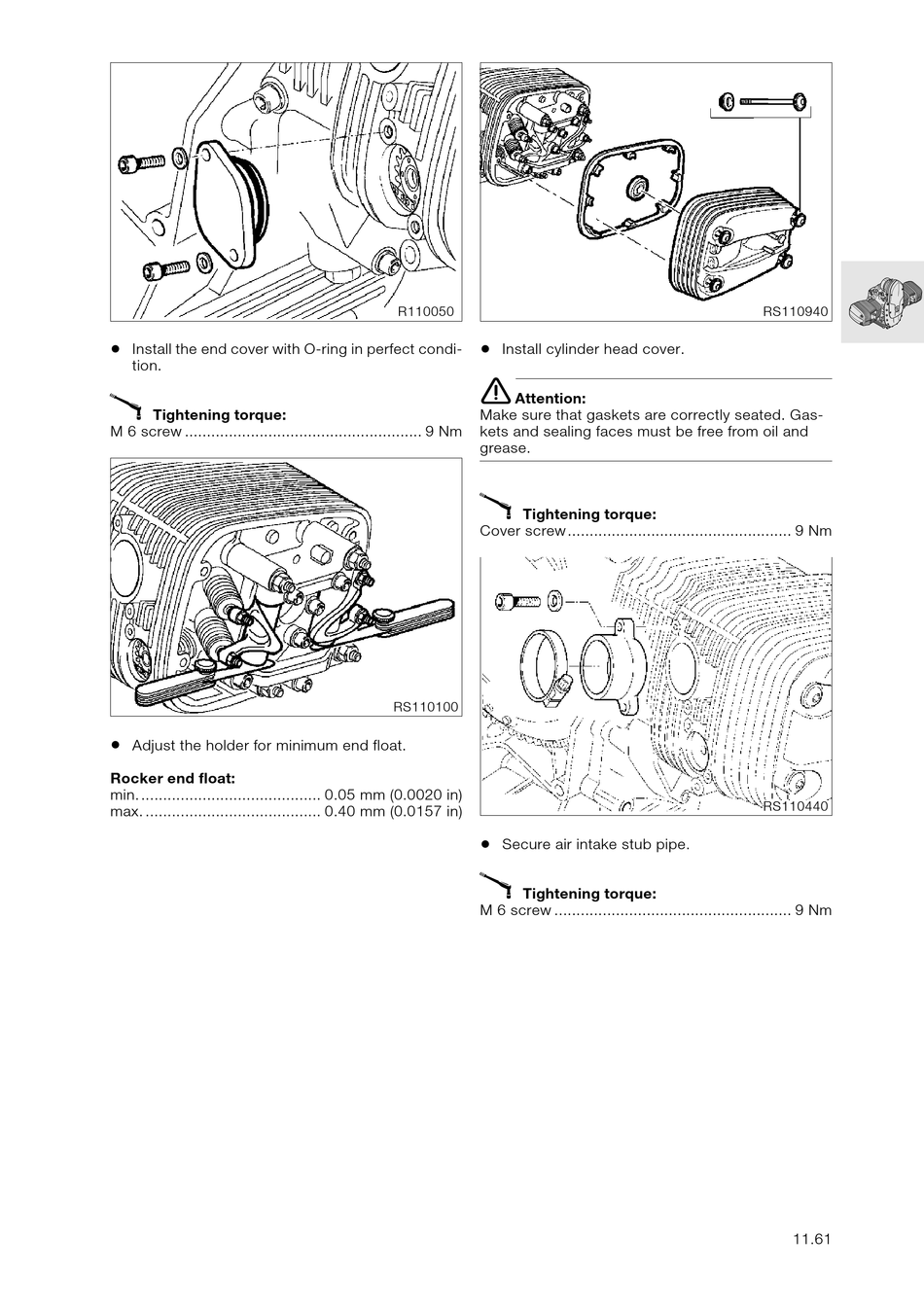

Install the end cover with O-ring in perfect condi-
tion.
X
Tightening torque:
M 6 screw ...................................................... 9 Nm
•
Adjust the holder for minimum end float.
Rocker end float:
min. ......................................... 0.05 mm (0.0020 in)
max. ........................................ 0.40 mm (0.0157 in)
R110050
•
Install cylinder head cover.
e
Attention:
Make sure that gaskets are correctly seated. Gas-
kets and sealing faces must be free from oil and
grease.
X
Tightening torque:
Cover screw ................................................... 9 Nm
RS110100
•
Secure air intake stub pipe.
X
Tightening torque:
M 6 screw ...................................................... 9 Nm
RS110940
RS110440
11.61
