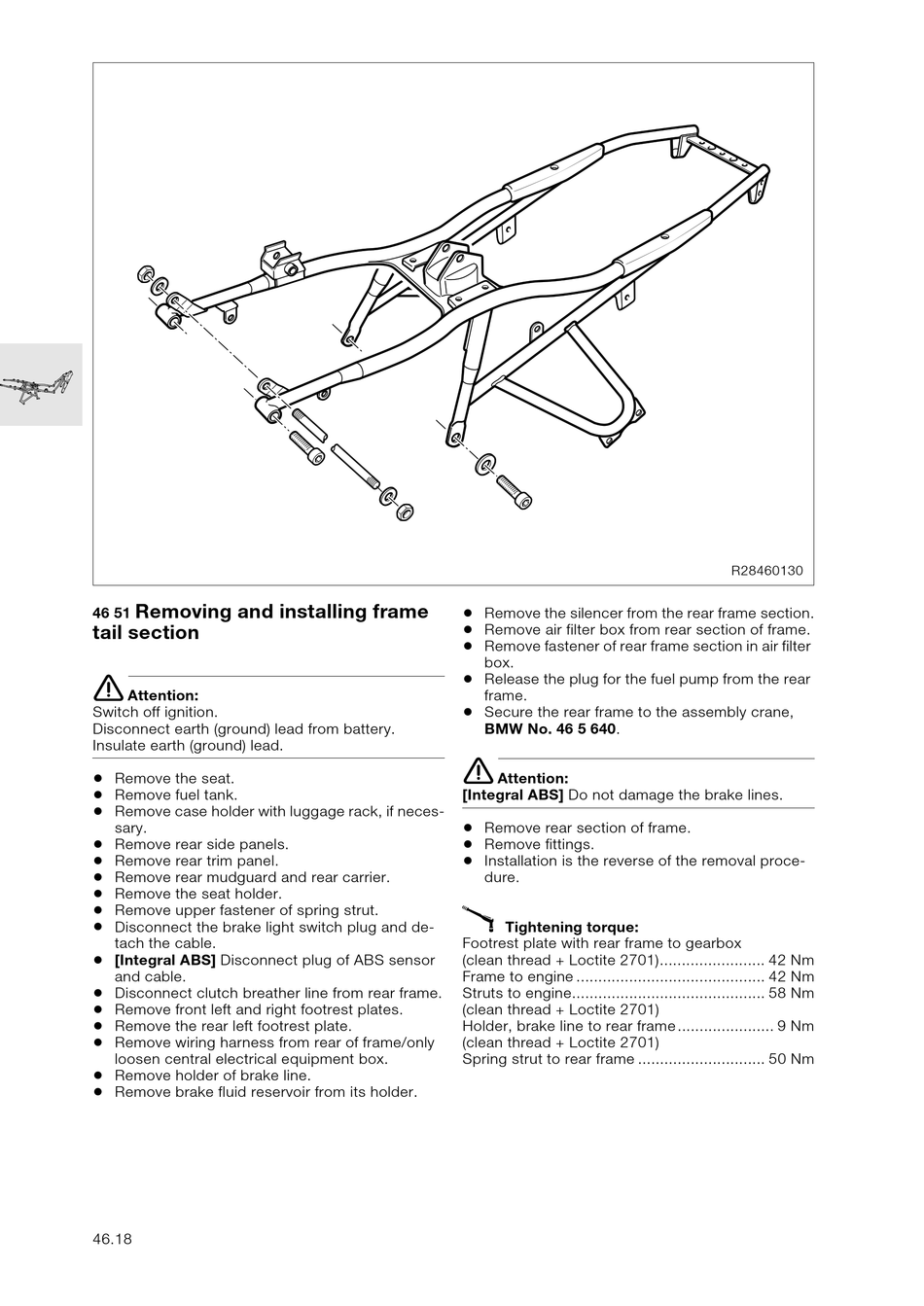

Removing and installing frame
46 51
tail section
e
Attention:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove the seat.
•
Remove fuel tank.
•
Remove case holder with luggage rack, if neces-
sary.
•
Remove rear side panels.
•
Remove rear trim panel.
•
Remove rear mudguard and rear carrier.
•
Remove the seat holder.
•
Remove upper fastener of spring strut.
•
Disconnect the brake light switch plug and de-
tach the cable.
•
[Integral ABS] Disconnect plug of ABS sensor
and cable.
•
Disconnect clutch breather line from rear frame.
•
Remove front left and right footrest plates.
•
Remove the rear left footrest plate.
•
Remove wiring harness from rear of frame/only
loosen central electrical equipment box.
•
Remove holder of brake line.
•
Remove brake fluid reservoir from its holder.
46.18
•
Remove the silencer from the rear frame section.
•
Remove air filter box from rear section of frame.
•
Remove fastener of rear frame section in air filter
box.
•
Release the plug for the fuel pump from the rear
frame.
•
Secure the rear frame to the assembly crane,
BMW No. 46 5 640.
e
Attention:
[Integral ABS] Do not damage the brake lines.
•
Remove rear section of frame.
•
Remove fittings.
•
Installation is the reverse of the removal proce-
dure.
X
Tightening torque:
Footrest plate with rear frame to gearbox
(clean thread + Loctite 2701)........................ 42 Nm
Frame to engine ........................................... 42 Nm
Struts to engine............................................ 58 Nm
(clean thread + Loctite 2701)
Holder, brake line to rear frame ...................... 9 Nm
(clean thread + Loctite 2701)
Spring strut to rear frame ............................. 50 Nm
