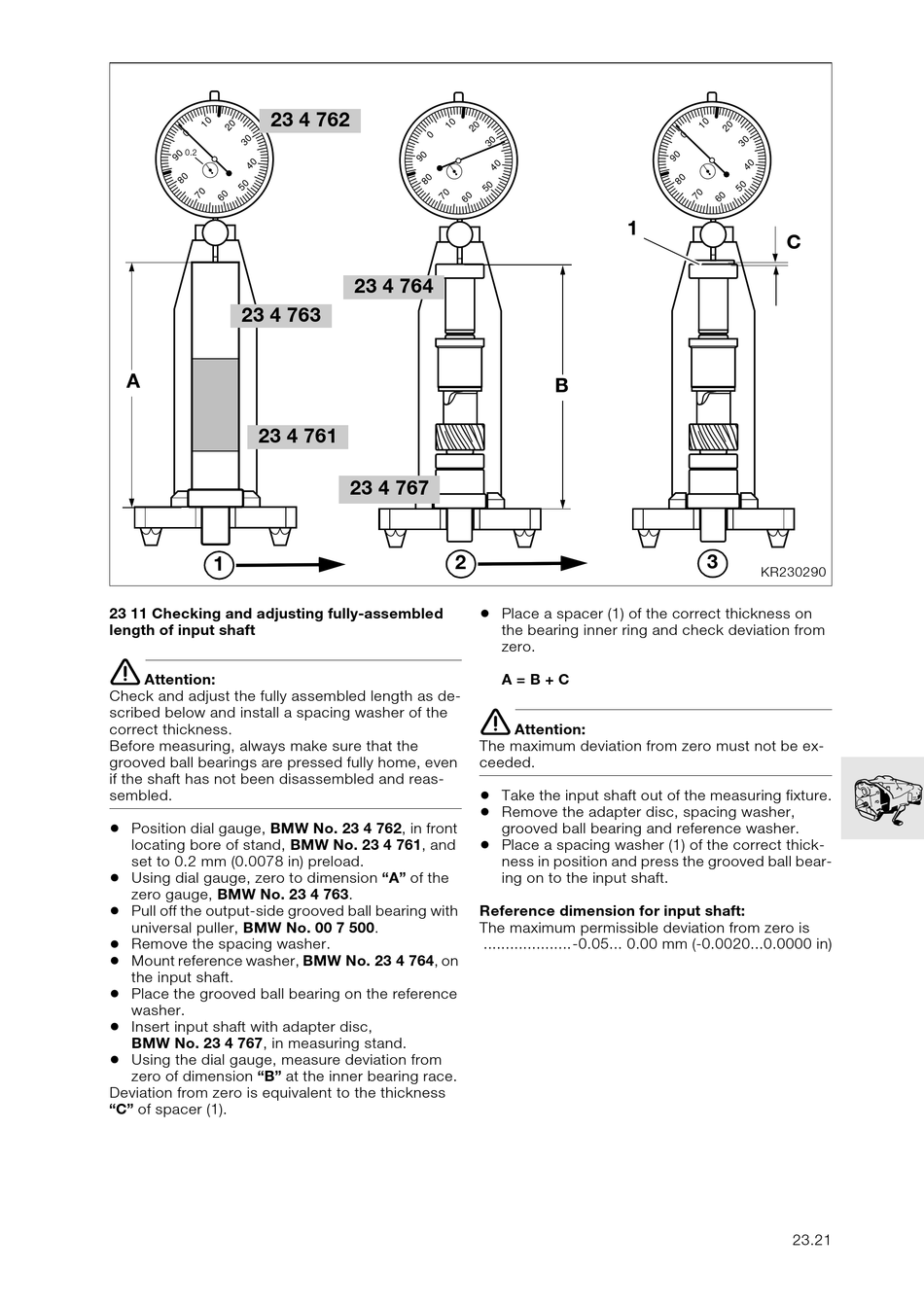

23 11 Checking and adjusting fully-assembled
length of input shaft
e
Attention:
Check and adjust the fully assembled length as de-
scribed below and install a spacing washer of the
correct thickness.
Before measuring, always make sure that the
grooved ball bearings are pressed fully home, even
if the shaft has not been disassembled and reas-
sembled.
Position dial gauge, BMW No. 23 4 762, in front
locating bore of stand, BMW No. 23 4 761, and
set to 0.2 mm (0.0078 in) preload.
Using dial gauge, zero to dimension "A" of the
zero gauge, BMW No. 23 4 763.
Pull off the output-side grooved ball bearing with
universal puller, BMW No. 00 7 500.
Remove the spacing washer.
Mount reference washer, BMW No. 23 4 764, on
the input shaft.
Place the grooved ball bearing on the reference
washer.
Insert input shaft with adapter disc,
BMW No. 23 4 767, in measuring stand.
Using the dial gauge, measure deviation from
zero of dimension "B" at the inner bearing race.
Deviation from zero is equivalent to the thickness
"C" of spacer (1).
23 4 764
23 4 767
2
Place a spacer (1) of the correct thickness on
the bearing inner ring and check deviation from
zero.
A = B + C
e
Attention:
The maximum deviation from zero must not be ex-
ceeded.
Take the input shaft out of the measuring fixture.
Remove the adapter disc, spacing washer,
grooved ball bearing and reference washer.
Place a spacing washer (1) of the correct thick-
ness in position and press the grooved ball bear-
ing on to the input shaft.
Reference dimension for input shaft:
The maximum permissible deviation from zero is
....................-0.05... 0.00 mm (-0.0020...0.0000 in)
1
B
3
C
KR230290
23.21
