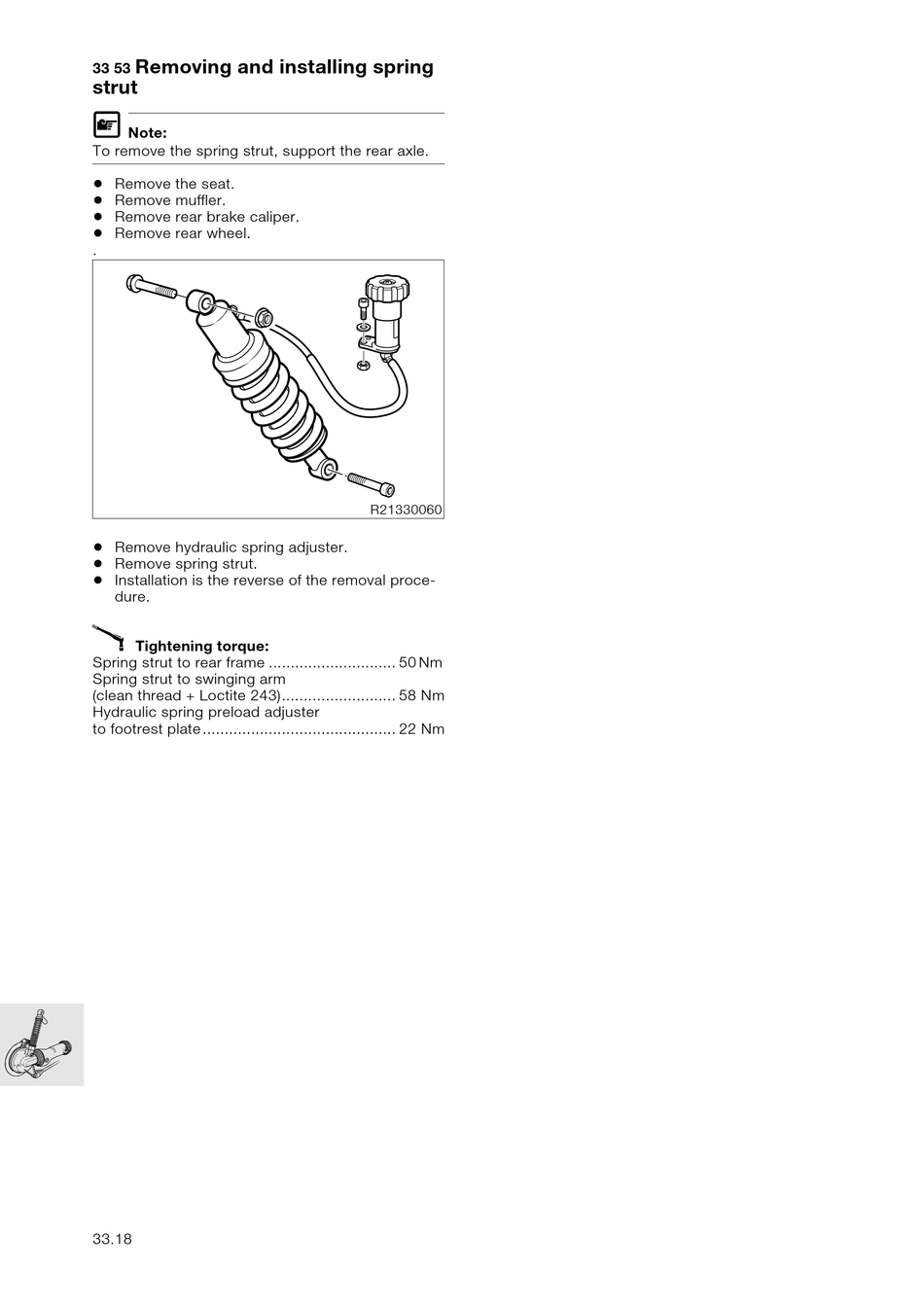

Removing and installing spring
33 53
strut
L
Note:
To remove the spring strut, support the rear axle.
•
Remove the seat.
•
Remove muffler.
•
Remove rear brake caliper.
•
Remove rear wheel.
.
•
Remove hydraulic spring adjuster.
•
Remove spring strut.
•
Installation is the reverse of the removal proce-
dure.
X
Tightening torque:
Spring strut to rear frame ............................. 50 Nm
Spring strut to swinging arm
(clean thread + Loctite 243).......................... 58 Nm
Hydraulic spring preload adjuster
to footrest plate ............................................ 22 Nm
33.18
R21330060
