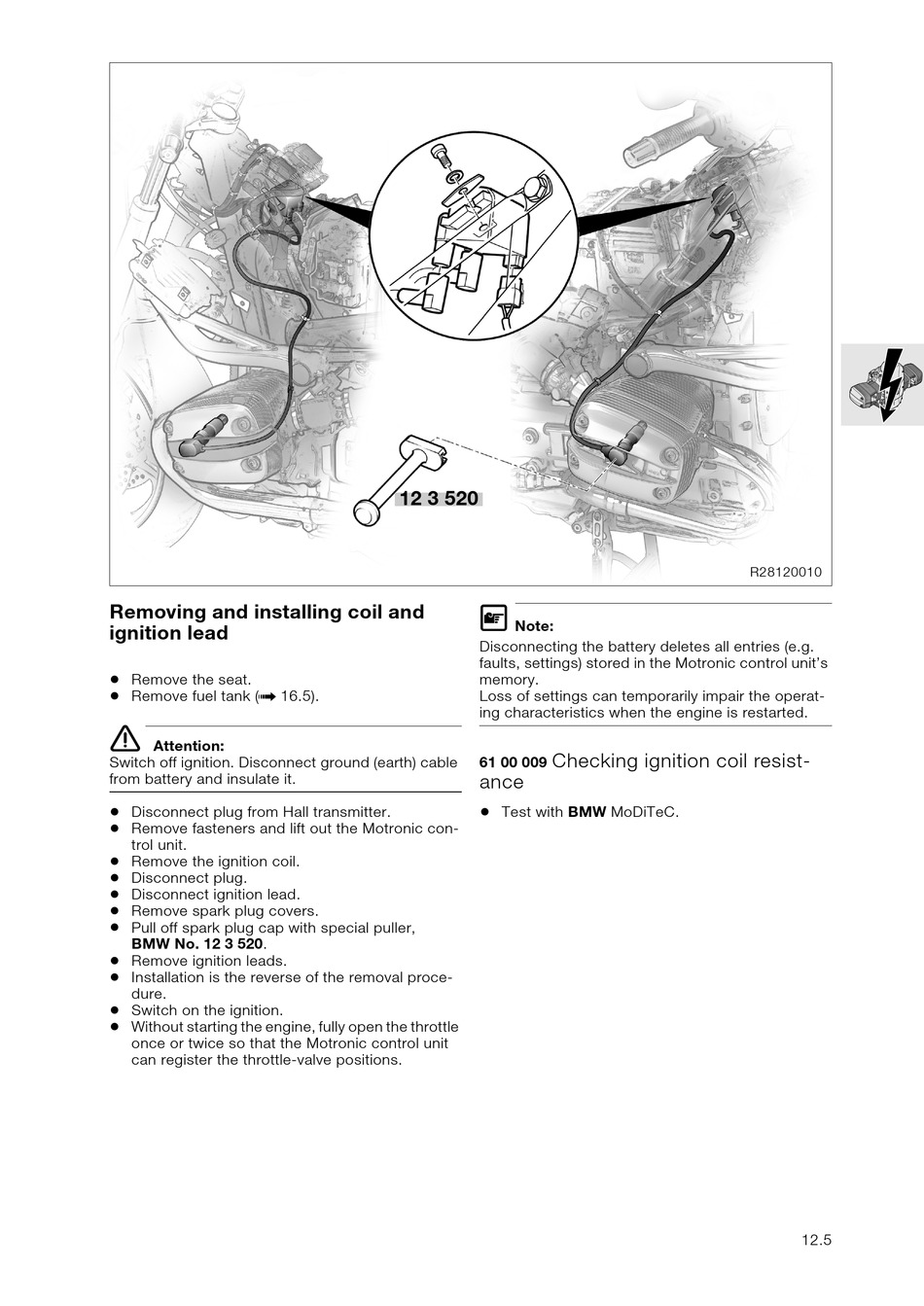

Removing and installing coil and
ignition lead
•
Remove the seat.
•
Remove fuel tank (
16.5).
a
e
Attention:
Switch off ignition. Disconnect ground (earth) cable
from battery and insulate it.
•
Disconnect plug from Hall transmitter.
•
Remove fasteners and lift out the Motronic con-
trol unit.
•
Remove the ignition coil.
•
Disconnect plug.
•
Disconnect ignition lead.
•
Remove spark plug covers.
•
Pull off spark plug cap with special puller,
BMW No. 12 3 520.
•
Remove ignition leads.
•
Installation is the reverse of the removal proce-
dure.
•
Switch on the ignition.
•
Without starting the engine, fully open the throttle
once or twice so that the Motronic control unit
can register the throttle-valve positions.
12 3 520
L
Note:
Disconnecting the battery deletes all entries (e.g.
faults, settings) stored in the Motronic control unit's
memory.
Loss of settings can temporarily impair the operat-
ing characteristics when the engine is restarted.
Checking ignition coil resist-
61 00 009
ance
•
Test with BMW MoDiTeC.
R28120010
12.5
