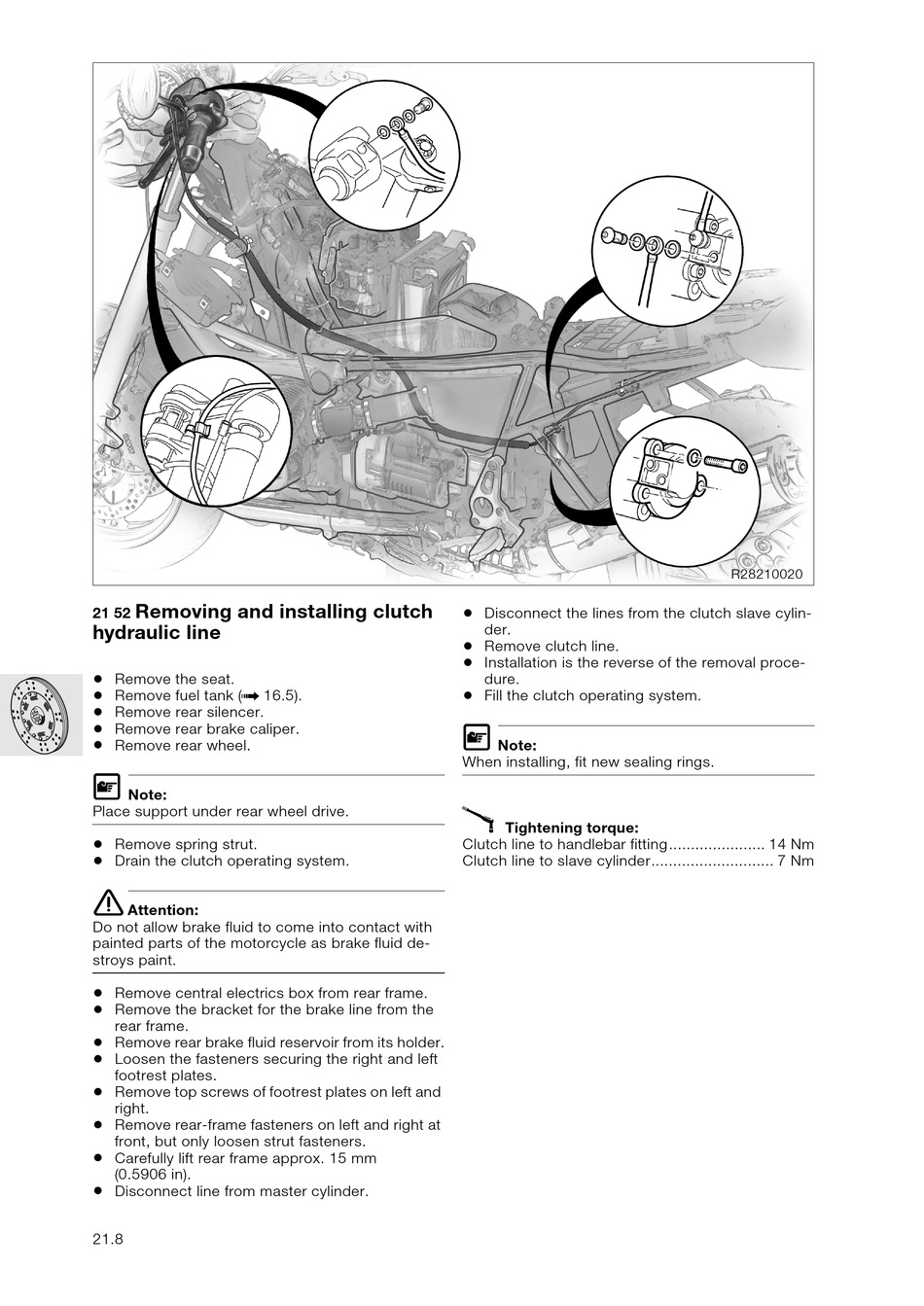

Removing and installing clutch
21 52
hydraulic line
•
Remove the seat.
•
Remove fuel tank ( 16.5).
a
•
Remove rear silencer.
•
Remove rear brake caliper.
•
Remove rear wheel.
L
Note:
Place support under rear wheel drive.
•
Remove spring strut.
•
Drain the clutch operating system.
e
Attention:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle as brake fluid de-
stroys paint.
•
Remove central electrics box from rear frame.
•
Remove the bracket for the brake line from the
rear frame.
•
Remove rear brake fluid reservoir from its holder.
•
Loosen the fasteners securing the right and left
footrest plates.
•
Remove top screws of footrest plates on left and
right.
•
Remove rear-frame fasteners on left and right at
front, but only loosen strut fasteners.
•
Carefully lift rear frame approx. 15 mm
(0.5906 in).
•
Disconnect line from master cylinder.
21.8
•
Disconnect the lines from the clutch slave cylin-
der.
•
Remove clutch line.
•
Installation is the reverse of the removal proce-
dure.
•
Fill the clutch operating system.
L
Note:
When installing, fit new sealing rings.
X
Tightening torque:
Clutch line to handlebar fitting...................... 14 Nm
Clutch line to slave cylinder............................ 7 Nm
R28210020
