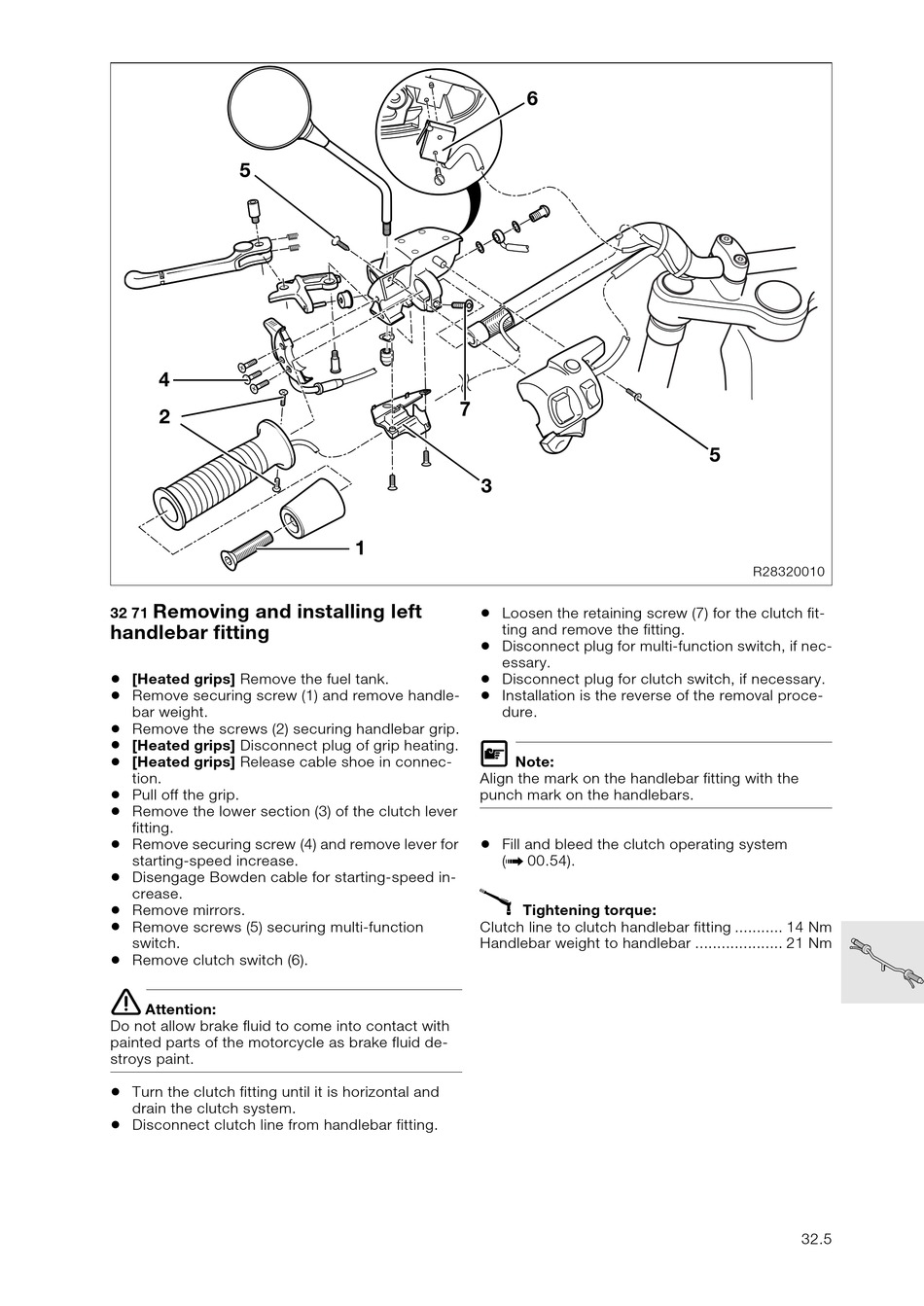

Removing and installing left
32 71
handlebar fitting
•
[Heated grips] Remove the fuel tank.
•
Remove securing screw (1) and remove handle-
bar weight.
•
Remove the screws (2) securing handlebar grip.
•
[Heated grips] Disconnect plug of grip heating.
•
[Heated grips] Release cable shoe in connec-
tion.
•
Pull off the grip.
•
Remove the lower section (3) of the clutch lever
fitting.
•
Remove securing screw (4) and remove lever for
starting-speed increase.
•
Disengage Bowden cable for starting-speed in-
crease.
•
Remove mirrors.
•
Remove screws (5) securing multi-function
switch.
•
Remove clutch switch (6).
e
Attention:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle as brake fluid de-
stroys paint.
•
Turn the clutch fitting until it is horizontal and
drain the clutch system.
•
Disconnect clutch line from handlebar fitting.
6
7
3
1
•
Loosen the retaining screw (7) for the clutch fit-
ting and remove the fitting.
•
Disconnect plug for multi-function switch, if nec-
essary.
•
Disconnect plug for clutch switch, if necessary.
•
Installation is the reverse of the removal proce-
dure.
L
Note:
Align the mark on the handlebar fitting with the
punch mark on the handlebars.
•
Fill and bleed the clutch operating system
( 00.54).
a
X
Tightening torque:
Clutch line to clutch handlebar fitting ........... 14 Nm
Handlebar weight to handlebar .................... 21 Nm
