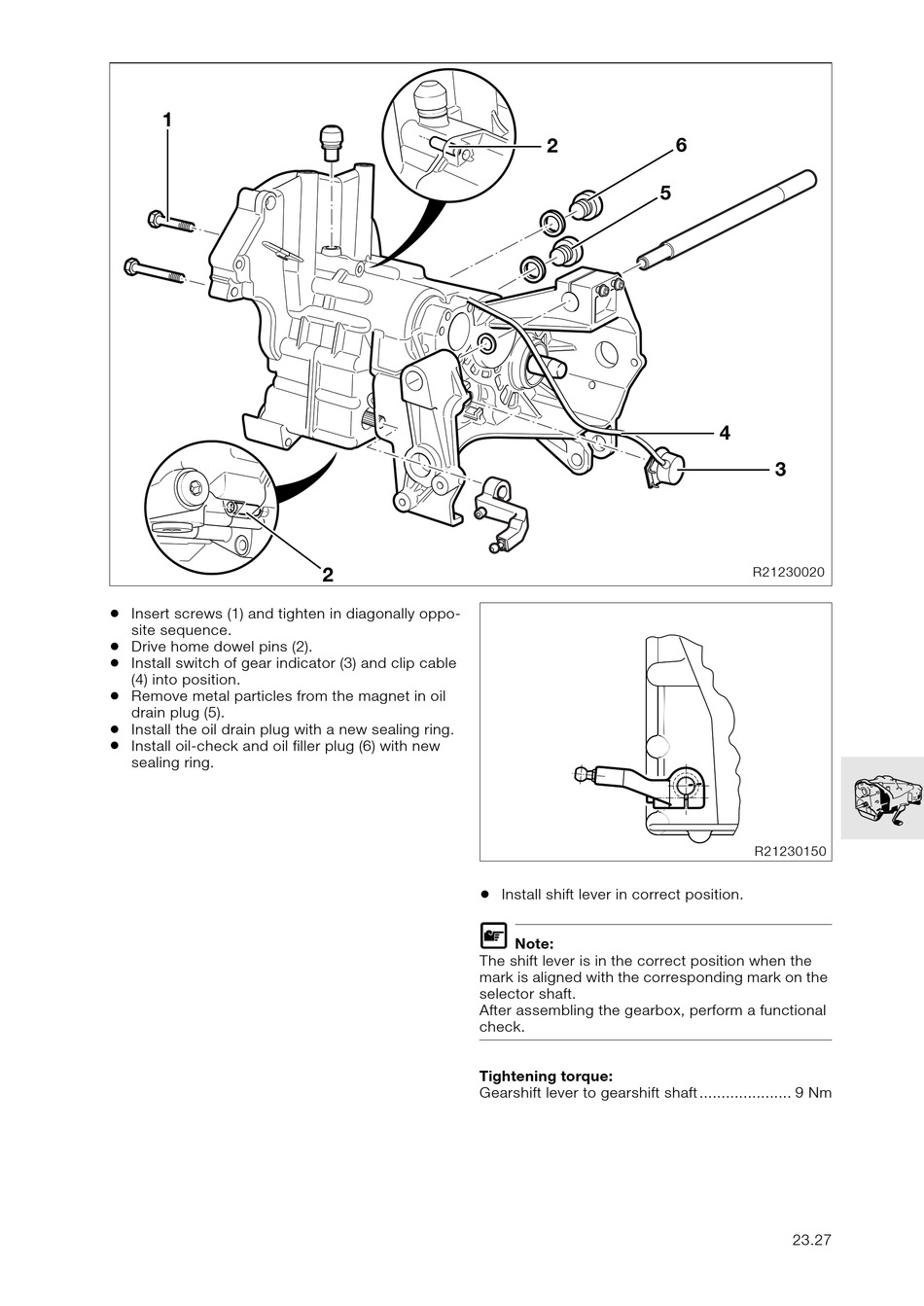

Insert screws (1) and tighten in diagonally oppo-
site sequence.
•
Drive home dowel pins (2).
•
Install switch of gear indicator (3) and clip cable
(4) into position.
•
Remove metal particles from the magnet in oil
drain plug (5).
•
Install the oil drain plug with a new sealing ring.
•
Install oil-check and oil filler plug (6) with new
sealing ring.
2
•
L
The shift lever is in the correct position when the
mark is aligned with the corresponding mark on the
selector shaft.
After assembling the gearbox, perform a functional
check.
Tightening torque:
Gearshift lever to gearshift shaft ..................... 9 Nm
6
2
5
Install shift lever in correct position.
Note:
4
3
R21230020
R21230150
