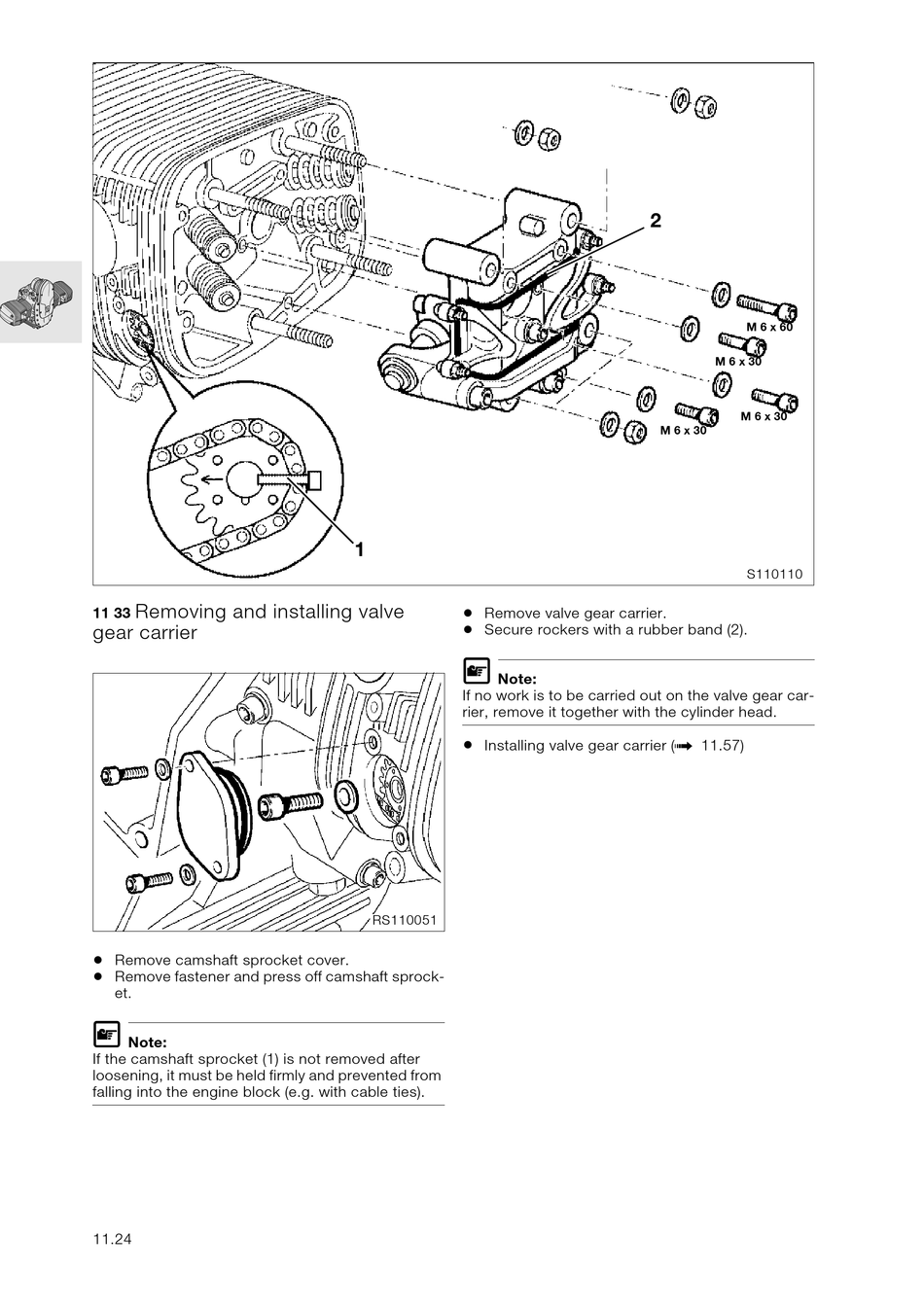

Removing and installing valve
11 33
gear carrier
•
Remove camshaft sprocket cover.
•
Remove fastener and press off camshaft sprock-
et.
L
Note:
If the camshaft sprocket (1) is not removed after
loosening, it must be held firmly and prevented from
falling into the engine block (e.g. with cable ties).
11.24
1
•
Remove valve gear carrier.
•
Secure rockers with a rubber band (2).
L
Note:
If no work is to be carried out on the valve gear car-
rier, remove it together with the cylinder head.
•
Installing valve gear carrier (
RS110051
2
M 6 x 60
M 6 x 30
M 6 x 30
M 6 x 30
S110110
11.57)
