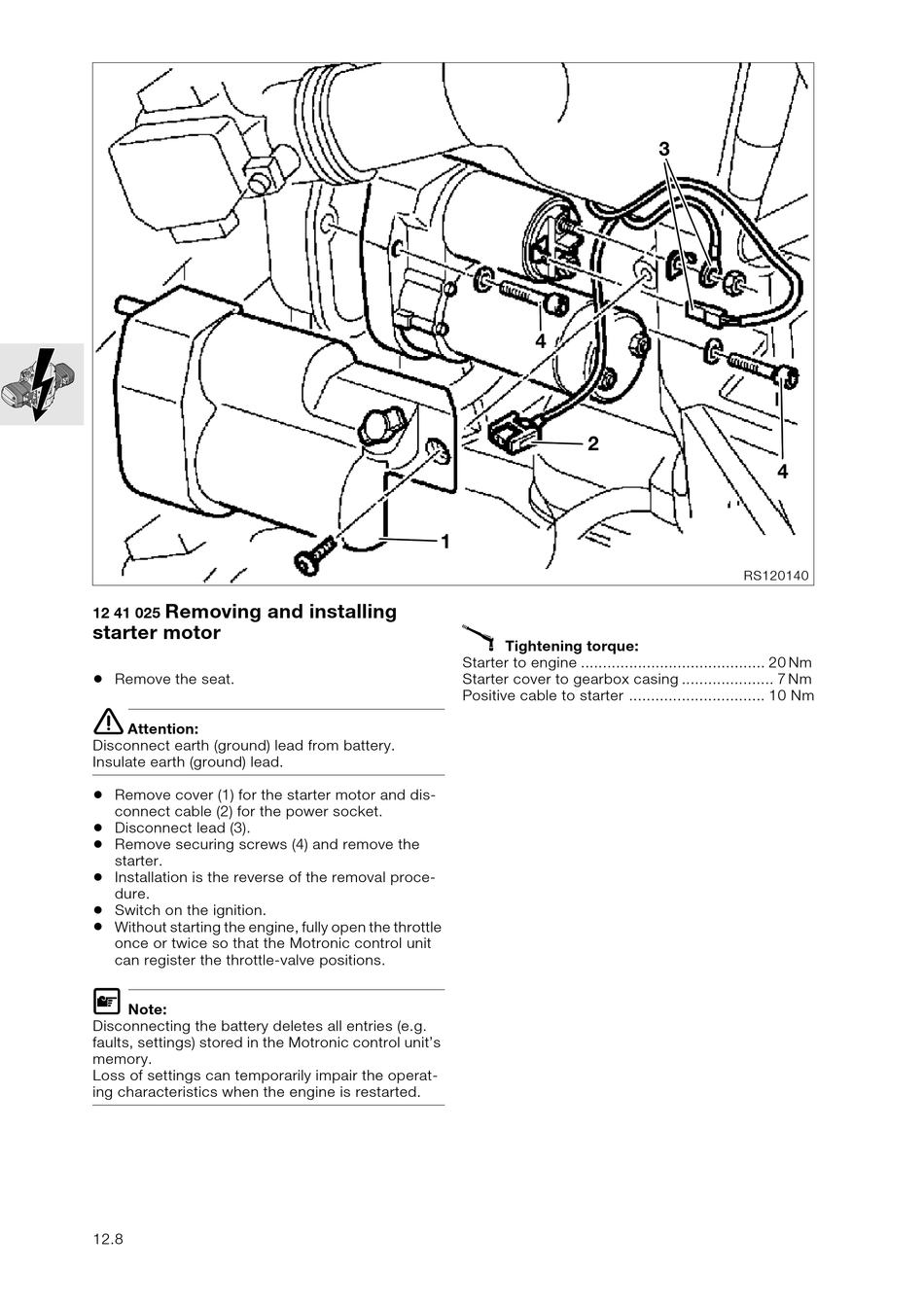

Removing and installing
12 41 025
starter motor
•
Remove the seat.
e
Attention:
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove cover (1) for the starter motor and dis-
connect cable (2) for the power socket.
•
Disconnect lead (3).
•
Remove securing screws (4) and remove the
starter.
•
Installation is the reverse of the removal proce-
dure.
•
Switch on the ignition.
•
Without starting the engine, fully open the throttle
once or twice so that the Motronic control unit
can register the throttle-valve positions.
L
Note:
Disconnecting the battery deletes all entries (e.g.
faults, settings) stored in the Motronic control unit's
memory.
Loss of settings can temporarily impair the operat-
ing characteristics when the engine is restarted.
12.8
4
2
1
X
Tightening torque:
Starter to engine .......................................... 20 Nm
Starter cover to gearbox casing ..................... 7 Nm
Positive cable to starter ............................... 10 Nm
3
4
RS120140
