Configuring Settings from a Web Browser
Select [Basic Settings] on the menu on the left side of the screen ((1) in the following figure), and then
select the setting item in the menu that opens.
For details on the setting items, refer to the [Help] ((2) in the following figure).
The settings must be temporarily recorded on this product, so, after changing the settings on each page, be
sure to click [Submit] ((3) in the following figure).
After you have configured all the settings, save them and restart this product to enable the settings.
Click [Save & Reboot] ((4) in the following figure) on the menu on the left side of the screen.

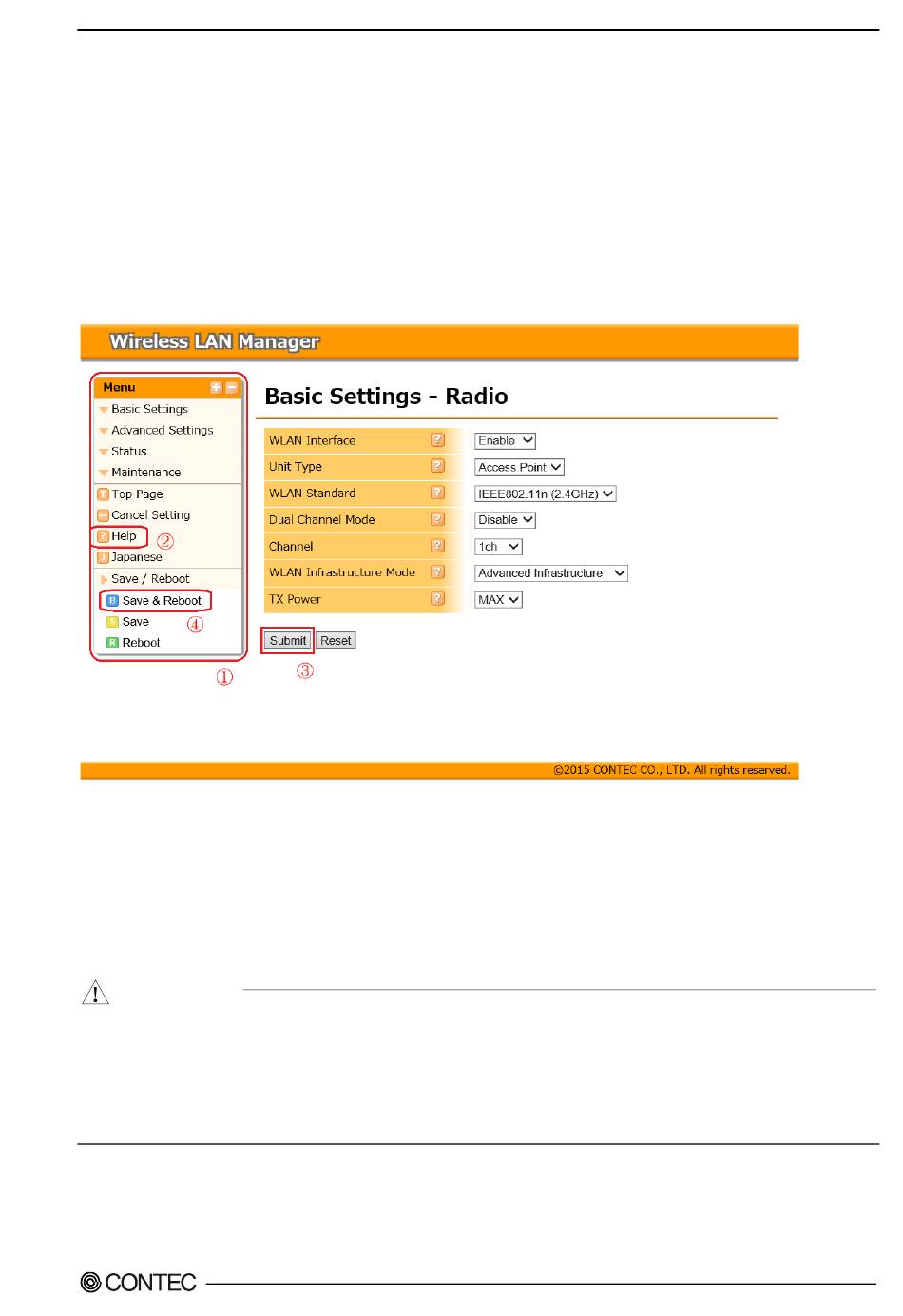

Figure 3.2. Configuration web page example
There will be no problem if you just save the settings now but reboot the product later when necessary. In
this case, saving the settings does not actually change the settings of the product. Therefore, make sure
to reboot the product later.
*
For explanations of functions and setting instructions, see the manual available from the CONTEC
website or see help information.
CAUTION
It takes approximately 5 - 10 seconds to save settings (writing to internal flash memory). During that
period, the LEDs for POWER, LAN and WLAN at the front part of the main unit blink
simultaneously. Do not reboot or turn off the product until the screen indicates the completion of the
saving process. The setup file data and firmware data may be damaged and the product may not
operate properly if it is rebooted or switched off during the saving process.
FXE3000 Series
3. Connection to Devices and Setup Methods
23
