7
dPMR™ OPERATION
Transmitting a call

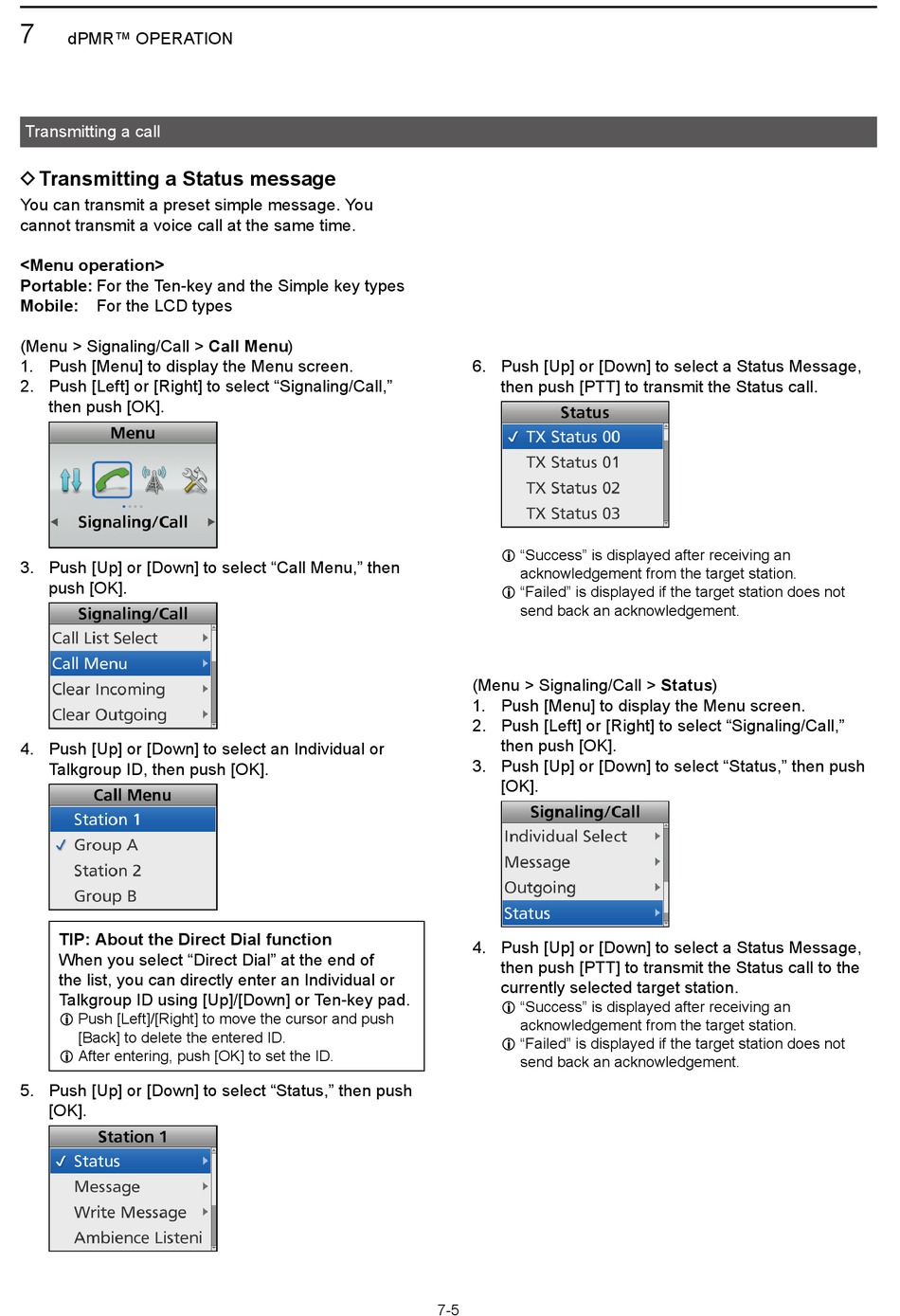

D Transmitting a Status message
You can transmit a preset simple message� You
cannot transmit a voice call at the same time�
<Menu operation>
Portable: For the Ten-key and the Simple key types
Mobile: For the LCD types
(Menu > Signaling/Call > Call Menu)
1� Push [Menu] to display the Menu screen�
2� Push [Left] or [Right] to select "Signaling/Call,"
then push [OK]�
3� Push [Up] or [Down] to select "Call Menu," then
push [OK]�
4� Push [Up] or [Down] to select an Individual or
Talkgroup ID, then push [OK]�
TIP: About the Direct Dial function
When you select "Direct Dial" at the end of
the list, you can directly enter an Individual or
Talkgroup ID using [Up]/[Down] or Ten-key pad�
L Push [Left]/[Right] to move the cursor and push
[Back] to delete the entered ID�
L After entering, push [OK] to set the ID�
5� Push [Up] or [Down] to select "Status," then push
[OK]�
6� Push [Up] or [Down] to select a Status Message,
then push [PTT] to transmit the Status call�
L "Success" is displayed after receiving an
acknowledgement from the target station�
L "Failed" is displayed if the target station does not
send back an acknowledgement�
(Menu > Signaling/Call > Status)
1� Push [Menu] to display the Menu screen�
2� Push [Left] or [Right] to select "Signaling/Call,"
then push [OK]�
3� Push [Up] or [Down] to select "Status," then push
[OK]�
4� Push [Up] or [Down] to select a Status Message,
then push [PTT] to transmit the Status call to the
currently selected target station�
L "Success" is displayed after receiving an
acknowledgement from the target station�
L "Failed" is displayed if the target station does not
send back an acknowledgement�
7-5
