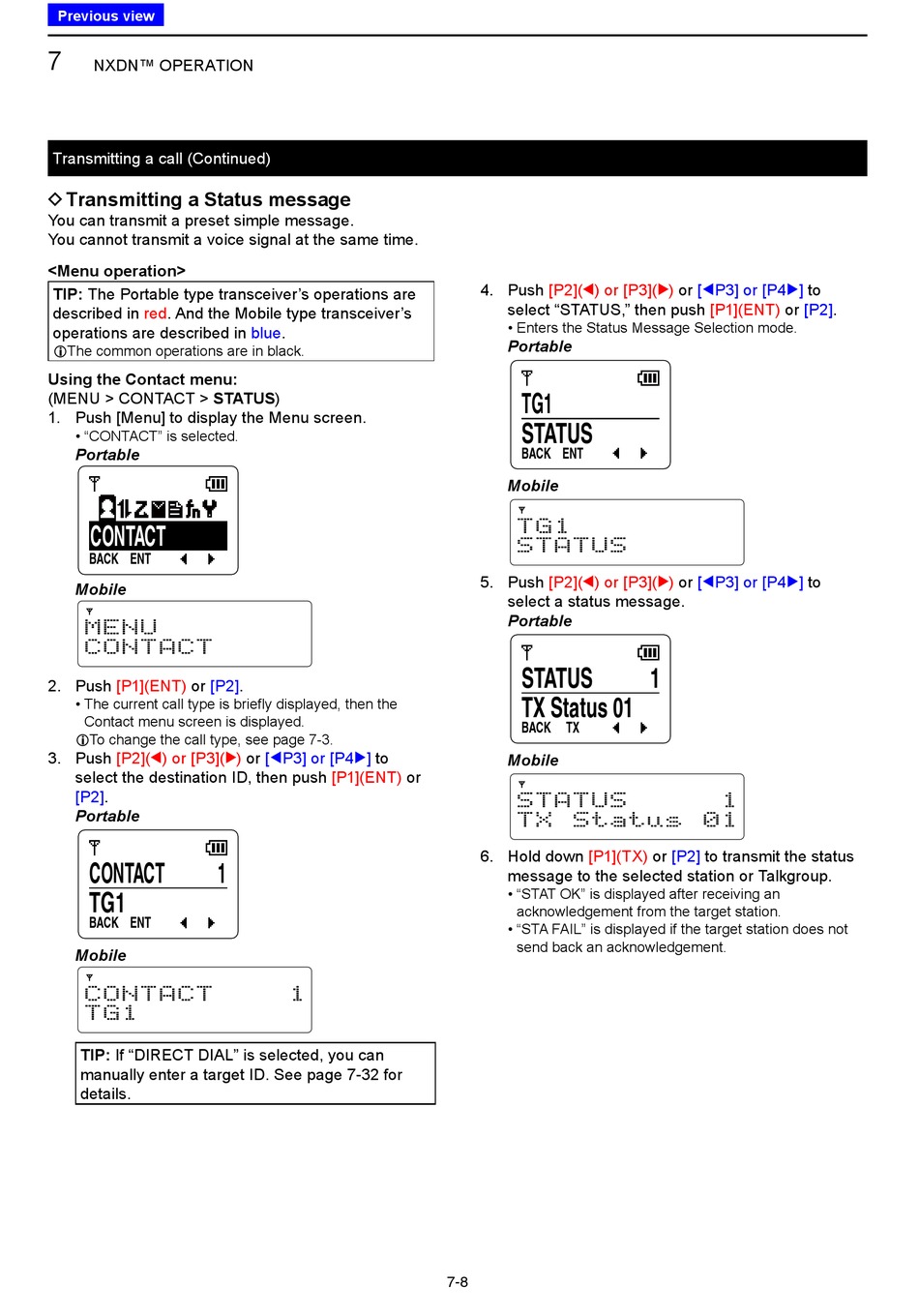

NXDN™ OPERATION
Transmitting a call (Continued)
D Transmitting a Status message
You can transmit a preset simple message.
You cannot transmit a voice signal at the same time.
<Menu operation>
TIP: The Portable type transceiver's operations are
described in red. And the Mobile type transceiver's
operations are described in blue.
LThe common operations are in black.
Using the Contact menu:
(MENU > CONTACT > STATUS)
1. Push [Menu] to display the Menu screen.
• "CONTACT" is selected.
Portable
CONTACT
BACK
ENT
Mobile
M E N U
C O N T A C T
2. Push
[P1](ENT)
or [P2].
• The current call type is briefly displayed, then the
Contact menu screen is displayed.
LTo change the call type, see page 7-3.
3. Push
[P2](Ω) or [P3](≈)
select the destination ID, then push
[P2].
Portable
CONTACT
1
TG1
BACK
ENT
Mobile
C O N T A C T
T G 1
TIP: If "DIRECT DIAL" is selected, you can
manually enter a target ID. See page 7-32 for
details.
or
[ΩP3] or [P4≈]
to
[P1](ENT)
or
1
4. Push
[P2](Ω) or [P3](≈)
select "STATUS," then push
• Enters the Status Message Selection mode.
Portable
TG1
STATUS
BACK
ENT
Mobile
T G 1
S T A T U S
5. Push
[P2](Ω) or [P3](≈)
select a status message.
Portable
STATUS
TX Status 01
BACK
TX
Mobile
S T A T U S
T X
S t a t u s
6. Hold down
[P1](TX)
message to the selected station or Talkgroup.
• "STAT OK" is displayed after receiving an
acknowledgement from the target station.
• "STA FAIL" is displayed if the target station does not
send back an acknowledgement.
7-8
or
[ΩP3] or [P4≈]
to
[P1](ENT)
or [P2].
or
[ΩP3] or [P4≈]
to
1
1
0 1
or
[P2]
to transmit the status
