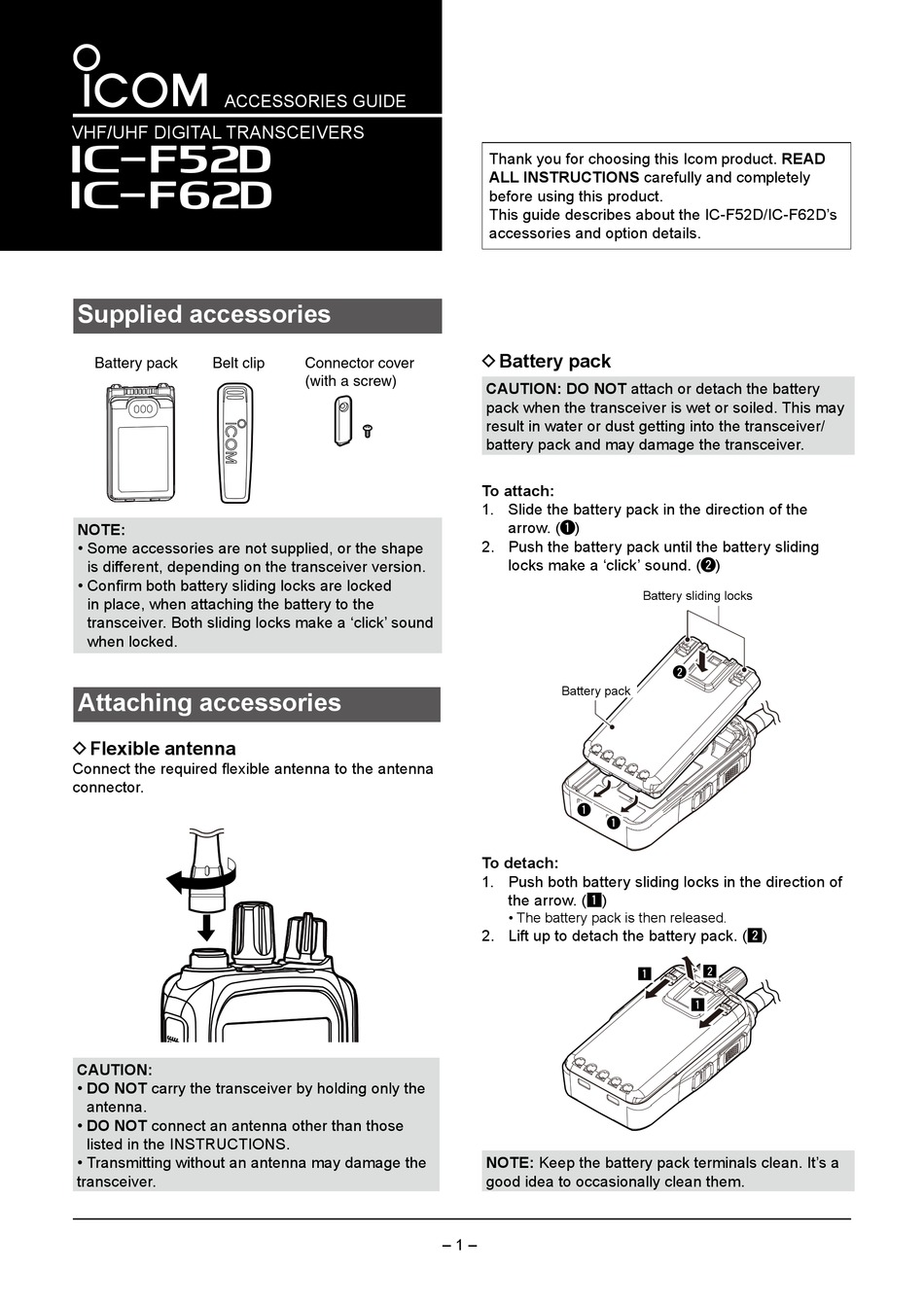

Icom IC-F52D Accessories Manual

ACCESSORIES GUIDE
VHF/UHF DIGITAL TRANSCEIVERS
Iç-F52D
Iç-F62D
Supplied accessories
Battery pack Belt clip
NOTE:
• Some accessories are not supplied, or the shape
is different, depending on the transceiver version.
•  C onfirmbothbatteryslidinglocksarelocked
in place, when attaching the battery to the
transceiver. Both sliding locks make a 'click' sound
when locked.
Attaching accessories
D Flexible antenna
Connecttherequiredflexibleantennatotheantenna
connector.
CAUTION:
• DO NOT carry the transceiver by holding only the
antenna.
• DO NOT connect an antenna other than those
listed in the INSTRUCTIONS.
• Transmitting without an antenna may damage the
transceiver.
Connector cover
(with a screw)
– 1 –
Thank you for choosing this Icom product. READ
ALL INSTRUCTIONS carefully and completely
before using this product.
This guide describes about the IC-F52D/IC-F62D's
accessories and option details.
D Battery pack
CAUTION: DO NOT attach or detach the battery
pack when the transceiver is wet or soiled. This may
result in water or dust getting into the transceiver/
battery pack and may damage the transceiver.
To attach:
1. Slide the battery pack in the direction of the
arrow. (q)
2. Push the battery pack until the battery sliding
locks make a 'click' sound. (w)
Battery sliding locks
Battery pack
q
q
To detach:
1. Push both battery sliding locks in the direction of
the arrow. (z)
• The battery pack is then released.
2. Lift up to detach the battery pack. (x)
z
NOTE: Keep the battery pack terminals clean. It's a
good idea to occasionally clean them.
w
x
z
