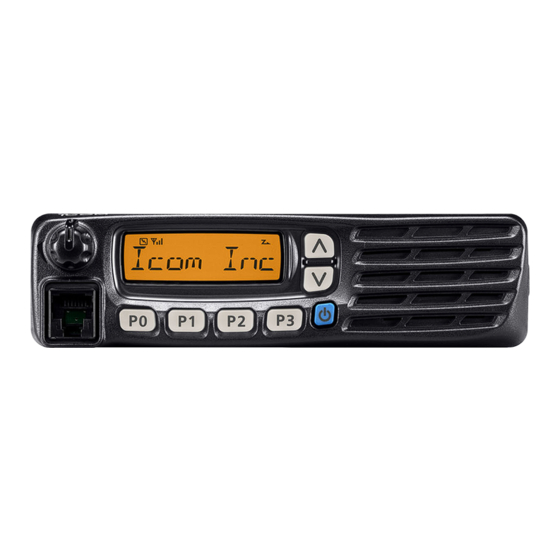

INSTRUCTION MANUAL
VHF MOBILE TRANSCEIVERS
iF5020
UHF MOBILE TRANSCEIVERS
iF6020
Series
Series

Advertisement

Table of Contents
loading

Related Manuals for Icom IC-F5020 Series

Summary of Contents for Icom IC-F5020 Series

  • Page 1 INSTRUCTION MANUAL VHF MOBILE TRANSCEIVERS iF5020 Series UHF MOBILE TRANSCEIVERS iF6020 Series...

  • Page 2: Explicit Definitions

    DEFINITION Personal injury, fire hazard or electric RWARNING! shock may occur. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Equipment damage may occur. CAUTION Germany, France, Spain, Russia, Australia, New Zealand, and/or other If disregarded, inconvenience only.

  • Page 3: Precautions

    DO NOT • The use of Icom transceiver with any equipment that is operate or place the transceiver in areas with not manufactured or approved by Icom. temperatures below –30°C (–22°F) or above +60°C (+140°F),...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT ..................i 3 CONNECTION AND MAINTENANCE ........14 EXPLICIT DEFINITIONS ..............i ■ Supplied Accessories ............15 FCC INFORMATION ................. i ■ Mounting the transceiver ............15 PRECAUTIONS ................ii ■ Antenna .................16 ■ Fuse replacement ..............16 1 PANEL DESCRIPTION ...............1 ■...

  • Page 5: Panel Description

    PANEL DESCRIPTION ■ Front panel Function display (p. 2) Speaker q AF VOLUME CONTROL KNOB [VOL] t MICROPHONE CONNECTOR Rotate the knob to adjust the desired audio output level. Connect the supplied or optional microphone. • Minimum audio level is pre-set. (p. 11) NEVER connect non-specified microphones.

  • Page 6: Function Display

    PANEL DESCRIPTION ■ Function display y SCRAMBLER INDICATOR Displayed when the voice scrambler function is activated. u BELL INDICATOR Displayed/blinks when the specific 2/5-Tone/MDC* code is received, according to the pre-programming. i SCAN INDICATOR Blinks during scan. o ALPHANUMERIC DISPLAY q TRANSMIT INDICATOR Displays an operating channel number, channel name, Displayed while transmitting.

  • Page 7: Programmable Function Keys

    [P0], [P1], [P2] and [P3] programmable function keys. • When Power ON Scan function is activated, push to pause the Consult your Icom dealer or system operator for details scanning operation. And the paused scan resumes after the concerning your transceivers programming.
  • Page 8 PANEL DESCRIPTION SCAN ADD/DEL (TAG) KEY MR-CH 1/2/3/4 KEYS ➥ P ush to add a channel to, or delete it from the current scan Push to select the memory channel 1 to 4 directly. list. MONI (AUDI) KEY • When a channel is added to the current scan list, the display shows “SCAN ON.”...
  • Page 9 PANEL DESCRIPTION HIGH/LOW KEY RE-DIAL KEY Push to select the transmit output power temporarily or Push to transmit the last-transmitted DTMF code. permanently, depending on the presetting. • TX memories are cleared after turning OFF the transceiver. • Ask your dealer for the output power level for each selection. CALL KEYS C.TONE CH ENT KEY Push to transmit a 2/5-Tone ID code.
  • Page 10 PANEL DESCRIPTION SIREN USER SET MODE KEY Push to emit a siren. ➥ Hold down for 1 second to enter the User Set mode. • During the User Set mode, push this key to select an item*, and change the value or condition using [CH Up]/[CH Down]. TX CODE ENTER KEY (PMR operation only) *Selectable items may differ depending on the presetting.

  • Page 11: Basic Operation

    BASIC OPERATION ■ Turning ON the transceiver ■ Channel selection q Push [ ] to turn ON the transceiver. Several types of channel can be selected. Methods may w If the transceiver is programmed for a start up password, differ according to your system set up. input the digit codes as directed by your dealer.

  • Page 12: Call Procedure

    BASIC OPERATION ■ Call procedure ■ Receiving and transmitting Receiving: When your system employs tone signaling (excluding q Hold down [ ] for 1 second to turn ON the transceiver. CTCSS and DTCS), a call procedure may be necessary w Push [CH Up] or [CH Down] to select a channel, in prior to voice transmission.

  • Page 13: D Transmitting Notes

    BASIC OPERATION D Transmitting notes D TX code channel selection • Transmit inhibit function If the transceiver has [TX Code CH Select] assigned to it, The transceiver has several inhibit functions which restrict the indication can be toggled between the operating channel transmission under the following conditions: number (or name) and TX code channel number (or name).

  • Page 14: D Dtmf Transmission

    BASIC OPERATION D TX code number edit USING [TX CODE ENTER] KEY: (PMR operation only) q Push [TX Code Enter] to enter the TX code edit mode. If the transceiver has [TX Code CH Select] or [TX Code • The digit to be edited blinks. Enter] assigned to it, TX code contents can be edited within w Push [TX Code Enter] to select the desired digit to be the allowable digits.

  • Page 15: User Set Mode

    BASIC OPERATION ■ User Set mode ■ Scrambler function If the transceiver has [User Set Mode] assigned to it, you The voice scrambler function provides private communication can “customize” the transceiver operation to suit your between stations. preferences and operating style. The optional Rolling or Non-rolling type can be selected.

  • Page 16: Stun Function

    BASIC OPERATION ■ Stun function When the specified ID, set as a stun ID or kill ID, is received, the stun function is activated. When the stun ID is received, the transceiver becomes unusable. Entering of the password (p. 7) or receiving a specified ID, set as a revive ID, is necessary to operate the transceiver again in this case.

  • Page 17: Mdc 1200 System Operation

    Emergency MDC 1200 system command once An additional feature of MDC 1200 system found in Icom or repeatedly for a programmed number of times until it transceivers is called aliasing. Each transceiver on the system receives the acknowledgement signal.

  • Page 18: Rear Panel Connection

    CONNECTION AND MAINTENANCE ■ Rear panel connection q ANTENNA CONNECTOR e MICROPHONE HANGER Antenna Connects to an antenna. Contact Connect the supplied microphone your dealer about antenna hanger to the vehicle’s ground for the Microphone ON/OFF Hook selection and placement. functions.

  • Page 19: Supplied Accessories

    CONNECTION AND MAINTENANCE ■ Supplied Accessories ■ Mounting the transceiver The universal mounting bracket supplied with your transceiver Microphone Microphone hanger Microphone allows overhead mounting. and screw set hanger cable • Mount the transceiver securely with the 4 supplied screws to a thick surface which can support more than 1.5 kg (3.3 lb).

  • Page 20: Antenna

    CONNECTION AND MAINTENANCE ■ Antenna ■ Options A key element in the performance of any communication • OPC-1132A/OPC-347 dc power cable systems is an antenna. Contact your dealer for more infor- 2 fuse holders are attached. USE the 20 A fuse only. mation regarding antennas and how to install them.

  • Page 21: Safety Training Information

    SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic en- 3. IC-F5021/IC-F5023H: ergy during transmit mode. This radio is designed Transmit only when people outside the vehicle are at least the for and classified as “Occupational Use Only”, recommended minimum distance of 100 centimeters away from meaning it must be used only during the course the properly installed antenna.
  • Page 22 LCD. You can cause the radio to transmit by pressing the “PTT” switch. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.
  • Page 23 Interférence électromagnétique et compatibilité pire des cas, pour un petit véhicule, l'antenne doit être placée sur En mode de transmission, votre radio Icom produit de l'énergie de le toit, n'importe où dans l'axe central du véhicule, afin de respect- RF qui peut provoquer des interférences avec d'autres appareils ou er une distance de 45 cm du bord le plus rapproché...
  • Page 24 A-6730D-1EX-r Printed in Japan © 2009–2016 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan Printed on recycled paper with soy ink.
