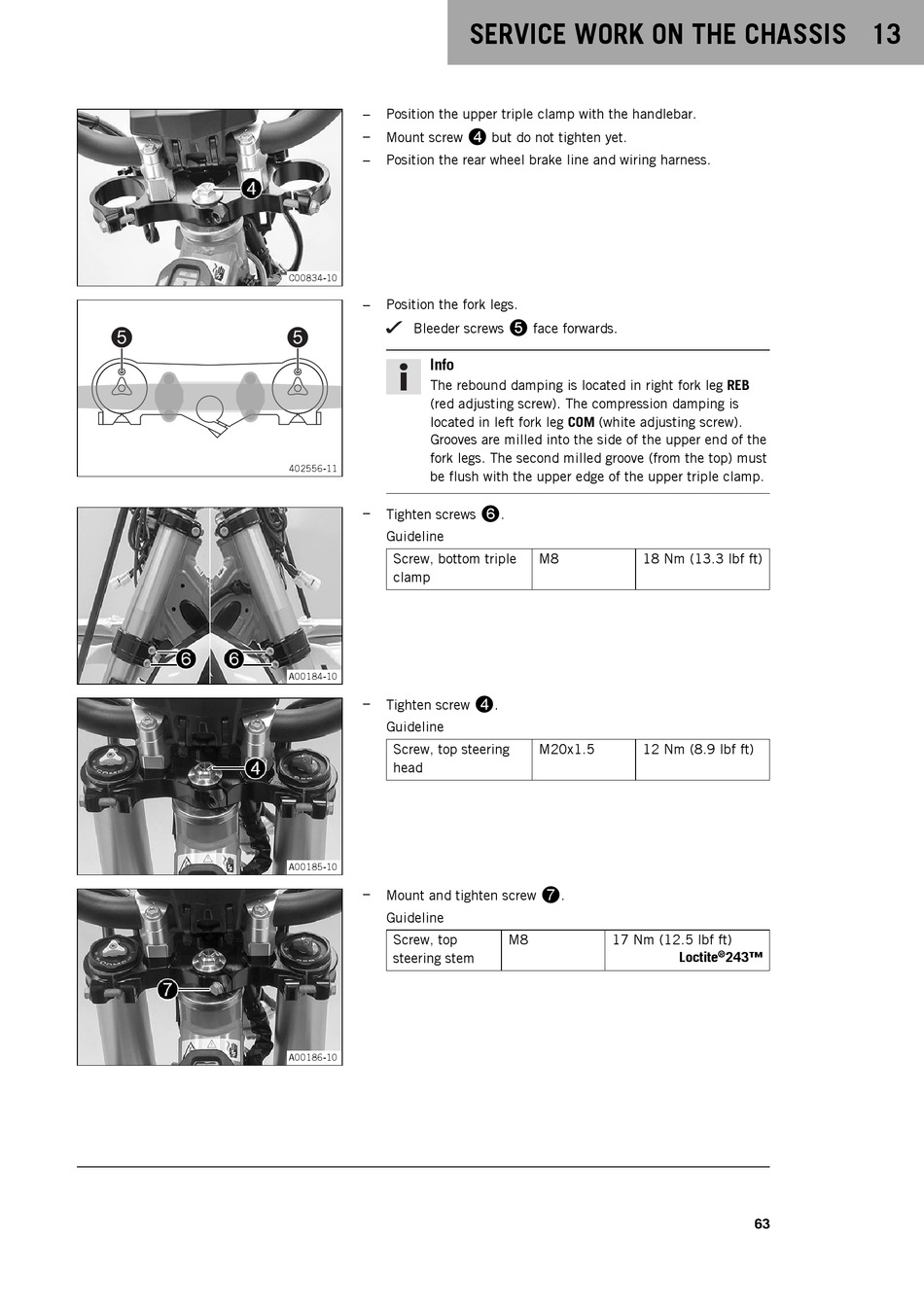

Position the upper triple clamp with the handlebar.
–
Mount screw
–
Position the rear wheel brake line and wiring harness.
C00834-10
–
Position the fork legs.
Bleeder screws
Info
The rebound damping is located in right fork leg REB
(red adjusting screw). The compression damping is
located in left fork leg COM (white adjusting screw).
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
402556-11
be flush with the upper edge of the upper triple clamp.
–
Tighten screws
Guideline
Screw, bottom triple
clamp
A00184-10
–
Tighten screw
Guideline
Screw, top steering
head
A00185-10
–
Mount and tighten screw
Guideline
Screw, top
steering stem
A00186-10
SERVICE WORK ON THE CHASSIS 13
4 but do not tighten yet.
5 face forwards.
6
.
M8
4
.
M20x1.5
7
.
M8 17 Nm (12.5 lbf ft)
18 Nm (13.3 lbf ft)
12 Nm (8.9 lbf ft)
Loctite ® 243™
63
