Fuse for the alternator
regulator
1 50 A
Alternator regulator

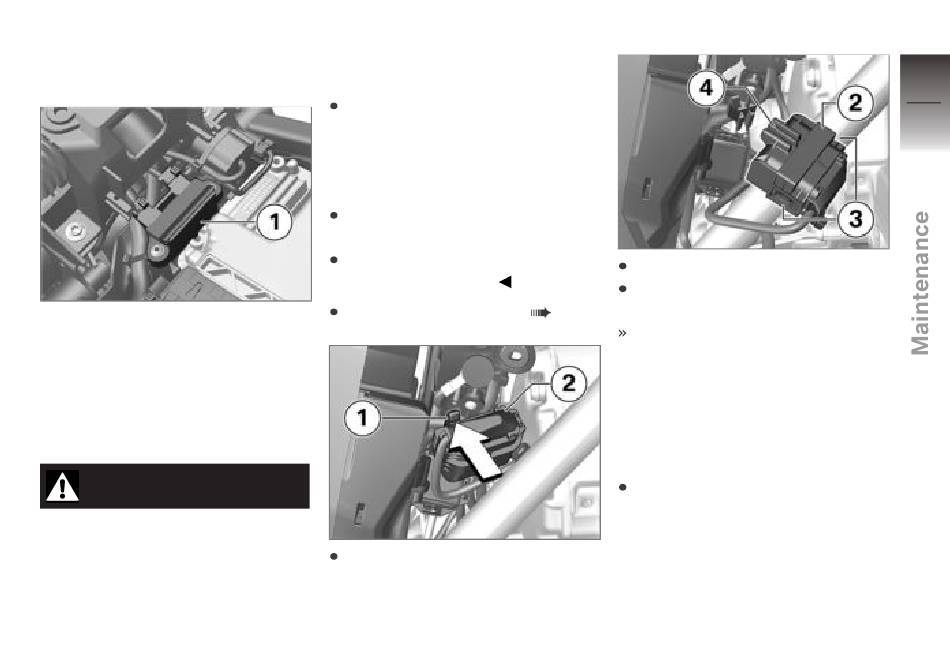

Data link connector

Removing the diagnostic
connector
CAUTION
Incorrect procedure followed
when disconnecting the data
link connector for the On-
Board Diagnostics.
Motorcycle experiences malfunc-
tions
Only have the data link con-
nector disconnected by a spe-
cialist workshop or other autho-
rized persons during your next
BMW Service appointment.
Have the work performed by
appropriately trained staff.
Refer to the vehicle manufac-
turer specifications.
Remove battery cover (
Push on hook 1 and pull data
link connector 2 up and out.
Press locks 3 on both sides.
Remove data link connector 2
from bracket 4.
179).
The diagnosis and information
system interface can be con-
nected at the diagnostic con-
nector 2.
Secure the data link
connector
Disconnect the diagnosis and
information system interface.
