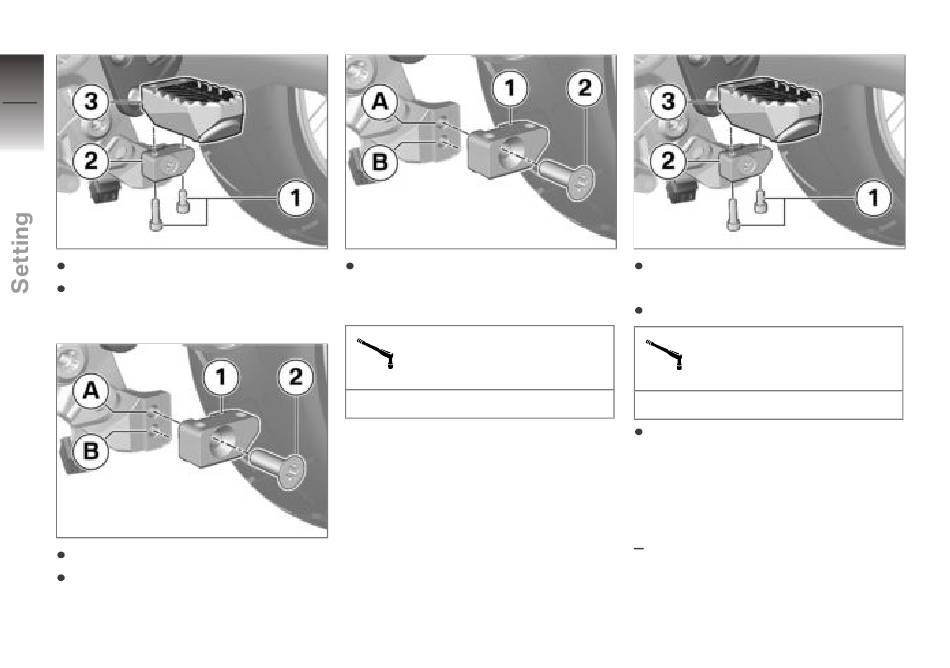

Remove screws 1.
z
Remove the footrest 3 from
the clamping block 2.
Remove screw 2.
Remove clamping block 1.
Install clamping block 1 in the
desired position A or B and
tighten screw 2.
Clamping block on
footrest hinge
15 lb/ft (20 Nm)
Position footrest 3 on clamping
block 2.
Install screws 1.
Footrest on clamping
block
7 lb/ft (10 Nm)
Remove and install the footrest
on the other side in the same
way.
