USING THE OPTIONS

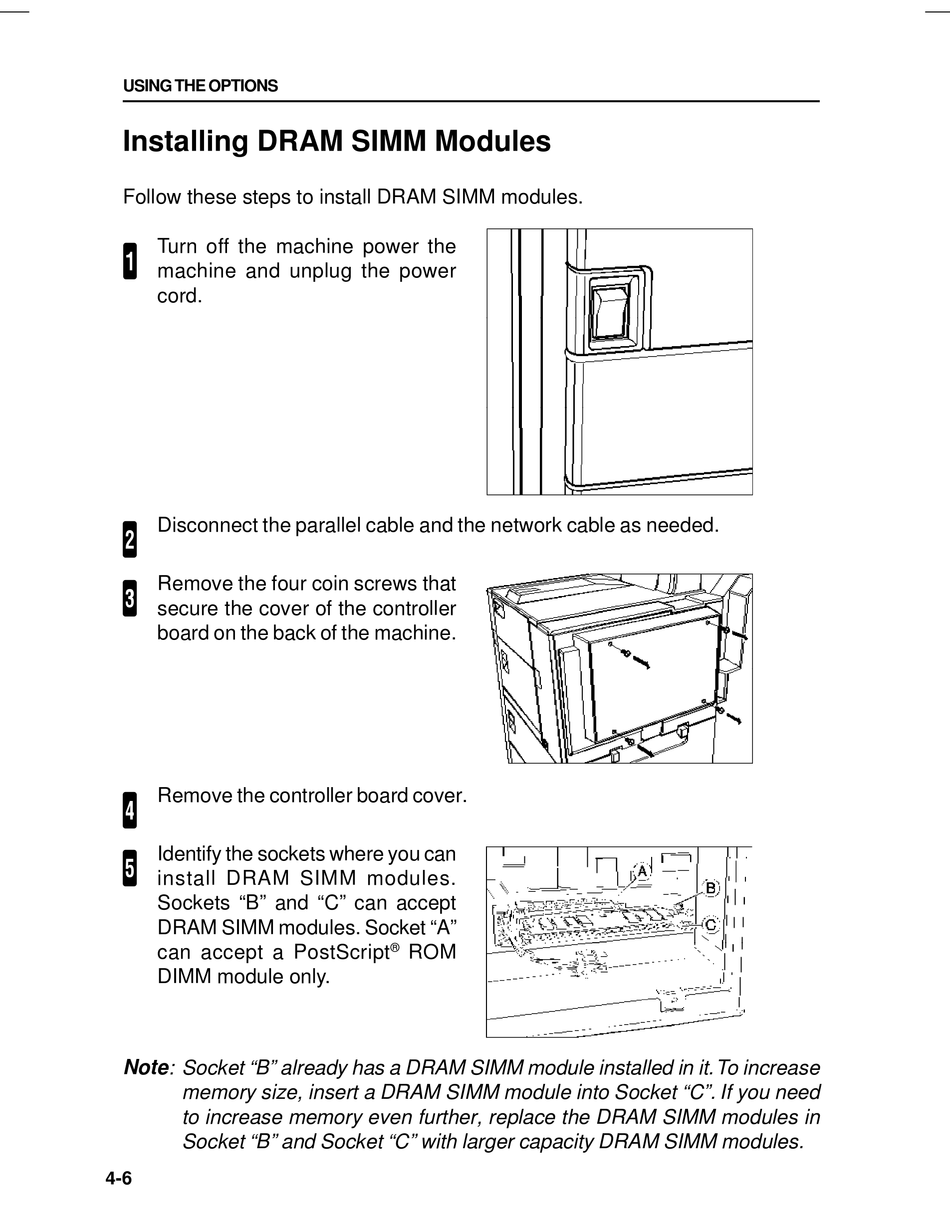

Installing DRAM SIMM Modules

Follow these steps to install DRAM SIMM modules.
Turn off the machine power the
1
machine and unplug the power
cord.
Disconnect the parallel cable and the network cable as needed.
2
Remove the four coin screws that
3
secure the cover of the controller
board on the back of the machine.
Remove the controller board cover.
4
Identify the sockets where you can
5
install DRAM SIMM modules.
Sockets "B" and "C" can accept
DRAM SIMM modules. Socket "A"
can accept a PostScript
DIMM module only.
Note: Socket "B" already has a DRAM SIMM module installed in it. To increase
memory size, insert a DRAM SIMM module into Socket "C". If you need
to increase memory even further, replace the DRAM SIMM modules in
Socket "B" and Socket "C" with larger capacity DRAM SIMM modules.
4-6
®
ROM
