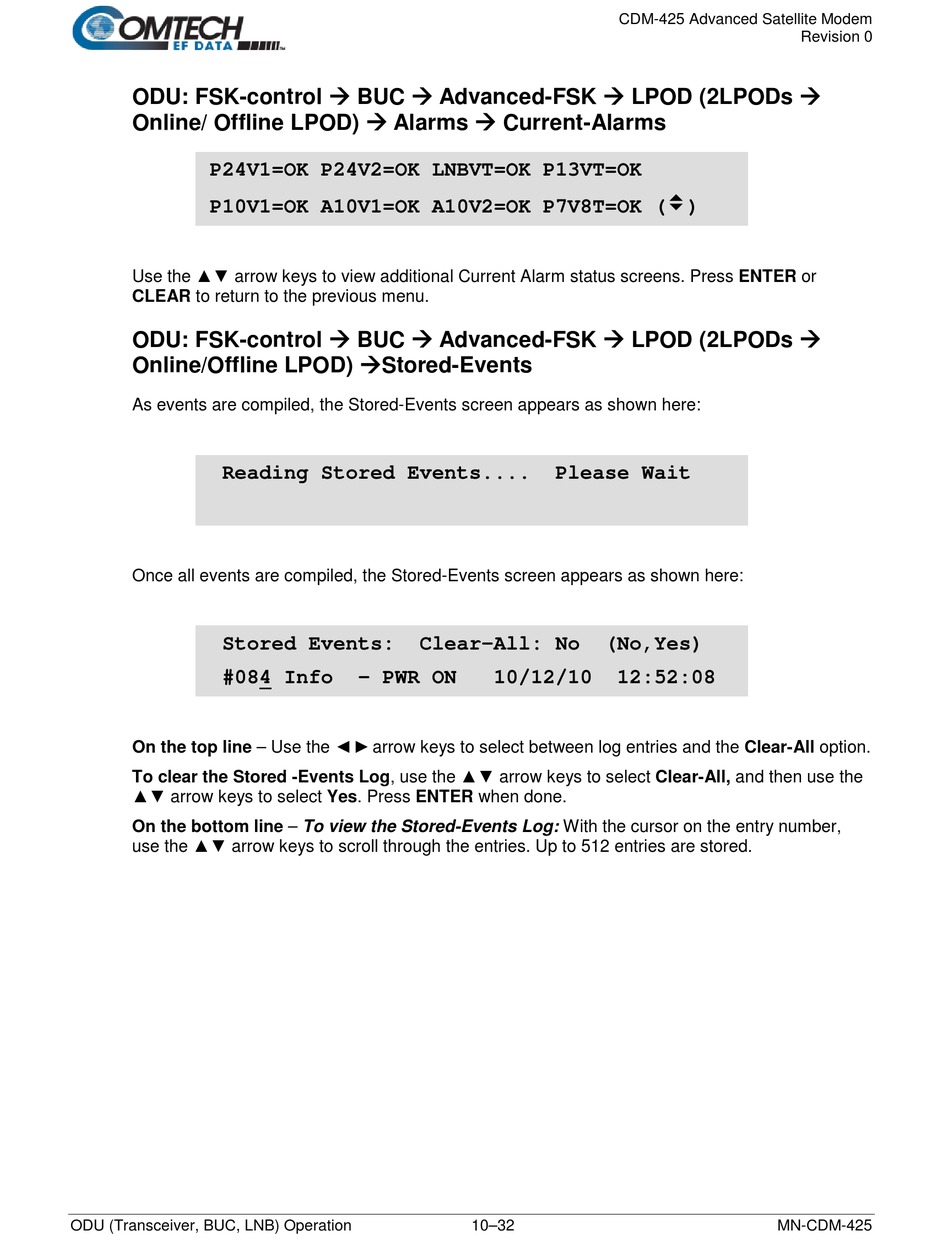

ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs 
Online/ Offline LPOD)  Alarms  Current-Alarms
P24V1=OK P24V2=OK LNBVT=OK P13VT=OK
P10V1=OK A10V1=OK A10V2=OK P7V8T=OK ()
Use the ▲▼ arrow keys to view additional Current Alarm status screens. Press ENTER or
CLEAR to return to the previous menu.
ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs 
Online/Offline LPOD) Stored-Events
As events are compiled, the Stored-Events screen appears as shown here:
Reading Stored Events....
Once all events are compiled, the Stored-Events screen appears as shown here:
Stored Events:
#084 Info
On the top line – Use the ◄ ►arrow keys to select between log entries and the Clear-All option.
To clear the Stored -Events Log, use the ▲▼ arrow keys to select Clear-All, and then use the
▲▼ arrow keys to select Yes. Press ENTER when done.
On the bottom line – To view the Stored-Events Log: With the cursor on the entry number,
use the ▲▼ arrow keys to scroll through the entries. Up to 512 entries are stored.
ODU (Transceiver, BUC, LNB) Operation
Clear-All: No
- PWR ON 10/12/10
10–32
CDM-425 Advanced Satellite Modem
Please Wait
(No,Yes)
12:52:08
Revision 0
MN-CDM-425
