Handling

10-3-2 PC Connections

!Caution Mount the EEPROM to the CPM1-EMU01-V1 before connecting the CPM1-
!Caution Do not disconnect the CPM1-EMU01-V1 from the PC when the indicator is
CPM2C-S, CPM2C, and
CQM1H PCs
CPM1, CPM1A, CPM2A,
CQM1, and SRM1 (-V2)
PCs
Peripheral Port
Communications Settings
Disconnecting
EMU01-V1 to the PC.
blinking green.
When connecting to a CPM2C-S, CPM2C, or CQM1H, connect to the periph-
eral port via the CPM2C-CN111 or CS1W-CN114 Connecting Cable. Also, set
the pins on the CPU Unit's DIP switch as follows:
CPM2C-S Pin 3: ON (see note)
Pin 4: ON
CPM2C Pin 1: ON (see note)
Pin 2: ON
CQM1H Pin 5: ON (see note)
Pin 7: ON
Note If pin 3 on the CPM2C-S, pin 1 on the CPM2C, or pin 5 on the CQM1H is OFF,
connection is still possible if the peripheral port settings in the PC Setup
(DM 6650 to DM 6654) are set to the standard communications settings.

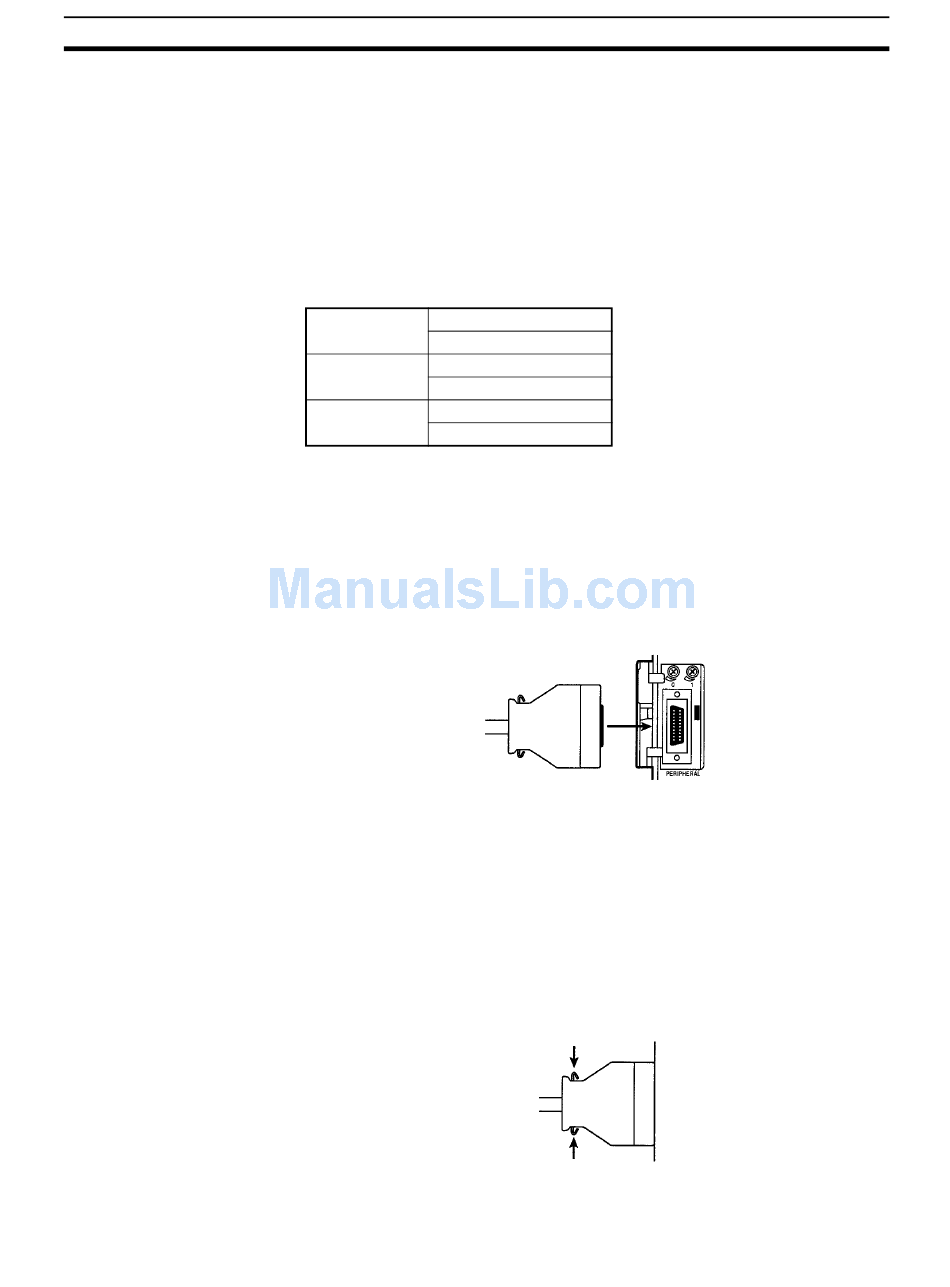

When connecting to the CPM1, CPM1A, CPM2A, CQM1 or SRM1 (-V2),insert
the connector into the peripheral port making sure that the connector is ori-
ented correctly.
• Insert the connector until it securely locks into place.
• Connections are not possible to the RS-232C port or any other port.
The peripheral port must be set to the default communications settings shown
below.
Start bits:1
Data bits:7
Stop bits:2
Parity: Even
Baud rate: 9,600 bps
Press the levers on the top and bottom of the connector inwards to unlock the
connector and pull out as shown in the following diagram.
Note Do not attempt to remove the connector by pulling the cable.
Section 10-3
223
