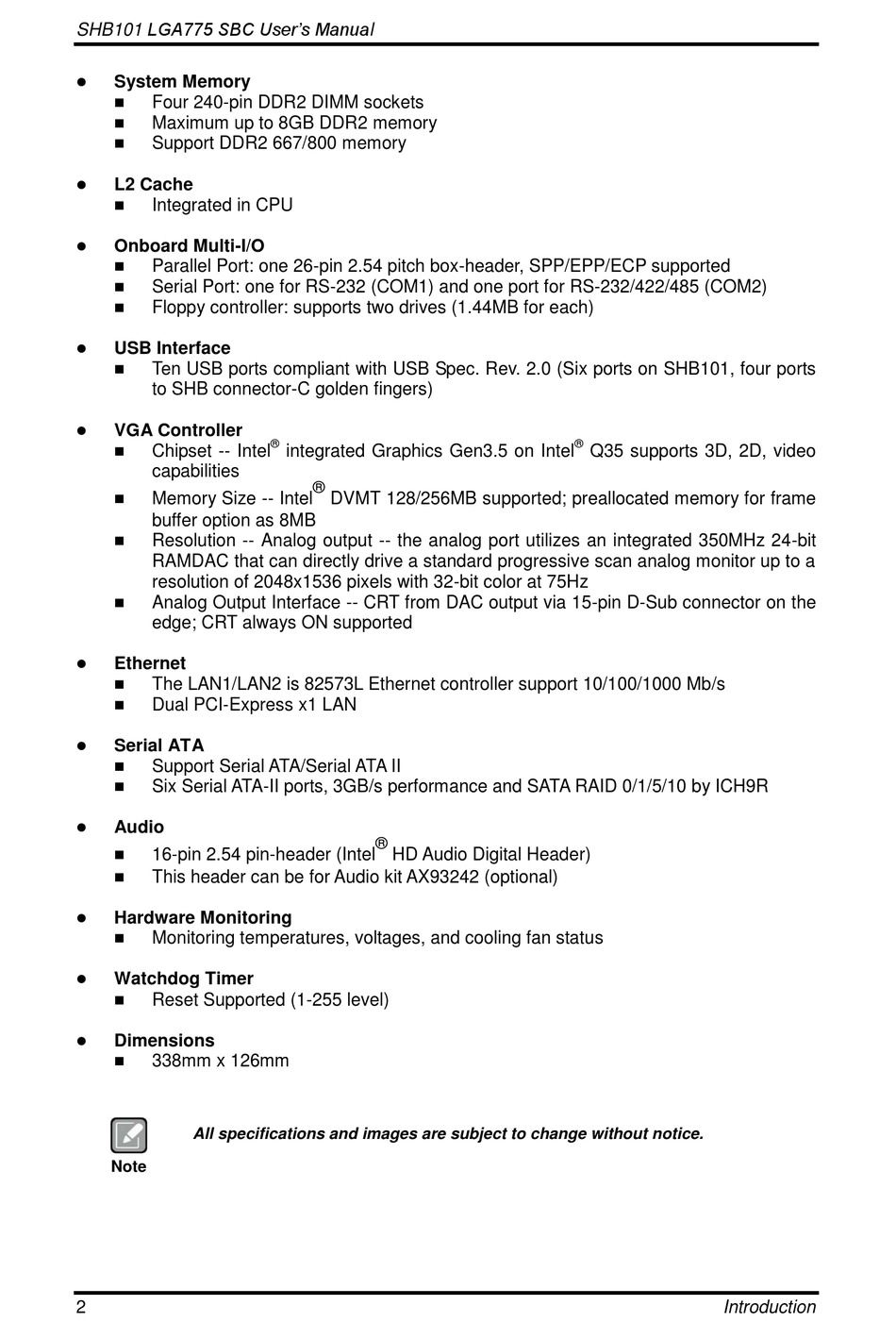

AXIOMTEK SHB101 User Manual page 8

SHB101 LGA775 SBC User's Manual
 System Memory
 Four 240-pin DDR2 DIMM sockets
 Maximum up to 8GB DDR2 memory
 Support DDR2 667/800 memory
 L2 Cache

Integrated in CPU
 Onboard Multi-I/O
 Parallel Port: one 26-pin 2.54 pitch box-header, SPP/EPP/ECP supported
 Serial Port: one for RS-232 (COM1) and one port for RS-232/422/485 (COM2)
 Floppy controller: supports two drives (1.44MB for each)
 USB Interface
 Ten USB ports compliant with USB Spec. Rev. 2.0 (Six ports on SHB101, four ports
to SHB connector-C golden fingers)
 VGA Controller
 Chipset -- Intel
capabilities
 Memory Size -- Intel
buffer option as 8MB
 Resolution -- Analog output -- the analog port utilizes an integrated 350MHz 24-bit
RAMDAC that can directly drive a standard progressive scan analog monitor up to a
resolution of 2048x1536 pixels with 32-bit color at 75Hz
 Analog Output Interface -- CRT from DAC output via 15-pin D-Sub connector on the
edge; CRT always ON supported

Ethernet
 The LAN1/LAN2 is 82573L Ethernet controller support 10/100/1000 Mb/s

Dual PCI-Express x1 LAN
 Serial ATA
 Support Serial ATA/Serial ATA II
 Six Serial ATA-II ports, 3GB/s performance and SATA RAID 0/1/5/10 by ICH9R

Audio
 16-pin 2.54 pin-header (Intel
 This header can be for Audio kit AX93242 (optional)
 Hardware Monitoring

Monitoring temperatures, voltages, and cooling fan status
 Watchdog Timer
 Reset Supported (1-255 level)
 Dimensions
 338mm x 126mm
All specifications and images are subject to change without notice.
Note
2
®
integrated Graphics Gen3.5 on Intel
®
DVMT 128/256MB supported; preallocated memory for frame
®
HD Audio Digital Header)
®
Q35 supports 3D, 2D, video
Introduction
