SHB101 LGA775 SBC User's Manual

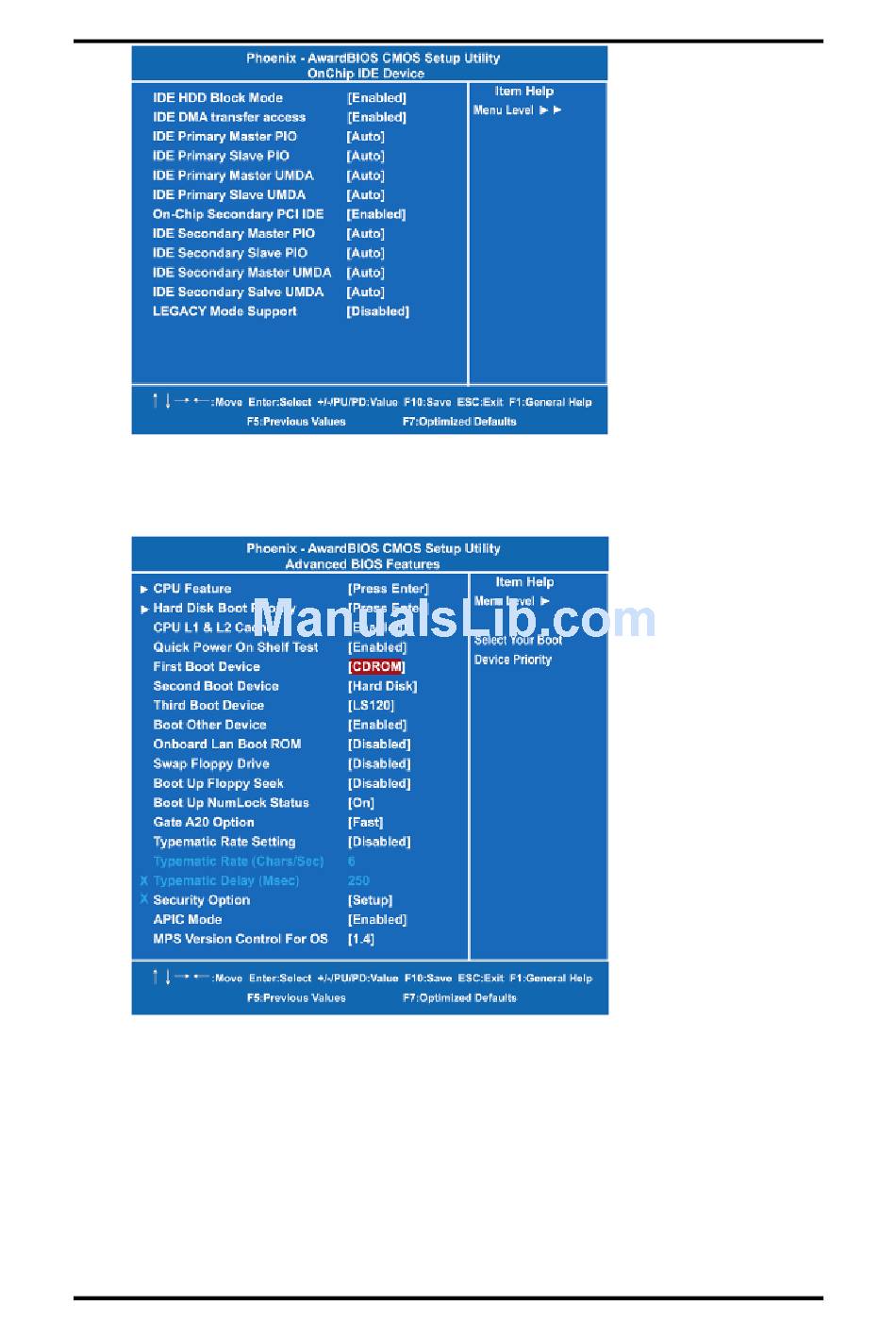

(2)-2 Set CDROM for First Boot Device under the Advanced BIOS Features menu to boot

CD-ROM after system restarts.

(2)-3 Save and exit the BIOS Setup.

(3)

Configuring RAID by the RAID BIOS

Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed

to Section 4 if you do not want to create a RAID.

(3)-1 After the POST memory testing and before the operating system booting, a message

"Press <Ctrl-I> to enter Configuration Utility" shows up, accordingly, press <CTRL+ I> to

enter the RAID BIOS setup utility.

Configuring SATA for RAID Function
