Installing the Processor

The LGA775 processor socket comes with a cover to protect the processor. Please install the
processor into the CPU socket step by step as below:

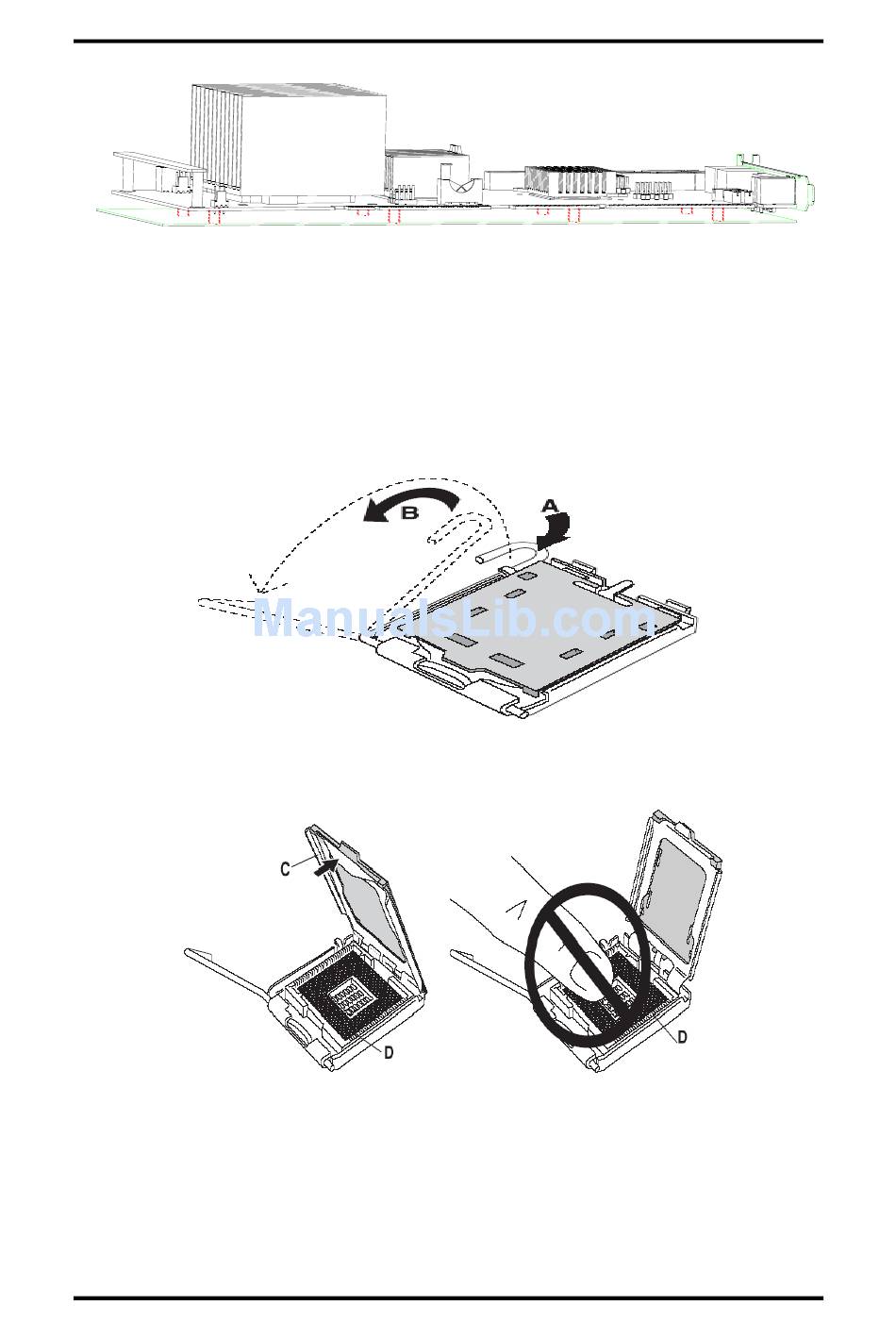

Hold the hook (A) of the lever and push it down.
Pull the lever (B) aside to unlock the cover.
Open the cover (C), you can
see the contact.
18
Be careful not to touch the
contact (D).
