AXIOMTEK SHB211 Series User Manual

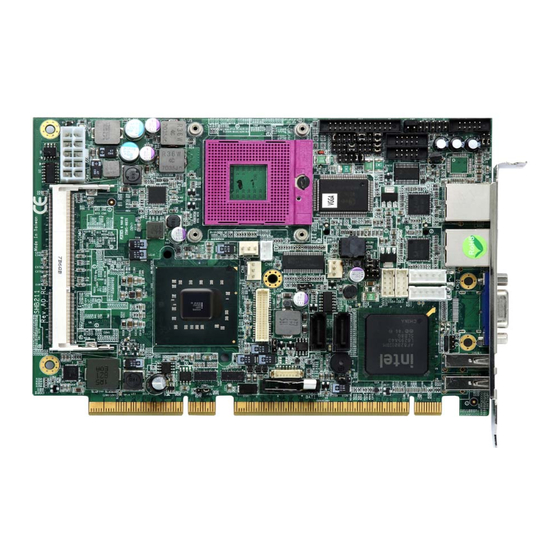

Intel core 2 duo/celeron m cpu picmg 1.3 half-size single board computer
Hide thumbs Also See for SHB211 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
SHB211 Series
™
®
®
Intel
Core
2 Duo/Celeron
M CPU
PICMG 1.3 Half-Size
Single Board Computer
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for AXIOMTEK SHB211 Series

Summary of Contents for AXIOMTEK SHB211 Series

  • Page 1 SHB211 Series ™ ® ® Intel Core 2 Duo/Celeron M CPU PICMG 1.3 Half-Size Single Board Computer User’s Manual...
  • Page 2 AXIOMTEK does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document. AXIOMTEK does not make any commitment to update the information in this manual.

  • Page 3: Esd Precautions

    Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments AXIOMTEK is a trademark of AXIOMTEK Co., Ltd. ® Windows is a trademark of Microsoft Corporation. ®...

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ......................ii ESD Precautions ....................iii CHAPTER 1 INTRODUCTION ..................1 Specifications ................... 2 Utilities Supported ................4 Block Diagram .................. 5 I/O Bracket ..................6 CHAPTER 2 JUMPERS AND CONNECTORS............7 Board Dimensions ................7 Board Layout ..................
  • Page 5 CHAPTER 4 HARDWARE DESCRIPTION..............36 Microprocessors ................36 BIOS....................36 System Memory ................36 I/O Port Address Map..............37 Interrupt Controller (IRQ) Map............39 CHAPTER 5 AMI BIOS SETUP UTILITY..............40 Starting ................... 40 Navigation Keys ................40 Main Menu..................41 Advanced Menu ................
  • Page 6 MEMO...

  • Page 7: Chapter 1 Introduction

    SHB211 Socket P Half-Size SBC User’s Manual CHAPTER 1 INTRODUCTION The SHB211 PICMG 1.3 half-size Single Board Computer supports ® ® ™ Socket P (478-pin) for Intel Core 2 Duo/Celeron M processors ® with FSB 800/1066 MHz MT/s. The board integrates Intel GM45 and ICH9M/ICH9M-E chipsets that can deliver outstanding system performance through high-bandwidth interfaces, multiple I/O functions...

  • Page 8: Specifications

    SHB211 Socket P Half-Size SBC User’s Manual Specifications ® ® ™ Intel Core 2 Duo/Celeron M Processors System Chipset ® optional with ICH9M-E) Intel GM45 and ICH9M ( CPU Socket Socket P (478-pin) Front-Side Bus 800/1066 MHz BIOS AMI BIOS via SPI interface with socket System Memory Two 204-pin DDR3 SO-DIMM sockets Maximum up to 8GB DDR3 memory...
  • Page 9 SHB211 Socket P Half-Size SBC User’s Manual VGA Controller ® Chipset -- Intel GM45 GMCH Gen5 integrated graphic engine; support Microsoft DirectX 10, Blu-ray 40Mb/s Memory Size up to 256MB frame buffer sharing system memory Maximum Resolution – CRT – 2048 x 1536 @ 75Hz with 32-bit color ◆...

  • Page 10: Utilities Supported

    SHB211 Socket P Half-Size SBC User’s Manual NOTE All specifications and images are subject to change without notice. Utilities Supported ® Intel GM45 Utility and Drivers VGA Drivers Ethernet Utility and Drivers RAID Utility Introduction...

  • Page 11: Block Diagram

    SHB211 Socket P Half-Size SBC User’s Manual Block Diagram Introduction...

  • Page 12: I/O Bracket

    SHB211 Socket P Half-Size SBC User’s Manual I/O Bracket Introduction...

  • Page 13: Chapter 2 Jumpers And Connectors

    SHB211 Socket P Half-Size SBC User’s Manual CHAPTER 2 JUMPERS AND CONNECTORS Board Dimensions Jumpers and Connectors...

  • Page 14: Board Layout

    SHB211 Socket P Half-Size SBC User’s Manual Board Layout Component Side Jumpers and Connectors...
  • Page 15 SHB211 Socket P Half-Size SBC User’s Manual Solder Side Jumpers and Connectors...

  • Page 16: Jumper Settings

    SHB211 Socket P Half-Size SBC User’s Manual Jumper Settings Proper jumper settings configure the SHB211 to meet your application purpose. Jumper Default Setting Jumper Setting COM1 Mode Selection Short 1-2 Default: RS-232 COM1 Mode Selection Short 3-5, 4-6 Default: RS-232 COM1 Mode Selection Short 3-5, 4-6 Default: RS-232...

  • Page 17: Com1 Mode Select Jumpers (Jp1, Jp2, Jp3)

    SHB211 Socket P Half-Size SBC User’s Manual Jumper Default Setting Jumper Setting NB PCIEx16 Signal MODE JP20~21 Short 2-3 Default: PCIEx16 -- The End -- 2.3.1 COM1 Mode Select Jumpers (JP1, JP2, JP3) These jumpers select the COM1 port’s communication mode to operate RS-232 or RS-422/485.

  • Page 18: Com1~2 Mode Selection Jumpers (Jp6, Jp5)

    SHB211 Socket P Half-Size SBC User’s Manual 2.3.3 COM1~2 Mode Selection Jumpers (JP6, JP5) These jumpers select the COM1, COM2 ports’ DCD and RI mode. Description Function Jumper Setting COM1 DCD & RI Pin 1=12V Voltage Selection (JP6) Pin 1=5V *Pin 1=DCD (Default) Pin 8=12V...
  • Page 19 SHB211 Socket P Half-Size SBC User’s Manual Description Function Jumper Setting COM2 DCD & RI Pin 1=12V Voltage Selection (JP5) Pin 1=5V *Pin 1=DCD (Default) Pin 8=12V Pin 8=5V *Pin 8=RI (Default) Jumpers and Connectors...

  • Page 20: Compactflash™ Device Setting Jumper (Jp8~11)

    SHB211 Socket P Half-Size SBC User’s Manual ™ 2.3.4 CompactFlash Device Setting Jumper (JP8~11) Jumper Description Jumper Setting Description Jumper Setting CF Device Enable Disable (Default) ™ 2.3.5 ComplactFlash Voltage Selection Jumper (JP12) This jumper is to select the voltage for CompactFlash interface.

  • Page 21: Usb Voltage Selection Jumpers (Jp14, Jp15, Jp17)

    SHB211 Socket P Half-Size SBC User’s Manual 2.3.7 USB Voltage Selection Jumpers (JP14, JP15, JP17) This jumper is to select the voltage for USB interface. Description Function Jumper Setting USB Voltage Selection 5V_SBY 2.3.8 LVDS Voltage Selection Jumper (JP18) This jumper is to select the voltage for LVDS interface. Description Function Jumper Setting...

  • Page 22: Cmos Clear Jumper (Jp19)

    SHB211 Socket P Half-Size SBC User’s Manual 2.3.9 CMOS Clear Jumper (JP19) You may need to use this jumper to clear the CMOS memory if incorrect settings in the Setup Utility. Description Function Jumper Setting CMOS Clear Normal (Default) Clear CMOS 2.3.10 NB PCIex16 Signal Mode Jumper (JP20-21) This jumper is to select singal output for PCIe x16 Slot or Digital Display Port.

  • Page 23: Connectors

    SHB211 Socket P Half-Size SBC User’s Manual Connectors Connectors connect this board with other parts of the system. Loose or improper connection might cause problems. Make sure all connectors are properly and firmly connected. Here is a summary table shows you all connectors on the board. Connectors Label Audio Connector...
  • Page 24 SHB211 Socket P Half-Size SBC User’s Manual Jumpers and Connectors...

  • Page 25: Audio Connector (Cn1)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.1 Audio Connector (CN1) CN1 is a 10pin-header connector commonly used for the audio. Signal Signal MIC-IN 2 GND Line In L 4 GND Line In R 6 GND Audio Out L 8 GND Audio Out R 10 GND 2.4.2...
  • Page 26 SHB211 Socket P Half-Size SBC User’s Manual System Reset Switch Pin 11 and 12 can be connected to the case-mounted reset switch that reboots your computer instead of turning OFF the power switch. It is a better way to reboot your system for a longer life of the system’s power supply.

  • Page 27: Print Port Or Floppy Connectors (Cn3)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.3 Print Port or Floppy Connectors (CN3) Print Port Connector [Default] This board has a multi-mode parallel port to support: 1. Standard mode IBM PC/XT, PC/AT and PS/2™ compatible with bi-directional parallel port 2.

  • Page 28: Epic Power Connector (Cn4)

    SHB211 Socket P Half-Size SBC User’s Manual Floppy Connector [Optional] You can plug one end of FDD cable in the FDD connector, and the other end of cable to the FDD drive. The supported type of FDD drives are 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB. Signal Signal DRIVE0...

  • Page 29: Cpu & System Fan Connectors (Cn5, Cn7, Cn8)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.5 CPU & System Fan Connectors (CN5, CN7, CN8) CN5 is a fan connector for CPU, and CN7, CN8 for system. Pentium microprocessors require a fan for heat dispensing. The CPU/System fan connectors respectively provide power to the CPU/System fans. Signal +12V Sensor...

  • Page 30: Display Port Connector (Shb211Pgga, Cn9)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.7 Display Port Connector (SHB211PGGA, CN9) Signal DPB_LANE0 DPB_LANE0# DPB_LANE1 DPB_LANE1# DPB_LANE2 DPB_LANE2# DPB_LANE3 DPB_LANE3# DPB_AUX DPB_AUX# DPB_HPDE N.C. 3.3V Jumpers and Connectors...

  • Page 31: Vga Connector (Shb211Vgga, Cn10)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.8 VGA Connector (SHB211VGGA, CN10) CN10 is a standard 15-pin pin DB15 connector commonly used for the CRT VGA display. Signal Signal Signal Green Blue AGND CRT_DET# AGND AGND VGA_5V 10 AGND 11 N/A 12 DDC DAT 13 Horizontal Sync 14 Vertical Sync...

  • Page 32: Lvds Backlight Connector (Cn12)

    SHB211 Socket P Half-Size SBC User’s Manual Signal Signal Channel A D2- Channel A CLK- Channel A D2+ Channel A CLK+ 2.4.10 LVDS Backlight Connector (CN12) The 7-pin inverter connector on the SHB211 is with Hirose connector. The matching connector is strongly recommended to use Hirose DF13- 7S-1.25C.

  • Page 33: External Mouse/Keyboard Connectors (Ms1/Kb1)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.11 External Mouse/Keyboard Connectors (MS1/KB1) The board provides the Keyboard (KB1)/ Mouse (MS1) interface with a 5-pin connector. Clock Data No Connection Power 2.4.12 Ethernet RJ-45 Connectors (LAN1/LAN2) The RJ-45 connector LAN1/LAN2 is for Ethernet. To connect the board to 100-Base-T or 1000-Base-T hub, just plug one end of the cable into LAN1 or LAN2, and then, connect the other end (phone jack) to a 100- Base-T hub or 1000-Base-T hub.

  • Page 34: Serial Port Interface (Com1, Com2)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.13 Serial Port Interface (COM1, COM2) The serial interface for the board consists of COM1 port support RS232/422/485(COM1) and COM2 (COM2) supports RS-232. Signal Signal Data Carrier Data Set Ready Detect (DCD) (DSR) Receive Data Request to Send (RXD)

  • Page 35: Usb Connectors (Usb1, Usb2)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.15 USB Connectors (USB1, USB2) The SHB211 Series features Universal Serial Bus (USB) connectors, compliant with USB 2.0 (480Mbps) that can be adapted to any USB peripherals, such as monitor, keyboard and mouse.

  • Page 36: Usb Connectors (Usb5/Usb6)

    SHB211 Socket P Half-Size SBC User’s Manual 2.4.17 USB Connectors (USB5/USB6) The Universal Serial Bus (USB) connector on the board is for the installation of peripherals supporting the USB interface. USB5 and USB6 are 10-pin standard onboard USB connectors. Signal Signal USB5/USB6 USB POWER...
  • Page 37 SHB211 Socket P Half-Size SBC User’s Manual Address 6 CSEL# Address 5 VS2# Address 4 RESET# Address 3 IORDY# Address 2 DMAREQ Address 1 DMAACK- Address 0 DASP# Data 0 PDIAG# Data 1 Data 8 Data 2 Data 9 IOCS16# Data 10 CD2# Jumpers and Connectors...

  • Page 38: Chapter 3 Haredware Installation

    SHB211 Socket P Half-Size SBC User’s Manual CHAPTER 3 HAREDWARE INSTALLATION ® Before installing the processor, please access Intel website for more detailed information http://www.intel.com . Installing the Processor ® ® ™ The Intel Core 2 Duo Mobile Processor or Mobile Intel ®...
  • Page 39 SHB211 Socket P Half-Size SBC User’s Manual 3. If the cooling solution prevents you from accessing the processor socket, you may need to remove it. Instructions on how to remove your cooling solution should be provided in the documentation that came with the system. 4.
  • Page 40 SHB211 Socket P Half-Size SBC User’s Manual Hardware Installation...

  • Page 41: Installing The Memory

    SHB211 Socket P Half-Size SBC User’s Manual Installing the Memory The board supports two 204-pin DDR3 SO-DIMM memory sockets with maximum memory capacity up to 8GB. Please follow steps below to install the memory modules: Push down latches on each side of the SO-DIMM socket. Align the memory module with the socket that notches of memory module must match the socket keys for a correct intallation.

  • Page 42: Chapter 4 Hardware Description

    Make sure all correct settings are arranged for your installed microprocessor to prevent the CPU from damages. BIOS The SHB211 Series uses AMI Plug and Play BIOS with a single 8Mbit SPI Flash. System Memory The SHB211 Series supports two 204-pin DDR3 DIMM sockets for a maximum memory of 8GB DDR3 SDRAMs.

  • Page 43: I/O Port Address Map

    SHB211 Socket P Half-Size SBC User’s Manual I/O Port Address Map ® ® ™ The Intel Core 2 Duo/Celeron M CPUs can communicate via I/O ports. There are total 1KB port addresses available for assignment to other devices via I/O expansion cards. Hardware Description...
  • Page 44 SHB211 Socket P Half-Size SBC User’s Manual Hardware Description...

  • Page 45: Interrupt Controller (Irq) Map

    SHB211 Socket P Half-Size SBC User’s Manual Interrupt Controller (IRQ) Map The SHB211 Series is a 100% PC compatible control board. It consists of 16 interrupt request lines, and four out of them can be programmable. The mapping list of the 16 interrupt request lines is shown as the following table.

  • Page 46: Chapter 5 Ami Bios Setup Utility

    SHB211 Socket P Half-Size SBC User’s Manual CHAPTER 5 AMI BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del>...

  • Page 47: Main Menu

    SHB211 Socket P Half-Size SBC User’s Manual The <Esc> key allows you to discard any changes you have made and exit the Setup. Press the <Esc> key to exit the setup without saving your changes. The <Enter> key allows you to display or change the setup option listed for a particular setup item.

  • Page 48: Advanced Menu

    SHB211 Socket P Half-Size SBC User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: CPU Configuration IDE Configuration Floppy Configuration...
  • Page 49 SHB211 Socket P Half-Size SBC User’s Manual CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option. MPS Revision Use this item to select MPS (Multi Processor Specification) Revision 1.1 or 1.4. The default setting is 1.4. Hardware Prefetcher This item automatically analyzes its requirements and prefetches data and instructions from the memory.
  • Page 50 SHB211 Socket P Half-Size SBC User’s Manual line and the subsequent cache line when enabled. The processor will only retrieve the currently requested cache line when disabled. Max CPUID Value Limit You can enable this item to let legacy operating systems boot even without support for CPUs with extended CPU ID functions.
  • Page 51 SHB211 Socket P Half-Size SBC User’s Manual IDE Configuration You can use this screen to select options for the IDE Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. For items marked with “...
  • Page 52 SHB211 Socket P Half-Size SBC User’s Manual options. AMI BIOS Setup Utility...
  • Page 53 SHB211 Socket P Half-Size SBC User’s Manual Floppy Configuration You can use this screen to select options for the Floppy Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 54 SHB211 Socket P Half-Size SBC User’s Manual SuperIO Configuration You can use this screen to select options for the SuperIO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 55 SHB211 Socket P Half-Size SBC User’s Manual Parallel Port Address Parallel Port Mode Select an operating mode for the onboard parallel (printer) port. Parallel Port IRQ Use this item to set up the IRQ for onboard parallel port. Hardware Health Configuration This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen.
  • Page 56 SHB211 Socket P Half-Size SBC User’s Manual system overheating. There are these options Manual Mode and Thermal Cruise Mode. ACPI Configuration You can use this screen to select options for the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 57 SHB211 Socket P Half-Size SBC User’s Manual Scroll to this item and press <Enter> to view the Chipset ACPI Configuration sub menu, which contains Chipset ACPI (Advanced Configuration and Power Management Interface) options for your configuration. AHCI Configuration You can use this screen to select options for the AHCI Configuration, and change the value of the selected option.
  • Page 58 SHB211 Socket P Half-Size SBC User’s Manual APM Configuration You can use this screen to select options for the APM Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 59 SHB211 Socket P Half-Size SBC User’s Manual Power Button Mode This option specifies how the externally mounted power button on the front of the computer chassis is used. The default setting is On/Off. Pushing the power button turns the computer on or On/Off off.
  • Page 60 SHB211 Socket P Half-Size SBC User’s Manual This option stops the hard disk drives from spinning Standby during a system standby. This option cuts the power to the hard disk drives Suspend during a system suspend. This is the default setting. Throttle Slow Clock Ratio Use this item to specify the speed of the system clock when running the power saving states.
  • Page 61 SHB211 Socket P Half-Size SBC User’s Manual Event Log Configuration This screen shows the Event Log Configuration, and a description of the selected item appears on the right side of the screen. View Event Log This item is to display the system events in the System Event Log.
  • Page 62 SHB211 Socket P Half-Size SBC User’s Manual Smbios Configuration You can use this screen to select options for the Smbios Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 63 SHB211 Socket P Half-Size SBC User’s Manual USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.

  • Page 64: Pci Pnp Menu

    SHB211 Socket P Half-Size SBC User’s Manual PCI PnP Menu The PCI PnP menu allows users to change the advanced settings for PCI/PnP devices. Clear NVRAM Use this item to clear the data in the NVRAM (CMOS). Here are the options for your selection, No and Yes. Plug &...
  • Page 65 SHB211 Socket P Half-Size SBC User’s Manual bus before another takes over. The longer the latency, the longer the PCI device can retain control of the bus before handing it over to another PCI device. There are several options for your selection. Allocate IRQ to PCI VGA This item allows BIOS to choose an IRQ to assign for the PCI VGA card.

  • Page 66: Boot Menu

    SHB211 Socket P Half-Size SBC User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: Boot Settings Configuration For items marked with “...
  • Page 67 SHB211 Socket P Half-Size SBC User’s Manual Boot Settings Configuration Quick Boot Enabling this item lets the BIOS skip some power on self tests (POST). The default setting is Enabled. LAN1/LAN2 Boot Use these items to enable or disable the Boot ROM function of the onboard LAN chip when the system boots AddOn ROM Display Mode This item selects the display mode for option ROM.

  • Page 68: Security Menu

    SHB211 Socket P Half-Size SBC User’s Manual is Enabled. Interrupt 19 Capture If this item is enabled, this function makes the option ROMs to trap Interrupt 19. The default setting is Disabled. Security Menu The Security menu allows users to change the security settings for the system.
  • Page 69 SHB211 Socket P Half-Size SBC User’s Manual password. Change User Password Select this option and press <Enter> to access the sub menu. You can use the sub menu to change the user password. Boot Sector Virus Protection This option is near the bottom of the Security Setup screen. The default setting is Disabled Set this value to prevent the Boot Sector Virus Protection.

  • Page 70: Chipset Menu

    SHB211 Socket P Half-Size SBC User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: North Bridge Configuration South Bridge Configuration For items marked with “...
  • Page 71 SHB211 Socket P Half-Size SBC User’s Manual North Bridge Configuration Memory Hole You can reserve this area of system memory for ISA adapter ROM. When this area is reserved it cannot be cached. Check the user information of peripherals that need to use this area o f system memory for the memory requirements.
  • Page 72 SHB211 Socket P Half-Size SBC User’s Manual Video Function Configuration You can press <Enter> for the sub-menu to set up video function. South Bridge Configuration USB Controller This item allows you to enable or disable USB function/controller. Restore on AC Power Loss This item can control how the PC will behave once power is restored following a power outage, or other unexpected shutdown.

  • Page 73: Exit Menu

    SHB211 Socket P Half-Size SBC User’s Manual PCIE Port Configuration This item allows you to set or disable the PCI Express Ports. Exit Menu The Exit menu allows users to load your system configuration with optimal or failsafe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the...
  • Page 74 SHB211 Socket P Half-Size SBC User’s Manual Load Optimal Defaults It automatically sets all Setup options to a complete set of default settings when you select this option. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the Optimal Setup options if your computer is experiencing system configuration problems.
  • Page 75 SHB211 Socket P Half-Size SBC User’s Manual MEMO AMI BIOS Setup Utility...

  • Page 76: Chpater 6 Installation Of Drivers

    CHPATER 6 INSTALLATION OF DRIVERS The device drivers are located on the Product Information CD-ROM that comes with the SHB211 Series package. The auto-run function of drivers will guide you to install the utilities and device drivers under a Windows system. You can follow the onscreen instructions to install...
  • Page 77 SHB211 Socket P Half-Size SBC User’s Manual 3. Refer to the Readme file below to view the system requirements and installation information. 3-1 Please wait while running the following setup operations. Installation of Drivers...
  • Page 78 SHB211 Socket P Half-Size SBC User’s Manual 3-2 Please wait while running the following setup operations. Installation of Drivers...
  • Page 79 SHB211 Socket P Half-Size SBC User’s Manual Click “Finish” to complete the setup process. You will be asked to reboot your computer when the installation is completed. Please click “Yes, I want to restart my computer now” if you don’t need to install any other drivers.

  • Page 80: Installing Audio Driver

    SHB211 Socket P Half-Size SBC User’s Manual Installing AUDIO Driver Run the InstallShield Wizard for Realtek High Definition Audio Driver from the driver directory in your driver CD. Click “Next” to next step. Installation of Drivers...
  • Page 81 SHB211 Socket P Half-Size SBC User’s Manual Click “Install” to start the installation, and wait while running the installation operation. Click “Finish” to complete the installation. Installation of Drivers...

  • Page 82: Installing Vga Driver

    SHB211 Socket P Half-Size SBC User’s Manual Installing VGA Driver 1. Run the SETUP.EXE program from the driver directory in your driver CD. Click “Next” to next step. (1-1) Installation of Drivers...
  • Page 83 SHB211 Socket P Half-Size SBC User’s Manual (1-2) (1-3) ® An Intel License Agreement appears to show you the important information. Click “Yes” to next step. Installation of Drivers...
  • Page 84 SHB211 Socket P Half-Size SBC User’s Manual The message of Readme File Information appears to show you the system requirements and installation information. Please click “Next”. 4. Please wait while running the following setup operations. When this message appears, please click “Next”. Installation of Drivers...
  • Page 85 SHB211 Socket P Half-Size SBC User’s Manual Click “Finish” to complete the setup process. You will be asked to reboot your computer when the installation is completed. Please click “Yes, I want to restart my computer now” if you don’t need to install any other drivers.

  • Page 86: Installing Lan Driver

    SHB211 Socket P Half-Size SBC User’s Manual Installing LAN Driver Run the InstallShield Wizard for Network connections from the driver directory in your driver CD. Click “Next” for next step. Installation of Drivers...
  • Page 87 SHB211 Socket P Half-Size SBC User’s Manual Click “Install” to start the installation. Please wait while running the following installation operation. Installation of Drivers...
  • Page 88 SHB211 Socket P Half-Size SBC User’s Manual Click “Finish” to complete the installation. Installation of Drivers...
  • Page 89 SHB211 Socket P Half-Size SBC User’s Manual MEMO Installation of Drivers...

  • Page 90: Appendix A Watchdog Timer

    SHB211 Socket P Half-Size SBC User’s Manual APPENDIX A WATCHDOG TIME Watchdog Timer Setting After the system stops working for a while, it can be auto-reset by the Watchdog Timer. The integrated Watchdog Timer can be set up in the system reset mode by program.
  • Page 91 SHB211 Socket P Half-Size SBC User’s Manual ↓ IF No re-set timer :WDT time-out, generate RESET IF to disable WDT :O 2E 30 O 2F 00 ; Can be disable at any time N=00 M= 00h: Time-out Disable 01h: Time-out occurs after 1 second 02h: Time-out occurs after 2 second 03h: Time-out occurs after 3 second ………………………........

  • Page 92: Appendix B Picmg V1.3 Interface Definition

    SHB211 Socket P Half-Size SBC User’s Manual APPENDIX B PICMG v1.3 INTE RFACE DEFINITION x16 PCIe Connector A x16 PCIe Connector C Side B Side A Side B Side A 1 N.C 1 USB0P 2 GND 2 USB0N 3 N.C 3 GND USB1P 4 N.C...
  • Page 93 SHB211 Socket P Half-Size SBC User’s Manual 29 REFCLK0+ 29 N.C 30 REFCLK0- 30 N.C 31 GND REFCLK1+ 31 N.C 32 RSVD REFCLK1- 32 N.C 33 REFCLK2+ 33 N.C 34 REFCLK2- 34 N.C 35 GND REFCLK3+ 35 N.C 36 RSVD REFCLK3- 36 GND 37 REFCLK4+...
  • Page 94 SHB211 Socket P Half-Size SBC User’s Manual Mechanical Key 64 GND a_PERn4 64 GND 65 a_PETp5 65 GND 66 a_PETn5 66 GND 67 GND a_PERp5 67 GND 68 GND a_PERn5 68 GND 69 a_PETp6 69 GND 70 a_PETn6 70 GND 71 GND a_PERp6 71 GND...
  • Page 95 SHB211 Socket P Half-Size SBC User’s Manual Mechanical Key 14 a_PETn10 14 CLKA CLKB 15 GND a_PERp10 15 +3.3V 16 GND a_PERn10 16 AD31 17 a_PETp11 17 AD29 +3.3V 18 a_PETn11 18 N.C AD30 19 GND a_PERp11 19 AD27 AD28 20 GND a_PERn11 20 AD25...
  • Page 96 SHB211 Socket P Half-Size SBC User’s Manual Mechanical Key 49 +12V +12V 49 AD00 Note Please contact your vendor to get the backplane design guide if it’s required. The backplane design guide is NDA required. PICMG v1.3 Interface Definition...

  • Page 97: Appendix C Configuring Sata For Raid Function

    SHB211 Socket P Half-Size SBC User’s Manual APPENDIX C CONFIGURING SATA FOR RAID FUNCTION Configuring SATA Hard Drive(s) for RAID ® Function (Controller: Intel ICH9M-E only) Please follow up the steps below to configure SATA hard drive(s): (1) Install SATA hard drive(s) in your system. (2) Enter the BIOS Setup to configure SATA controller mode and boot sequence.
  • Page 98 SHB211 Socket P Half-Size SBC User’s Manual (2)-1-1 Turn on your system, and then press the Del button to enter BIOS Setup during running POST (Power-On Self Test). If you want to create RAID, just go to the Advanced Settings menu/IDE configuration, select the Configure SATA#1 as, and press <Enter>...
  • Page 99 SHB211 Socket P Half-Size SBC User’s Manual (2)-1-2 A list of options appears, please select RAID. Configuring SATA for RAID Function...
  • Page 100 SHB211 Socket P Half-Size SBC User’s Manual (2)-2 Set CDROM for First Boot Device under the Boot Settings menu to boot CD-ROM after system restarts. (2)-3 Save and exit the BIOS Setup. Configuring SATA for RAID Function...
  • Page 101 SHB211 Socket P Half-Size SBC User’s Manual (3) Configuring RAID by the RAID BIOS Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed to Section 4 if you do not want to create a RAID. (3)-1 After the POST memory testing and before the operating system booting, a message "Press <Ctrl-I>...
  • Page 102 SHB211 Socket P Half-Size SBC User’s Manual (3)-3 After entering the CREATE VOLUME MENU screen, you can type the disk array name with 1~16 letters (letters cannot be special characters) in the item “Name”. When finished, press ENTER to select a RAID level. There are three RAID levels, RAID0, RAID1 and RAID5 &...
  • Page 103 SHB211 Socket P Half-Size SBC User’s Manual (3)-4 Set the stripe block size. The KB is the standard unit of stripe block size. The stripe block size can be 4KB to 128KB. After the setting, press ENTER for the array capacity. (3)-5 After setting all the items on the menu, select Create Volume and press ENTER to start creating the RAID array.
  • Page 104 SHB211 Socket P Half-Size SBC User’s Manual (3)-6 When prompting the confirmation, press “Y“ to create this volume, or “N“ to cancel the creation. After the creation is completed, you can see detailed information about the RAID Array in the DISK/VOLUME INFORMATION section, including RAID mode, disk block size, disk name, and disk capacity, etc.
  • Page 105 SHB211 Socket P Half-Size SBC User’s Manual Configuring SATA for RAID Function...
  • Page 106 SHB211 Socket P Half-Size SBC User’s Manual Delete RAID Volume If you want to delete a RAID volume, select the Delete RAID Volume option in Main Menu. Press ENTER and follow on-screen instructions. Please press [ESC] to exit the RAID BIOS utility. Now, you can proceed to install a SATA driver controller and the operating system.
  • Page 107 SHB211 Socket P Half-Size SBC User’s Manual (4) Making a SATA Driver Disk To install the operating system onto a serial ATA hard disk successfully, you need to install the SATA controller driver during the OS installation. Without the driver, the hard disk may not be recognized during the Windows setup process.
  • Page 108 SHB211 Socket P Half-Size SBC User’s Manual (4)-3 When the RAID Driver is written to the floppy disk, the SATA driver disk is completed. Note1 Please execute all of file of the f6flpy64 folder, if installing 64- bit Windows Operating System. Configuring SATA for RAID Function...
  • Page 109 SHB211 Socket P Half-Size SBC User’s Manual (5) Installing the SATA controller driver during the OS installation Now, the SATA driver disk is ready, and BIOS settings configured, you can proceed to install Windows 2000/XP onto your SATA hard drive using the SATA driver.
  • Page 110 SHB211 Socket P Half-Size SBC User’s Manual (5)-2 When you see the screen below, insert the floppy disk containing the SATA driver and press “S”. (5)-3 If the Setup correctly recognizes the driver of the floppy disk, a controller menu will appear below. Use the ARROW keys to select Intel(R) ICH8M-E/ICH9M-E SATA RAID Controller and press ENTER.
  • Page 111 SHB211 Socket P Half-Size SBC User’s Manual correct SATA driver again from the driver CD. Configuring SATA for RAID Function...
  • Page 112 SHB211 Socket P Half-Size SBC User’s Manual MEMO Configuring SATA for RAID Function...
