Page 1 Smart Camera FQ2-S/CH Series User's Manual Cat. No. Z337-E1-06...
Page 2 Neither is any liability assumed for damages resulting from the use of the information contained in this publication. Trademarks Sysmac and SYSMAC are trademarks or registered trademarks of OMRON Corporation in Japan and other countries for OMRON factory automation products. Microsoft, Windows, Windows Vista, Excel, and Visual Basic are either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
Page 3 Terms and Conditions Agreement (Please Read) Introduction User's Manual Installation and Connections Taking Images Setting Up Inspections Testing and Saving Settings Operation Convenient Functions Troubleshooting Appendices Smart Camera FQ2-S/CH...
Page 4: Terms And Conditions Agreement
Omron's exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
Page 5 Disclaimers Performance Data Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.
Page 6 Meanings of Signal Words The following signal words are used in this manual. Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or may result in serious injury or death. Additionally there may be significant property damage.
Page 7 Precautions for Safe Use The following points are important to ensure safety, so make sure that they are strictly observed. 1. Installation Environment • Do not use the product in environments where it can be exposed to inflammable/explosive gas. • To secure the safety of operation and maintenance, do not install the product close to high-voltage devices and power devices.
Page 8 5. Handling • Connector Cover Always attach the connector cover when you disconnect the cable. If you do not attach the connector cover, foreign matter may enter the connection, causing malfunctions or damage. • Lens Cap Always attach a C-mount lens cap to the lens mount when you remove the lens. If dust or dirt adhere to the imaging elements, false detection or failure may occur.
Page 9 Precautions for Correct Use Observe the following precautions to prevent failure to operate, malfunctions, or undesirable effects on product performance. 1. Installation Site Do not install this product in locations subjected to the following conditions: • Ambient temperature outside the rating •...
Page 10 Product manuals The information required to use the FQ2-S/CH Series is divided into two manuals by objective: “FQ2-S/CH Series User’s Manual” and “FQ2-S/CH Series User's Manual for Communications Settings”. Read each manual as appropriate for your objective.
Page 11: Editor's Note
Editor's Note Meaning of Symbols  Menu items that are displayed on the Touch Finder LCD screen, and windows, dialog boxes and other GUI elements displayed on the PC are indicated enclosed by brackets "[ ]". Visual Aids  Indicates points that are important to achieve the full product performance, Important such as operational precautions.
Page 12 MEMO FQ2-S/CH User’s Manual...
Page 13: Table Of Contents
Contents Terms and Conditions Agreement ........2 Editor's Note .
Page 14 3. Taking Images 3-1 Selecting a Sensor for Configuration ......74 3-2 Setting Conditions for Taking Images......75 3-3 Adjusting Image Quality .
Page 15 Perform OCR with creating dictionary (Model dictionary) ....168 Creating Model Dictionaries to Recognize Custom Characters ... 169 Setup Procedure for Model Dictionary .
Page 16 4-8 Inspecting with the Search Inspection Item ..... . 215 Search Inspection Item ......... . 215 Setup Procedure for the Search Inspection Item .
Page 17 4-12 Inspecting with the Edge Position Inspection Item ....271 Edge Position ..........271 Setup Procedure for Edge Position .
Page 18 4-16 Inspecting with the Area Inspection Item ......300 Area Inspection Item ..........300 Setup Procedure for Area .
Page 19 6. Operation 6-1 Starting Operation......... . . 352 Run Mode Display .
Page 20 7-6 Logging Measurement Data and Image Data ..... 392 Logging Procedure ..........393 Logging All Data (File Logging) .
Page 21 9. Appendices 9-1 Menu Tables..........438 Image Tab Page .
Page 22 9-3 Specifications and Dimensions ....... . 546 Sensor ............546 Touch Finder .
Page 23: Introduction
Introduction 1-1 FQ2-S/CH-series Sensors........22 1-2 Measurement Process ........26 1-3 Basic Operational Flow.
Page 24: Fq2-S/Ch-Series Sensors

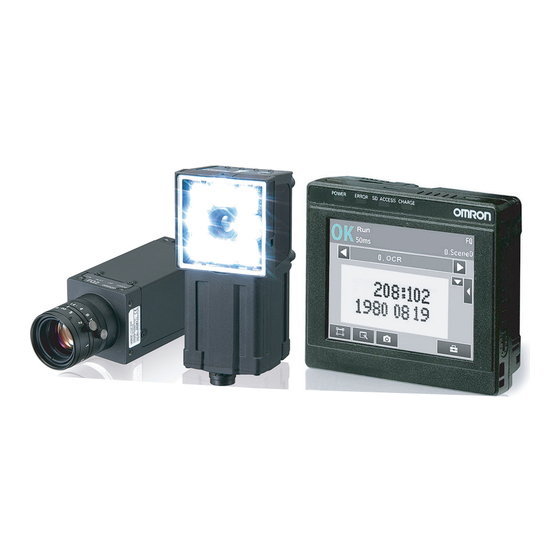

FQ2-S3 FQ2-S4 FQ2-CH Overview of FQ2-S/CH Series The FQ2-S/CH Series features Sensors with integrated cameras and controllers. They can be used to easily achieve simple inspections and measurements and to easily read and verify IDs You can use parallel controls, no-protocol communications on Ethernet, PLC Link communications on Ethernet, and EtherNet/IP communications on Ethernet as standard features.
Page 25 FQ2-S/CH Series types The FQ2-S Series sensor comes in a C-mount type that allows you to change the lens, and an integrated lighting type with built-in lighting. The FQ2-S/CH Series consists of the following lineup. • FQ2-S1/S2/S3 Series A standard full-function type to an easy-to-use single-functional type are available.
Page 26 • FQ2-S4 Series A standard type (350,000 pixels) to high-resolution types with substantially increased resolution (760,000 pixel type and 1.3 million pixel type) are available. Pixels 350,000 760,000 1,300,000 Type Sensors with Built-in Lighting Sensors with C-mounts Model FQ2-S4 FQ2-S4-M FQ2-S4- FQ2-S4-08 FQ2-S4-13 FQ2-S4-13M Number of simul-...
Page 27 • Comparison of functions by FQ2 Series model : Yes, : No Model Function FQ2-S1/S2 FQ2-S3 FQ2-S4 FQ2-CH     Bar code     2D-code     2D-code (DPM)     Search ...
Page 28: Measurement Process
1-2 Measurement Process FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH This section describes the basic flow of the measurement process. • The measurement is started by inputting a trigger signal from an external device. Trigger input • Images are taken according to the trigger. Take image •...
Page 29: Basic Operational Flow
Calculation Settings ([Inspect] Tab Page) Section 7 7-11 Setting the Retry Function Retry Details ([Inspect] Tab Page) (FQ2-S4/CH only) Sensor FQ2-S/CH Series User's Manual for Output Settings ([In/Out] Tab Page) Communications Settings (Cat No. Z338). Section 2 Controlling Operation and Outputting Data...
Page 30 The following commands are used for this purpose: • Run Mode settings • Terminal information get/set commands For details on each command, refer to the following. FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) 5-1 Command Control Basic Operational Flow FQ2-S/CH User’s Manual...
Page 31: Startup Display And Display Elements
1-4 Startup Display and Display Elements FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Startup Display When the Sensor and Touch Finder are powered on, the language selection display appears and then the Sensor List. Select the Sensor you want to connect, and press [OK]. Sensor connection processing takes place.
Page 32: Display Elements
When the Sensor is detected, the following display will appear. • The Setup Mode will appear if a Sensor that has not been set up is connected. • The Run Mode will appear if a Sensor that has been set up is connected.
Page 33: Installation And Connections
Installation and Connections 2-1 System Configuration ........32 2-2 Part Names and Functions .
Page 34: System Configuration
2-1 System Configuration FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Control PLC Setup Tool Touch Finder or PC Tool Industrial EtherNet/IP or Ethernet Switching Hub Standard Ethernet cable Standard Trigger sensor I/O control PLC Ethernet cable FQ2-S FQ2-S FQ2-CH1 24-V power supply Special Ethernet Cable I/O cable (RJ45/M12)
Page 35 Product Model number Remarks FQ2-S- FQ2-S- This is the Sensor. FQ Sensor FQ2-CH1M Touch Finder FQ2-D This is a setup console. The PC Tool can be used instead of the Touch Finder. If you register as a member, you can download the free PC Tool as a special service to purchasers.
Page 36 Important Do not connect network devices other than PLCs on the same network as the Touch Finder or computer. If another device is connected, the responsiveness of displays and settings of the Touch Finder or computer may become slow. Connection Compatibility Yes: Supported, No: Not supported Other connection Parallel communica-...
Page 37: Part Names And Functions
2-2 Part Names and Functions FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH FQ2-S- (Sensors with Built-in Lighting) FQ2-CH1-M (Sensors with Built-in Lighting) Name Description Lighting LEDs for illumination Camera lens This lens can be focused. I/O Cable connector An FQ-WD or FQ-WU I/O Cable is used to connect the Sensor to the power supply and external I/O.
Page 38 FQ2-S- (Sensors with C-mounts) Bottom Sensor Mounted to Base Name Description The C-mount lens and extension tube are attached here. Determine the C-mount lens mounting surface appropriate CCTV lens (C-mount lens) to use based on the field of view required for the size of the measurement object. Optical Diagrams: p.
Page 39 Touch Finder (11) (12) (10) Name Description POWER Lights green when the Touch Finder is turned ON. ERROR Lights red when an error occurs. 8-1 Error Histories: p.432 Operation indicators SD ACCESS Lights yellow when an SD card is inserted. Flashes yellow when the SD card is being accessed.
Page 40 Sensor Data Units Front Surface of Parallel Interface Back Surface of Parallel Interface RS-232C Interface Sensor Data Unit Sensor Data Unit Sensor Data Unit Name Description Sensor connector Connects to the FQ2-S3/S4/CH. Power supply and Connects to the 24-V power source and the ground line. ground terminal block Parallel I/O connector Connects to the I/O connector.
Page 41: Installation
2-3 Installation FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Installing the Sensor FQ2-S/FQ2-CH1-M (Sensors with Built-in Lighting) Installation Procedure Align the tabs on one side of the Mounting Brack- et with the slot on the Sensor. The FQ-XL Mounting Bracket can be attached to the back, side, or front of the Sensor.
Page 42: Mounting Bracket
Horizontal field of view The optical chart indicates the horizontal field of view. The vertical field of view depends on the Vertical field model as follows: of view FQ2-S@@@@@@/FQ2-CH1@@@@@-M: Approx. 60% of the horizontal field of view FQ2-S@@@@@@-08@: Installation distance (L) Approx.
Page 43: Fq2-S*-*** (Sensors With C-Mounts)
FQ2-S- (Sensors with C-mounts) Installation Procedure Directly Mounting the Sensor Mount the Sensor with M3 screws. Tightening torque: 0.54 N·m Effective depth of mounting holes: 4 mm Important Refer to the dimension drawings in the appendix for the positions of the screw holes. Mounting the Sensor to the Base You can attach the mounting base to the bottom, top, left, or right surface.
Page 44: Lens Selection
Lens Selection Use the following optical diagrams to determine the Lens, camera installation distance, and detection range. Optical Diagrams The following values are estimates only. Adjustment is required after installing the camera. 3Z4S-LE SV-H High-resolution, Low-distortion Lenses 3Z4S-LE 10000 SV-0614H SV-0814H SV-1214H SV-1614H...
Page 45 The X axis in the above optical diagrams represent field of view (mm) The Y axis represents the camera installation distance (mm) or WD (mm). These optical diagrams show the relationship between the detection range and installation distance for different CCTV Lenses. The values vary for each Lens.
Page 46 3Z4S-LE SV-H High-resolution, Low-distortion Lenses Lens model Focal length Brightness Maximum out- Total length Filter size side diameter 3Z4S-LE SV-0614H 6.1 mm F1.4 42 mm 57.5 mm M40.5 P0.5 3Z4S-LE SV-0814H 8.0 mm F1.4 39 mm 52.5 mm M35.5 P0.5 3Z4S-LE SV-1214H 12.3 mm F1.4...
Page 47 Macro Rings Macro rings are inserted between the Lens and the camera to adjust the focus. You can use up to seven macro rings to achieve the required thickness. Entention tube Model Maximum out- Thickness side diameter 7-piece set Thickness: 0.5 mm 1 mm 2 mm 5 mm...
Page 48: Installation Precautions
Installing the Touch Finder Installation Precautions Install the Touch Finder in the following orientation to allow sufficient heat dissipation. Do not mount it in the following orientations. Important • To improve ventilation, leave space on both sides of the Touch Finder. The distance between the Touch Finder and other devices should be at least that shown in the following diagram.
Page 49: Mounting To Din Track
Mounting to DIN Track Installation Procedure Press the slider on the Touch Finder to the top. Hook the clip at the top of the Touch Finder on to the DIN Track. Press the Touch Finder onto the DIN Track until the bottom clip clicks into place.
Page 50: Mounting To A Control Panel
Mounting to a Control Panel The Touch Finder can be mounted on a panel using the FQ-XPM Panel Mounting Adapter. Important • Always turn OFF the Touch Finder power before attaching or detaching the Panel Mount Adapter. Attaching or detaching with the power turned ON may cause a failure. Installation Procedure Set the Touch Finder in the Panel Mount Adapter.
Page 51 Removal Procedure Take off the 4 Panel Mount Adapter’s crews, then remove these Mounting Bracket. Mounting Bracket Remove the Touch Finder with the Panel Mount Adapter from the panel. Take off a cable from the Touch Finder. Press down the look, then you are able to unlock.
Page 52: Using The Touch Finder As A Portable Device (With Battery)
Using the Touch Finder as a Portable Device (with Battery) The Touch Finder with a Battery can be used as a portable device. Use the strap when carrying it to prevent dropping it. There are two types of straps (FQ-XH, sold separately), a Neck Strap and a Hand Strap. Hand Strap Neck Strap Attach the Mini-strap to the Touch Finder.
Page 53: Mounting To Din Track
Mounting Sensor Data Units Mounting to DIN Track Installation Procedure Lock the sliders at the top and bottom of the Sensor Data Unit. Press the slider on the Sensor Data Unit to the top. Hook the clip at the top of the Sensor Data Unit on to the DIN Track.
Page 54: Launching The Program For First Time
2-4 Launching the Program for First Time FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Set the Language settings at the first launch of TouchFinder or TouchFinder for PC. If you use Logging function or Calendar validation of OCR, Time settings is also required. Language settings The Language setting window appears at the first launch.
Page 55: Time Settings
Time settings When using the TouchFinder TouchFinder uses Day and Time information of your PC. (Run Mode) − [TF settings] Touch the Time settings of TouchFinder. Set day and time of TouchFinder. Touch the OK button. When you use the PC Tool If you want to change these, perform the following procedure: Click the Day and Time in Control Panel of Windows.
Page 56: Wiring
2-5 Wiring FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Wiring the Sensor Connect the I/O Cable to the I/O Cable connector located at the bottom of the Sensor. FQ2-S@@@@@@/FQ2-CH1@@@@@-M (Sensors with Built-in Lighting or Sensors with C-mounts) Brown Power supply Blue Black OUT0 (OR) Orange OUT1 (BUSY)
Page 57: I/O Signal Circuit Diagrams
I/O Signal Circuit Diagrams Brown Power supply (24 VDC) Brown Power supply (24 VDC) Pink TRIG Load Black OUT0 (OR) Gray Orange OUT1 (BUSY) Green Light blue OUT2 (ERROR) White 24 VDC Purple Blue GND (0V) Yellow Pink TRIG 24 VDC Gray Green Light blue...
Page 58 For the I/O connector harness, use an FQ-VP1 Parallel Cable for the FQ-SDU1 or a MIL-standard harness, such as the OMRON XZ2F. (The Cables are sold separately.) Pins 1 to 30 and pins 31 to 60 are for separate connectors. One FQ-VP1 is required for each connector.
Page 59 FQ-SDU10/SDU15 Terminal Signal Names Signal FQ-VP1 Function Signal FQ-VP1 Function Wire color Wire color COMOUT1 Brown Output signal com- COMIN0 Brown Input signal common mon (DO0 to DO15) (all inputs except TRIG) COMIN1 Input signal common (TRIG) Orange OUT Data output TRIG Orange Measurement trigger...
Page 60 You can select whether to turn the external lighting ON (Positive) or OFF (Negative) when the signal turns ON. (The setting is called the strobe output polarity.) FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) Section 2 Controlling Operation and Outputting Data with a Parallel Connection This control signal is used to turn ON external lighting when an image is taken.
Page 61 For the I/O connector harness, use an FQ-VP2 Parallel Cable for the FQ-SDU2 or a MIL-standard harness, such as the OMRON XZ2F. (The Cables are sold separately.) Pins 1 to 16 and pins 17 to 32 are for separate connectors. One FQ-VP2is required for each connector.
Page 62 FQ-SDU20/SDU25 Parallel Pin Signal Names Signal FQ-VP2 Function Signal FQ-VP2 Function Wire color Wire color Brown Command input COMIN0 Brown Input signal common (RESET and IN0 to IN5) Command input Orange Command input COMIN1 Input signal common (TRIG) Yellow Command input TRIG Orange Measurement trigger...
Page 63: Fq-Sdu20/Sdu25 Rs-232C Pin Signal Names
Pin numbers will depend on the external device being connected. Refer to the manual for the personal computer or PLC being connected. Use a compatible connector.　The followings are recommended items. Manufacturer Model Socket OMRON Corporation XM3D-0921 Hood OMRON Corporation XM2S-0911 Wiring The maximum cable length is 15m.
Page 64: Connection Method
Connection Method Align the connector with the socket and press it straight into place, then fix it with the screws on both sides of the connector. Important Turn OFF the power supply before connecting or disconnecting a Cable. Peripheral devices may be damaged if the cable is connected or disconnected with the power ON. I/O Signal Circuit Diagrams Output Circuit Input Circuit...
Page 65 Power Supply Specifications When a Switching Regulator Is Connected Use a power supply that meets the following specifications. (They are sold separately.) Description When connected to When connected to Item FQ2-S- or FQ2-S- FQ2-CH1-M Power supply voltage 24 VDC (21.6 to 26.4 V) Recommended Power Supplies S8VS-06024(24 VDC, 2.5 A) S8VS-03024 (24 VDC, 1.3 A)
Page 66 Turning ON the Touch Finder Remove the cover from the power switch on the left side of the Touch Finder. Press the switch toward ON. Power Supply Specifications Use a power supply that meets the following specifications. (The power supply is sold separately.) Item Description Power supply voltage...
Page 67: Charging The Battery
Charging the Battery This section describes how to charge and install the FQ2-D31 Battery and provides applicable precautions. Charge the Battery while it is attached to the Touch Finder. Use the AC adapter to charge the battery. Mounting the Battery in the Touch Finder Remove the screw from the battery cover on the top of the Touch Finder, slide the cover in the direction of the arrow, and open the battery...
Page 68 Note The Touch Finder will operate even if the AC adapter is connected when no battery is mounted in the Touch Finder. Important • If the Touch Finder (FQ2-D31) will be installed permanently or semi-permanently, remove the Battery (FQ-BAT1). If the rated temperature is exceeded with the Battery inserted, the protective circuit may activate and stop the Touch Finder.
Page 69: Setting Up Ethernet
2-6 Setting Up Ethernet FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Connecting to Sensors from the Touch Finder Configurations Consisting of Only Sensors and the Touch Finder When only Sensors and a Touch Finder are used, IP addresses are automatically assigned. No settings are required to use Ethernet. Connections on Existing Networks If a Sensor or Touch Finder is connected to a network where a PLC or computer is already connected, the Ethernet settings must be made compatible with the existing network.
Page 70: Connecting To Sensors From External Devices Such As Plcs
Set the IP address and subnet mask according to the network where the external devices, such as PLCs, are connected. Note If you connect OMRON CS/CJ-series PLCs to the Ethernet, the following Default IP addresses are assigned to the PLCs. • IP address: 192.168.250.node_address Setting Up Ethernet FQ2-S/CH User’s Manual...
Page 71: Connecting To Sensors From A Computer Using The Pc Tool
Connecting to Sensors from a Computer Using the PC Tool Configurations Consisting of Only Sensors and a Computer (PC Tool) If the configuration consists only of Sensors and a Touch Finder, set the network settings on the computer as described below. (No IP address settings are required on the Sensors.) The following procedure is for Windows 7.
Page 72 Select the Use the following IP address Option and enter the following IP address and subnet mask. • IP address: 10.5.5.101 • Subnet mask: 255.255.255.0 Click the [OK] Button. This completes the set- tings. Connections on Existing Networks Set the Ethernet settings of the Sensors and the computer (PC Tool) to the same settings as the existing network.
Page 73 Select the IP address to be used by PC Tool The computer IP address, subnet address, and Default gateway that are used by the PC Tool are displayed. If multiple IP addresses (network cards) exist in the computer, the IP address to be used for the PC Tool can be selected.
Page 74 MEMO Setting Up Ethernet FQ2-S/CH User’s Manual...
Page 75: Taking Images
Taking Images 3-1 Selecting a Sensor for Configuration ......74 3-2 Setting Conditions for Taking Images ......75 3-3 Adjusting Image Quality .
Page 76: Selecting A Sensor For Configuration
3-1 Selecting a Sensor for Configuration FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH If multiple Sensors are connected to a single Touch Finder or computer, a list of the Sensors that are connected is displayed by Default. Use the following procedure to change to the Sensor to set up. Press −...
Page 77: Setting Conditions For Taking Images
3-2 Setting Conditions for Taking Images FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH You can set the conditions for taking images to use in inspections. To enable accurate judgments, the following adjustments are made for the conditions for taking images and the images themselves.
Page 78: Adjusting Image Quality
3-3 Adjusting Image Quality FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Adjusting the Focus [Image] − [Camera setup] Display the Camera Setup Display. The focus can be seen as a numerical value. The higher the value, the better the focus. Focus Level Adjust the focus of the Sensor while checking Focus adjustment screw the image and focus value on the Touch Finder.
Page 79: Adjusting Image Brightness With External Lighting
If a Sensor Data Unit is connected, you can change the output time of the strobe trigger signal (STGOUT) to adjust the brightness. FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) Section 2 Controlling Operation and Outputting Data with a Parallel Connection Adjusting the Brightness You can adjust the shutter speed/gain or the brightness to make images brighter.
Page 80 ON while the measurement BUSY signal process is being executed. FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) Section 2 Controlling Operation and Outputting Data with a Parallel Connection Important If the gain is increased, the brightness will not be stable and measurement values may be inconsistent.
Page 81 When HDR Is OFF The brightness of the image is adjusted by adjusting the shutter speed. If the brightness cannot be improved by adjusting the shutter speed, the gain is adjusted. Relationship between the Shutter Speed/Gain and the Image Brightness (For FQ2-S3/S4 series) Dark Bright Brightness of image...
Page 82 − Press [ [Gain] on the right of the display. Move the bar to the left or right to adjust the gain. Moving it to the right will increase the gain and make the image brighter. Moving it to the left will reduce the gain and make the image darker.
Page 83 When HDR Is ON Set the brightness adjustment value. The higher the brightness adjustment value, the brighter the image. Dark Bright Brightness of image [Image] − [Camera setup] ] − [Brightness] on the right side of the display. Press [ Move the bar to the left or right to adjust the brightness.
Page 84: Taking Clear Images Of Moving Objects
Taking Clear Images of Moving Objects For quick moving objects, the effect of blurring can be reduced by decreasing the shutter speed. In HDR Mode, set the brightness value to a low setting. • Relationship between Shutter Speed and the Brightness Adjustment Value in HDR Mode Slow Fast Moving speed...
Page 85: Improving The Image Quality Of Metallic And Other Shiny Surfaces
Improving the Image Quality of Metallic and other Shiny Surfaces When objects with shiny surfaces are being measured, the lighting may be reflected off the surface and affect the image. To remove reflections, one of the following two functions can be used. Function Description If objects have contrasting light and dark areas, the dynamic range can be...
Page 86 [Image] − [Camera setup] ] − [HDR] on the right side of the display. Press [ Set the best level for the HDR Mode. As shown below, the higher the level, the wider the combined dynamic range will be. Level 1 Level 2 Level 3 Level 4...
Page 87: Adjusting The Colors Of The Image (White Balance) (Only For Sensors With Color Cameras)
• Mounting the Filter Hook the filter in the hole at the top of the Sensor. Using the top section as a pivot point, pull down the filter so that it attaches to the Sensor. Adjusting the Colors of the Image (White Balance) (Only for Sensors with Color Cameras) If external lighting is used, the image may appear as having different colors than the actual object.
Page 88: Rotating The Touch Finder Image By 180
Press the [Auto] Button. The Sensor will auto- matically adjust the colors. Move the bar to the left (light) or right (dark) to fine-tune the colors. Press [OK]. Rotating the Touch Finder Image by 180° You can rotate the Camera image by 180°. This setting also applies to re-measurement of logged images.
Page 89: Adjusting The Timing Of Taking Images
3-4 Adjusting the Timing of Taking Images FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Delaying the Image Capture Timing from the Trigger Input If the measurement object is moving, the position in the image of the feature that is to be measured will depend on the timing of the trigger signal.
Page 90 [Image] − [Trigger setup] − [Trigger delay] A TRIG signal is input. Images are input continuously. Select the image with the measurement object in the center using Press the image. Press [OK]. Setting item Setting value Description Range: 0 to 163ms Adjusts the time for opening the camera shutter after Trigger Trigger delay Default: 0...
Page 91: Adjusting External Lighting Timing
(STGOUT) to adjust the timing of the external lighting. FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) Section 2 Controlling Operation and Outputting Data with a Parallel Connection [Image] −...
Page 92 Change to the setup for to Sensor 1. 3-1 Selecting a Sensor for Configuration: p. 74 Press [Image] – [Trigger setup] – [Trigger delay]. Set the trigger input delay time for Sensor 1. Delaying the Image Capture Timing from the Trigger Input: p. 87 Important The delay time for preventing mutual interference must be longer than the shutter time.
Page 93: Adjusting The Images That Were Taken
3-5 Adjusting the Images That Were Taken FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Image Adjustment You can adjust the image that is taken by the Sensor to make it easy to measure. There are mainly the following two types of items that you can use to adjust the image. •...
Page 94 Image is taken on TRIG signal. (The image that is taken by the Camera.) Camera image Processed 0: Median (filter item) image Source image: Camera image [Camera] (process 0) 1: Dilate (filter item) Processed image Image (processes 0 and Source image: Previous image [Prev.] adjustment 2: Search Position Compensation (position compensation item) Processed image...
Page 95: Filtering The Images (Filter Items)
Filtering the Images (Filter Items) You can filter the images that are taken by the Camera to make them easier to measure. This is used in the following cases. • To cut unnecessary backgrounds so that they are not measured •...
Page 96 Selected filter item Description Extracts a specific range of brightness to increase the image contrast and suppress the unnecessary background. Example: Increasing Contrast Background Suppres- sion → Any areas that are outside of the specified range of brightness are removed as the background.
Page 97 Setting the Image to Filter (Source Image) You must set the image to which the filter is to be applied. [Image] − [Image adjustment] − [Add filter] − (Filter item to select) − Press [ [Source image] on the right of the display. Set the source image to [Camera] or [Prev.].
Page 98 Setting the Filter Type (for Color Gray Filter Only) You can specify the ranges of colors to which the Color Gray Filter item is applied. [Image] − [Image adjustment] − [Add filter] − [Color Gray Filter] − Press [ [Filter type] on the right of the display. Set the filter type to either [RGB] or [HSV].
Page 99 Press [OK]. Press [Back]. • RGB Parameter Setting Description • Red filter (Default) • Green filter • Blue filter • Cyan filter Filter settings • Magenta filter These filters achieve the same effect as when • Yellow filter using the selected optical filter. •...
Page 100 Setting the Brightness Range to Extract (for Background Suppression Item Only) The range in which to enhance the contrast and the brightness range to extract are set for the Background Suppression item. The Background Suppression item works as described below to suppress the background for the specified brightness range.
Page 101 • Enhancing the Contrast of a Specific Area You specify the location on the image to enhance the contrast. [Image] − [Image adjustment] − [Background Suppression] − [Modify] − Press [ [Suppression level] on the right of the display. Drag on the image to specify the location to emphasize the contrast.
Page 102 • Extracting Only a Specified Range of Brightness You set the upper and lower limits of the brightness range to extract with the Background Suppression item. [Image] − [Image adjustment] − [Background suppression] − [Modify] − Press [ [Suppression level] on the right Upper limit Lower limit of the display.
Page 103 Parameter Setting Description Set the upper and lower limit values of the background Common suppression level. The same limits will be used for all (common RGB setting) Range: 0 to 255 (Default) RGB colors. The range from the specified lower to upper limits is converted to 0 to 255.
Page 104: Compensating For Position Offset (Position Compensation Items)
Compensating for Position Offset (Position Compensation Items) Use position compensation items if the position or orientation of the measurement object is not consistent. When you use a position compensation item, the offset between the reference position and the position of the object is calculated and the position of the measurement region is corrected before measurements are performed.
Page 105 • Features of the Position Compensation Items Edge Position Compensation The position is corrected in either the X or Y direction. The position is offset in Edge Position only one direction. Compensation: p. 111 Two-edge Position Compensation The position is corrected at the The position is offset in same time in both the X and Y two directions.
Page 106 Applying the Results of Position Compensation You can apply the results of position compensation either to the Camera image or to the previous image from before position compensation was applied. If you apply the results of position compensation to the Camera image, only the position information from position compensation is applied to the image to be measured.
Page 107 • Source Image You can select the image to which to apply the results of position compensation processing. Applying the Results of Position Compensation p.104 • Interpolation You can select the precision of position compensation. If you select [Bilinear], the precision of position compensation will increase. [Image] −...
Page 108 • Using Filter Items for Processing with Position Compensation Items To more effectively perform position compensation, filter items can be used to create an image specifically for position compensation and then apply only the results of processing the position compensation to the image that will be measured.
Page 109 Shape Search lll Position Compensation With this position compensation item, an image pattern is registered in advance. When the registered image pattern is detected, the image is adjusted so that the image pattern is in the same position as when it was registered.
Page 110 • Interpolation You can select the precision of position compensation. If you select [Bilinear], the precision of position compensation will increase. [Image] − [Image adjustment] − [Search lll pos. comp.] − [Modify] − − Press [Details] [Scroll parameter] [Interpolation] Set the interpolation to [Bilinear] or [None]. Parameter Setting Description...
Page 111 Expression Data name Description Data range text string Correlation This is the correlation. 0 to 100 • Measurement Data That Can Be Logged The values below can be logged as measurement data. Parameter Setting Description -2: No judgement (not measured) Judgement 0: Judgement is OK This is the judgment result.
Page 112 • Interpolation Select the image to reflect the results of Interpolation processing to. If you select [Bilinear], the precision of position compensation will increase. [Image] − [Image adjustment] − [Search position comp.] − [Modify] − [Details] − [Scroll parameter] − [Interpolation] −...
Page 113 • Measurement Data That Can Be Logged The values below can be logged as measurement data. Parameter Setting Description -2: No judgement (not measured) Judgement 0: Judgement is OK -1: Judgement is NG This is the judgment result. -15: Out of range error Scroll X -99,999.9999 to 99,999.9999 This is the amount of position compensation for the X...
Page 114 [Image] − [Image adjustment] Press an unused number and then press [Add pos. comp.]. − Press [Edge] [Edge position comp.]. Make any detailed settings as required for the position compensation processing. Refer to Detailed Settings for Edge Position Compensation, below. Press [OK].
Page 115 • Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via Ethernet or used in calculations. Expression Data name Description Data range text string -2: No judgement (not measured) Judgement This is the judgement result.
Page 116 Two-edge Position Compensation This position compensation item detects edges in two directions. If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera), it is recognized as an edge. When an edge is recognized, the image is adjusted so that the edge appears at the position it was in when it was registered.
Page 117 • Detailed Settings for Two-edge Position Compensation The settings for the Two-edge Position Compensation item are almost the same as those for the Edge Position inspection item. Make the settings in the same way as for the Edge Position inspection item. 4-12 Inspecting with the Edge Position Inspection Item: p.
Page 118 • Source Image You can select the image to which to apply the results of position compensation processing. Applying the Results of Position Compensation: p.104 • Interpolation You can select the precision of position compensation. If you select [Bilinear], the precision of position compensation will increase. [Image] −...
Page 119 • Measurement Data That Can Be Logged The values below can be logged as measurement data. Parameter Setting Description -2: No judgement (not measured) Judgement 0: Judgement is OK This is the judgement result. -1: Judgement is NG -15: Out of range error Scroll X -99,999.9999 to 99,999.9999 This is the amount of position compensation for the X...
Page 120 Two-edge Midpoint Compensation This position compensation item detects edges in two directions. If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera), it is recognized as an edge. Two edge positions are detected. The image is adjusted so that the coordinates of the midpoint position of a line that connects the two detected edge positions matches the position when the edges were registered.
Page 121 • Detailed Settings for Two-edge Midpoint Compensation The settings for the Two-edge Midpoint Compensation item are almost the same as those for the Edge Position inspection item. Make the settings in the same way as for the Edge Position inspection item. 4-12 Inspecting with the Edge Position Inspection Item: p.
Page 122 • Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via Ethernet or used in calculations. Expression Data name Description Data range text string -2: No judgement (not measured) Judgement...
Page 123 • Measurement Data That Can Be Logged The values below can be logged as measurement data. Parameter Setting Description -2: No judgement (not measured) Judgement 0: Judgement is OK This is the judgement result. -1: Judgement is NG -15: Out of range error Scroll X -99,999.9999 to 99,999.9999 This is the amount of position compensation for the X...
Page 124 Edge Rotation Position Compensation This position compensation item detects an edge in two directions. If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera), it is recognized as an edge. Two edge positions are detected. The image is adjusted so that the two edge positions match the positions when the edge positions were registered.
Page 125 • Detailed Settings for Edge Rotation Position Compensation The settings for the Edge Rotation Position Compensation item are almost the same as those for the Edge Position inspection item. Make the settings in the same way as for the Edge Position inspection item. 4-12 Inspecting with the Edge Position Inspection Item: p.
Page 126 • Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via Ethernet or used in calculations. Expression Data name Description Data range text string -2: No judgement (not measured) 0: Judgement is OK...
Page 127 • Measurement Data That Can Be Logged The values below can be logged as measurement data. Parameter Setting Description -2: No judgement (not measured) Judgement 0: Judgement is OK This is the judgement result. -1: Judgement is NG -15: Out of range error Scroll q -180 to 180 This is the amount of position compensation.
Page 128 − At the right of the screen, press [Image rotation] or [Parameter] to open the set- tings screen. Parameter Setting Description Image rotation Select to correct the position by rotating the image around the center of the screen. Position Compensation Select to specify the amount of position compensation from the Parameter reference position and the measurement position.
Page 129 Parameter Setting Description Angle Range: -180 to 180 Rotates the image clockwise around the Default: 90 center of the screen. To rotate 90° counterclockwise, enter -90. Range: -99,999 to 99,999 Defaults: 376 on the 　　　　　FQ2-S1***** 　FQ2-S2***** 　FQ2-S4***** 　FQ2-S4*****-M 　FQ2-CH 640 on the 　...
Page 130 Parameter Setting Description Range: -99,999 to 99,999 Defaults: 376 on the 　FQ2-S1***** 　 FQ2-S2***** 　FQ2-S4***** 　FQ2-S4*****-M 　FQ2-CH 640 on the 　 FQ2-S3*****-08* 　 FQ2-S4*****-08* 　FQ2-S3*-13* Measurement position 　FQ2-S4*-13* [Position] Sets the measurement position. Range: -99,999 to 99,999 Defaults: 240 on the 　...
Page 131 ・Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via the Ethernet or used in calculations. Expression Data name Description Data range text string -2: No judgement (not measured) Judgement...
Page 132 Press [Value] − [Linear Corr.]. ] − [Meas. position] at the right of the Press [ screen to open the settings screen. Drag the vertices of the displayed figure to set the points to be used for correction. Press [OK]. Press [ ] −...
Page 133 Set to the same settings as the measurement position settings, and drag the vertices of the displayed figure to bring the measurement po- sition that you just set to the correct position. Press [OK]. Press [Back]. • Edit Region You can set the range for position correction. [Image] −...
Page 134 • Source Image You can select the image to which to apply the results of position compensation processing. You can set the image for position compensation for each position compensation item. [Image] − [Image adjustment] − [Linear Corr.] − [Modify] Press [ ] −...
Page 135: Setting Up Inspections
Setting Up Inspections 4-1 Inspection Item Selection Guide ......134 4-2 Setup Procedure for Inspection Items ..... . . 137 4-3 Configuring Inspection Items.
Page 136: Inspection Item Selection Guide
230 FQ2-S1 Search lll FQ2-S2 FQ2-S3 FQ2-S4 Detecting positions with pat- Measurement objects of the same color and pattern can be Search p. 215 detected. FQ2-S1 terns FQ2-S2 FQ2-S3 OMRON OMRON FQ2-S4 Inspection Item Selection Guide FQ2-S/CH User’s Manual...
Page 137 Inspec- Compati- tion items ble mod- Inspection Example used Dividing the measurement area Judging minute differences in Sensitive p. 259 and judging according to shapes printed labels Search FQ2-S1 for each division FQ2-S2 LED RADIATION DO NOT STARE INTO BEAM FQ2-S3 Max.65mW 400-700nm...
Page 138 Inspec- Compati- tion items ble mod- Inspection Example used Judging according to shapes Judging the number of labels Labeling p. 310 and quantities FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Inspection Item Selection Guide FQ2-S/CH User’s Manual...
Page 139: Setup Procedure For Inspection Items
4-2 Setup Procedure for Inspection Items FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH The basic steps for setting up inspection items are shown below. Configuring Inspection Items Step 1 Teaching Step 2 Setting Judgement Parameters Step 3 If measurements are unstable Setting Detailed Items Step 4 Re-teaching Step 5...
Page 140: Configuring Inspection Items
4-3 Configuring Inspection Items FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Adding New Inspection Items Press [Inspect] − [Inspection]. Press an unused inspection item number. Press [Add item.] on the menu. Select an inspection item, such as [Search]. When registering multiple inspection items, press the inspection item number after 1.--- and set it in the same way.
Page 141: Modifying Existing Inspection Items
Note If more than seven inspection items are set, drag the icon at the bottom of the menu upward to display the next inspection item numbers. Modifying Existing Inspection Items Press the number of the inspection item to be set. Press [Modify] on the menu.
Page 142: Reading With Ocr
4-4 Reading with OCR FQ2-S4 FQ2-CH Character String Recognition Character recognition is used to read characters in input images as character information based on font information that is registered in the Sensor in advance. The characters that were read can be output to an external device.
Page 143: Setup Procedure For Character Recognition
Setup Procedure for Character Recognition The setup for character recognition is performed in the following order. The basic settings to recognize characters are made. Teaching • Character format (number of characters, alphanumeric characters or symbols, etc.) • Measurement region • Detailed parameters to recognize characters (These are set automatically.) Settings are made to check whether the characters that were read from the workpiece were recognized correctly.
Page 144 Step 2 Teaching In this Teaching function, specifying Measurement region, Character color, Printing type and Correct string, the measurement parameters for OCR are set automatically. Touch [TEACH]. Capture the characters for recolonization. Move the rectangle around the character string to read, and then press [OK]. The measurement region will be set.
Page 145 Select [Printing type]. When the [Cancel] is touched, the all settings will be discarded, and then window will return to the previous setting. Item Setting Item Description • Solid character Printing type Select Printing type for the character to inspect. •...
Page 146 Enter your attempted correct string, and then touch [OK]. Acceptable strings: 0 to 9 A to Z ‘ (apostrophe) - (hyphen) . (period) : (colon) / (slash) 　　　　　　　　 () (parentheses) Press [TEACH] on the lower-right window. The Measurement parameters for OCR will be set automatically. Measurement Parameters That Are Automatically Set by Teaching: p.
Page 147 The following table gives detailed specifications for the character format. Item Description Numbers: 0 to 9 Letters: A to Z Symbols: ‘ (apostrophe), - (hyphen), . (period), : (colon), / (slash), () (parentheses) Wildcards You can use wildcards to specify characters. For example, you can use wildcards to pre- vent incorrect recognition of 0 (zero) and O (the letter O).
Page 148 Step 3 Setting the Judgment Parameters Settings are made to check whether the characters that were read from the workpiece were recognized correctly. Differences between the references that were taught for character recognition and the actual result of reading the characters are detected and conditions are set to determine how accurately characters are read. [Inspect] [Inspection] [OCR]...
Page 149 Item Parameter Setting Description 0 to 1000 Sets the similarity of the read characters that is to be judged as OK. If any of the characters in the read character string has a similarity that Similarity Default is lower than the set value, the judgment will be NG. Upper limit: 100 To judge incomplete or worn characters as NG, set a high upper limit Lower limit: 60...
Page 150 Step 4 Setting the Verification Conditions Register the character string based on read character match to specific character string. Matching Mode, select Direct input, Calender Matching, or Code Matching. Parameter Setting Description Direct Input the verification strings as a Master data, A maximum of 32 types of registered Master data can be simultaneously verified.
Page 151 Specify the Verification String with Direct Input [Inspect] − [Inspection] − [Add item.] − [OCR] − [Settings] Tab Page Touch [Verification]. Touch [Matching Mode], and then select [Direct Input]. Touch [Master data regist.]. Touch the master data to register. You can use any of the following three methods to register character strings in the master data from the menu display.
Page 152 Note On FQ2-S4 Series, you can set the [Item ref.] verification condition to check if characters that are printed near a bar- code or 2D code match the contents of the barcode or 2D code. Place the inspection item to read the barcode or 2D code to check before the OCR inspection item and then specify the [Item ref.] verification condition for the OCR inspection item.
Page 153 Specify the Verification String with Build-in Calender Touch [Verification]. Touch [Matching Mode]. Touch [Calender Matching]. Touch [Master data regist.]. FQ2-S/CH User’s Manual Reading with OCR...
Page 154 Touch lines, a soft keyboard appears. Enter your attempt date to each lines. Enter formats of the alphabetical characters or date to be read. Examples of Acceptable Formats To recognize the text string "2014/01/01," enter "2014/01/01" in the string format area. To recognize four-digit numbers, enter as [####], where each "#"...
Page 155 Specify the Verification String in Code Matching Function [Inspect] − [Inspection] − [Add item.] − [OCR] − [Settings] Tab Page Touch [Verification]. Touch [Matching Mode]. Touch [Code Matching]. Touch [Master data regist.]. FQ2-S/CH User’s Manual Reading with OCR...
Page 156 Touch [Item ref.], and then select the Code Matchin items to refer. Touch Line number for verification. Set the Verification region as necessary. Touch [Back]. Reading with OCR FQ2-S/CH User’s Manual...
Page 157 Parameter Setting Description Direct Input (Default) Matching mode Calendar Matching Select your attempted Matching mode. Code Matching The following registered func- tion before setting of item ref. Item ref. Use this parameter when you set the latest result as a verifica- Bar code tion string.Specify the Processing item for the verification string.
Page 158: Setting The Measurement Parameters
Setting the Measurement Parameters When you perform teaching, the measurement parameters are set automatically. If you obtain incorrect reading results with the automatic settings, set the measurement parameters manually. [Inspect] − [Inspection] − [OCR] − [Details] Tab Page − [Meas. parameter] Detailed Parameters Parameter Setting...
Page 159 • Important When loading Scene data from an older version, the [Legacy Mode] Setting appears above the measurement parameters. The [Legacy Mode] allows for Scene data, or Dictionary data created with software versions older than ver. 2.10 to be usable with ver. 2.02, or later software. The Dictionary data created with the old software version can only be used with Scene data also created from the old software version.
Page 160: Limiting Readable Characters
・Executing Teach function, parameters are set automatically The following parameters in measurement parameters, are automatically set by executing Teach function. Parameter Setting Parameter Setting Character color Manual Rotation compensation Auto Printing type Manual Slant compensation Auto Dot ver. interval Auto Max Width Setting Auto Dot ver.
Page 161: Setting Date Parameter
Setting Date Parameter Set the date, time or update setting. ［Inspect］−［Inspection］−［Add item.］−［Details］tab−［Date parameter］ Touch [Period setting], and then set Year, Month and Day. Item Setting Description Year Range : 0 to 99 Default；0 Month Range : 0 to 99 Set the usage period from the current date. Default；0 Range : -999 to 999 Default；0...
Page 162 Note Use the following examples as reference for setting of the date parameter. E.g.1 Measurement is performed on 9/30, and the period setting is: Year: 1, Month: 1, Day: 1. [Month→Day]: A month is added to 9/30, and the result will be 10/30. A day is added to 10/30, and the result will be 10/31.
Page 163 　　Touch [Common Setting], and then set Auto Update, Back margin and Ahead margin. Item Setting Description Select the condition for updating the date. The time is always updated. Not update The date is not automatically updated. Update the date using the menu. First Update •...
Page 164 Download the Code data edit tool from the OMRON website. For registration of OMRON website, confirm the SYSMAC ID ***** that comes with Sensor. The following explanation of settings is for the example of an October date encrypted as X.
Page 165 Select the code file (CSV format) to be loaded in the file selection screen, and click [OK].The code file is loaded and displayed on the screen. Click [Save]. Set Code Data using PC Since the Code data file is complicated, it is best to edit it using a PC. Once an empty CSV file is saved , edited on a PC and then re-loaded, it can most efficiently be used.
Page 166 Enter file name, and them touch [OK]. (Default file name; code.csv) Code File Format • “Item” appears on the 1st line. • “Flag” appears on the 2nd line. To use the item, set “1”. • On the 3rd and following lines, the code corresponding to each number appears. The month and day start from “1”.
Page 167 Loading a Code File ［Setup］−［Load from file］ Touch [Code data]. Touch Code data number to load. Select the Code data. Touch [Yes]. FQ2-S/CH User’s Manual Reading with OCR...
Page 168: Confirm The Code Data Name
Confirm the Code Data Name The current Code data name can be confirmed with the following steps. ［Inspect］−［Inspection］−［Add item］−［OCR］−［Detail］tab Touch [Code data]. The Code data file name is displayed. Reading with OCR FQ2-S/CH User’s Manual...
Page 169: Set Or Acquire The Date And Time
Set or Acquire the Date and Time Since the Sensor does not have date and time information, setting or acquirement of date and time is necessary for Calendar Matching function. Set or acquire the Date and Time by any the following methods. Set the Date and Time information automatically when TouchFinder is connected to the Sensor.
Page 170: Confirm The Date And Time Information
Confirm the Date and Time information Date and Time information of Sensor is displayed. Sensor Date and Time information will be initialized when the Sensor restarts. ［Setup］−［Sensor settings］−［Current Day/Time］ Touch [Current Date/Time]. Date and Time information is displayed. Perform OCR with creating dictionary (Model dictionary) Characters in special fonts cannot be read correctly with the built-in dictionary.
Page 171: Creating Model Dictionaries To Recognize Custom Characters
Creating Model Dictionaries to Recognize Custom Characters Use the dictionary customize after adding [OCR] to Inspection item and finishing TEACH. Configure model dictionary settings in the order below. Specify OCR inspection item, and then acquire the measure- Set and Acquire OCR ment region and measurement parameters.
Page 172: Setup Procedure For Model Dictionary
Setup Procedure for Model Dictionary Creating a Dictionary Press the Tool Button, and then [Model dic- tionary]. Press the dictionary in which to register characters. Press [Modify] on the menu. Press [Add]. Reading with OCR FQ2-S/CH User’s Manual...
Page 173 − [Load OCR setting]. Touchpress Touch inspect item to acquire the measure- ment range or measurement parameters. To change Extraction range, − [Extraction reg.] on the right press of the display. Specify the region to extract and press [OK]. The measurement region can contain character strings on up to four lines.
Page 174 To extract characters based on a specified character format, press − [Modify chara.] on the right of the display. To edit the measurement parameters, − [Meas. Parameter] at the right of press the screen. Setting the Measurement Parameters: p. 156 Important The model dictionary [Printing type] settings must match the inspection item [OCR] settings.
Page 175 The extracted characters will be displayed on the upper left of the display. If characters are not displayed even you touch [Extraction] button, back Step 7 and retry to. Press [OK] to register the characters. The characters are registered for the corre- sponding character type.
Page 176 Displaying Registered Characters To display the registered characters, select the characters on the upper left of the display. The registered characters will be displayed. Deleting Registered Characters Select the character that you want to delete in the customized dictionary registration display. Press [Delete].
Page 177 Setting Dictionary Parameters [Inspect] − [Inspection] − [Add item.] − [OCR] − [Details] Tab Page Touch [Dictionary param.]. Touch [Dictionary ref.] and select the dictionary to use. Touch [Individual char.] and select the figure numerical, alphabet, or symbol that you want to exclude from the reading target.
Page 178: Outputting Read Characters To An External Device
Refer to the description for the communications format for the setting procedure and output specifications to output the character string. Sensor FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) • Section 2 Controlling Operation and Outputting Data with a Parallel Connection •...
Page 179: Measurement Data That Can Be Used For External Outputs And Calculations
Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via Ethernet or used in calculations. Expression Data name Description Data range text string -2: No judgment (not measured) 0: Judgment is OK -1: Judgment is NG Judgement...
Page 180: Measurement Data That Can Be Logged For Ocr
Measurement Data That Can Be Logged for OCR Parameter Setting Description -2: No judgment (not measured) 0: Judgment is OK Judgement -1: Judgment is NG This is the judgment result. -11: Model does not match -13: Measurement time out -16: Measurement timeout error, -17: Format not entered error Similarity 0 to 100...
Page 181: Reading Barcodes
4-5 Reading Barcodes FQ2-S4 Bar Codes You can read barcodes. You can also verify if the character string that was read from the barcode matches a registered character string. You can output the result of reading a barcode and the verification result to an external device. The following ten code types can be read.
Page 182: Setup Procedure For Bar Code
Setup Procedure for Bar Code Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Bar code]. 4-3 Configuring Inspection Items: p. 138 Note Drag the arrow ( ) at the bottom of the menu to display all of the inspection items.
Page 183 Step 2 Teaching For teaching, the region to measure and the barcode within that region are set as read conditions. You can also register the contents that was read from the barcode as a verification condition in the master data. [Inspect] −...
Page 184 Note You can use the menu commands that are displayed for at the right of the display to adjust the settings that resulted from teaching. • [Insp. region]: You can change the measurement region. • [Camera setup]: You can adjust the Camera focus, brightness, and other factors to input a better image. Adjusting Image Quality: p.
Page 185 You can use any of the following three methods to register character strings in the master data from the menu display. [Auto]: Registers a character string from an actual barcode in the master data. The procedure is essentially the same as the procedure for teaching in step 2. [Manual]: Registers a character string that is entered directly in the master data.
Page 186 Setup Item Setting Value Description OFF(Default) Sets whether to verify the character string that was read from the barcode against a character string that is registered in the master All master data Verif. master data data. To verify the read character string against the master data, select Master data 0 to 31 the character string to use for verification.
Page 187: Reflect In Total Judgment
Note ASCII code table The following table shows the ASCII codes that can be used for manual registration of master data and also for registering characters of Limits. Upper 4 bits Lower 4 bits Reflect in Total Judgment You can specify whether to reflect the verification result of a barcode inspection item in the overall judgment. (The Default setting is [Yes].) [Inspect] −...
Page 188: Detail Settings
Detail Settings When you execute TEACH, the measurement parameters are automatically set according to the read cords. [Inspect] − [Inspection] − [Add item.] − [Bar code] − [Details] Tab Page Press [Meas. parameter], and set the measurement parameters. Be sure to always specify the code type. Specify other items as necessary. If master data is automatically registered, the code type, the composite codes on/off setting, and the read direction are automatically set.
Page 189: Changing The Character String That Is Output For Read Errors
Changing the Character String That Is Output for Read Errors You can change the character string that is output for read errors. [Inspect] − [Inspection] − [Add item.] − [Bar code] − [Details] Tab Page − [Output parameter] − [Error string] Setup Item Setting Value Description...
Page 190: Outputting Read Characters To An External Device
Refer to the description for the communications format for the setting procedure and output specifications to output the character string. Vision Sensor FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) • Section 2 Controlling Operation and Outputting Data with a Parallel Connection •...
Page 191: Measurement Data That Can Be Logged (Bar Code)
Measurement Data That Can Be Logged (Bar Code) The following values can be logged as measurement data. Measured item Range of value Description −2: No judgement (not measured) Judgement 0: Judgement is OK This is the judgment result from the measurements. −1: Judgement is NG −16: Measurement timeout error Num.
Page 192: Reading 2D-Codes
4-6 Reading 2D-codes FQ2-S4 2D-codes You can read 2D codes. You can also verify whether the character string that was read from the 2D code matches a registered character string. You can output the result of reading a 2D code and the verification result to an external device.
Page 193: Setup Procedure For 2D-Code
Setup Procedure for 2D-code Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [2D-code]. 4-3 Configuring Inspection Items: p. 138 Note Drag the arrow ( ) at the bottom of the menu to display all of the inspection items. Step 2 Teaching For teaching, the region to measure and the 2D code within that region are set as read conditions.
Page 194 Press [TEACH] on the lower right of the display. The result of reading the 2D code that was displayed will be displayed along with a confir- mation dialog box for registration in the master data. Press [Yes] to register the read result in the master data. The master data contains the character strings from the 2D codes that are registered to verify whether the read character strings match specific character strings.
Page 195 Step 3 Judgement condition adjustment Settings can be made to check whether the characters that were read from the workpiece were recognized correctly. Differences between the references that were taught for 2D code reading and the actual result of 2D code reading are detected and conditions are set to determine how accurately 2D codes are read.
Page 196 Step 4 Setting Verification Conditions You can register a character string from a 2D code to use it to verify that the character string that was read from a 2D code matches the registered character string. You can register up to 32 character strings for verification in the master data.
Page 197 [Item ref.]: Select this item to use the immediately preceding read results as the verification character string. The following inspection items can be used as references: Bar code, 2D-code, 2D- code (DPM), and OCR. You cannot reference an inspection item at an item number that is after the item number of the inspection item that you are editing.
Page 198: Reflect In Total Judgment
Note ASCII code table The following table shows the ASCII codes that can be used for manual registration of master data and also for registering characters of Limits. Upper 4 bits Lower 4 bits Reflect in Total Judgment You can specify whether to reflect the verification result of a 2D code inspection item in the overall judgment. (The Default setting is [Yes].) [Inspect] −...
Page 199: Outputting Read Characters To An External Device
Refer to the description for the communications format for the setting procedure and output specifications to output the character string. Vision Sensor FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) • Section 2 Controlling Operation and Outputting Data with a Parallel Connection •...
Page 200: Changing The Character String That Is Output For Read Errors
Refer to the following section for the loca- tion of the output area for the character string and other details. Vision Sensor FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) Section 1 Overview of Communication Specifications Changing the Character String That Is Output for Read Errors You can change the character string that is output for read errors.
Page 201: Unstable Reading Results
Unstable Reading Results Reading Is Unstable Due to Low Contrast Adjust the brightness to improve the contrast of the 2D code. Adjusting the Brightness: p. 77 Measurement Data That Can Be Used for External Outputs and Calculations Expression Data name Description Data range text string...
Page 202: Measurement Data That Can Be Logged (2D Code)
Measurement Data That Can Be Logged (2D Code) The following values can be logged as measurement data. Measured item Range of value Description −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG Judgement This is the judgment result from the measurements. −16: Measurement timeout error Num.
Page 203: Reading 2D Codes (Dpm)
4-7 Reading 2D Codes (DPM) FQ2-S4 2D Codes (DPM) You can read DPM (direct part marking) 2D codes. You can also verify whether the character string that was read from the 2D code matches a registered character string. You can output the result of reading a 2D code and the verification result to an external device. The scan result and verification result can be externally output.
Page 204: Setup Procedure For 2D-Code (Dpm)
Setup Procedure for 2D-code (DPM) Step 1 Select the Inspection Item [Inspect] - [Modify] Press an unused inspection item number and press [Add item.]. Press [2D-code (DPM)]. 4-3 Configuring Inspection Items: p. 138 Note Drag the arrow ( ) at the bottom of the menu to display all of the inspection items.
Page 205 Step 2 Teaching For teaching, the region to measure and the 2D code within that region are set as read conditions. You can also register the contents that was read from the 2D code as a verification condition in the master data. Step 4 Setting the Verification Conditions: p.
Page 206 Press [Yes] to register the read result in the master data. The master data contains the character strings from the 2D codes that are registered to verify whether the read character strings match specific character strings. Press the master data in which the read characters will be registered. Press [Back] to end teaching.
Page 207 Step 3 Setting the Judgement Parameters Settings are made to check whether the characters that were read from the workpiece were recognized correctly. Differences between the references that were taught for reading the 2D code and the actual result of reading the 2D code are detected and conditions are set to determine how accurately characters are read.
Page 208 Press [OK] to enter the values. Note You can specify whether to reflect the judgment result of the judgment conditions for character recognition in the overall judgment. (The Default is to reflect them.) [Inspect] − [Inspection] − [Add item.] − [2D-code (DPM)] − [Details] Tab Page − [Output parameter] −...
Page 209 Step 4 Setting the Verification Conditions You can register a character string from a 2D code to use it to verify that the character string that was read from a 2D code matches the registered character string. You can register up to 32 character strings for verification in the master data.
Page 210 Note Check the table of ASCII characters to see what characters can be registered.You cannot enter two-byte characters, one-byte Kana characters, and control codes. You can use the following characters as wildcards. *: A wildcard for a character string of 0 or more characters ?: A wildcard for one character ASCII code table: p.
Page 211 Note ASCII code table The following table shows the ASCII codes that can be used for manual registration of master data and also for registering characters of Limits. Upper 4 bits Lower 4 bits FQ2-S/CH User’s Manual Reading 2D Codes (DPM)
Page 212: Detailed Parameters
Detailed Parameters When you execute TEACH, the measurement parameters are automatically set corresponded read code. [Inspect] - [Inspection] - [Add item] - [2D-code (DPM)] - [Details] Tab Page - [Meas. Parameter] Measurement Parameters Parameter Setting Description DataMatrix Code type QR Code Sets the type of code to be scanned.
Page 213 Parameter Setting Description Shape: Square 10 × 10, 12 × 12, 14 × 14, 16 × 16, 18 × 18, 20 × 20, 22 × 22, 24 × 24, 26 × 26, 32 × 32, 36 × 36, 40 × 40, Cell (DataMatrix only) 44 ×...
Page 214: Outputting Read Characters To An External Device
Refer to the description for the communications format for the setting procedure and output specifications to output the character string. Vision Sensor FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) • Section 2 EtherNet/IP • Section 3 PLC Link •...
Page 215: Measurement Data That Can Be Used For External Outputs And Calculations
Measurement Data That Can Be Used for External Outputs and Calculations Expression Data name Data range Description text string −2: No judgment (not measured) 0: Judgment is OK This is the judgment result. −1: Judgment is NG Judgment −16: Measurement timeout error −2: No verification pattern or reading The verification result (master data No.) is out- Index...
Page 216: Inspection Data That Can Be Logged
Inspection Data that Can be Logged The following values can be logged as inspection data. Inspection item Value range Description −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG Judgement This is the judgment result from the measurements. −16: Measurement timeout error Contrast 0 to 100...
Page 217: Inspecting With The Search Inspection Item
4-8 Inspecting with the Search Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Search Inspection Item This inspection item is used to perform inspections for shapes or for presence. The image pattern that is to be measured is registered in advance and measurements are performed to see if the pattern is present or if the shape is different.
Page 218: Setup Procedure For The Search Inspection Item
Setup Procedure for the Search Inspection Item Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Search]. Registering inspection items: p. 138 Note Drag the arrow at the bottom of the menu upward to display all of the inspection items. Inspecting with the Search Inspection Item FQ2-S/CH User’s Manual...
Page 219 Step 2 Teaching Teaching means to store the region and partial image as reference data for the measurement. [Inspect] − [Add item.] − [Search] − [Settings] Tab Page − [Inspection] Press [Teach]. Drag a corner to Drag the rectangle size the rectangle. to move it.
Page 220 Step 3 Adjusting Judgement Parameters − [Add item.] − [Search] − [Settings] Tab Page [Inspect] − [Inspection] Press [Judgement]. Press each parameter and set the range that is to be If more than one result was detected, you judged as OK. Set the range for each of the following can switch to a display for each result.
Page 221: Increasing Measurement Position Accuracy
Note • You can change the output form for each measurement value to one of the following settings. ] − [Result type] on the right of the display. Press Absolute value (Default): The measured coordinates are output. Relative value : The difference from the reference position is output as coordinates. •...
Page 222: Obtaining Multiple Results Simultaneously
Obtaining Multiple Results Simultaneously You can detect all items that satisfy the extraction conditions. Judgment is performed for all detected results. [Inspect] − [Inspection] − [Search] − [Modify] − [Details] Tab Page − [Meas. Parameter] Press [Multi-point output] and select [Yes]. Press [Sorting method] and select the conditions by which to sort the detected results.
Page 223: Select The Results To Output
Select the Results to Output You can use multiple conditions to determine which results to output from all the objects detected with a correlation at the candidate level or higher. Only the results that meet all the specified conditions are output. [Inspect] −...
Page 224: Reflect In Total Judgment
Reflect in Total Judgment You can specify whether to reflect the judgment results of an inspection item in the overall judgment. (The Default is to reflect them.) [Inspect] − [Inspection] − [Add item.] − [Search] − [Details] Tab Page − [Output parameter] Unstable Search Results Inclined Measurement Objects Adjust the [Angle range] parameter to increase the range in which a search is made for the model.
Page 225 Correlation Is Inconsistent Due to Low Contrast Adjust the brightness to improve the contrast of the mark. Adjusting the Brightness: p. 77 Correlation Is Inconsistent Due to Variations in the Measurement Object Inconsistent portions can be masked so that they are omitted from matching. Masking Parts of the Model: p.
Page 226: Increasing Processing Speed
Increasing Processing Speed The following two methods can be used to reduce processing time. • Reduce the range in which a search is performed for the model. Changing the measurement region: p. 227 • Reduce the angle range setting. Adjust the [Angle range] parameter to reduce the range in which a search for the model is performed. Setting the angle range: p.
Page 227 Changing the Model Registration Region to a Shape Other Than a Rectangle One rectangular region is registered as the Default model registration region. Other than rectangles, circles and polygons can be set as the model registration regions. − [Search] − [Modify] − [Settings] Tab Page − [Teach] − [Inspect] −...
Page 228 Masking Parts of the Model The model registration region can be formed freely by combining enabled and disabled regions. Example: Figure 1: Enabled range Figure 2: Disabled range The gray section is the model region. Figure 3: Enabled range − [Search] − [Modify] − [Settings] Tab Page − [Teach] − [Inspect] −...
Page 229 Fine-tuning the Position of the Region This section describes the console which is useful to fine-tune the position of the measurement region or the model registration region in 1-pixel increments. − [Search] − [Modify] − [Settings] Tab Page − [Teach] − [Inspect] −...
Page 230 Changing Output Coordinate Positions You can specify which part of the model to detect as coordinates during inspections. Normally, the center position of the registered model is used as the detection point. [Inspect] − [Inspection] − [Search] − [Modify] − [Settings] Tab Page − [Teach] − [ ] − [Detection point] Use one of the following methods to move the Drag the cross cursor.
Page 231: Errors
Expression Data name Description Data range text string Reference X −99,999.9999 to 99,999.9999 This is the X coordinate of the position where the model was registered. Reference Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the position where the model was registered. Reference angle −180 to 180 This is the angle when the model was...
Page 232: Inspecting With The Shape Search Iii Inspection Item
4-9 Inspecting with the Shape Search III Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Shape Search II Inspection Item This function is for detecting user-defined target to estimate target position and pose precisely. The correlation value indicating the degree of similarity, measurement target position, and orientation can be output. In shape search III, edge information is used as features, whereas in a normal search mode, color and texture information are used.
Page 233: Setup Procedure For The Shape Search Iii Inspection Item
Setup Procedure for the Shape Search III Inspection Item Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Shape Search III]. Registering inspection items: p. 138 Note Drag the arrow at the bottom of the menu upward to display all of the inspection items.
Page 234 Step 2 Teaching Teaching means to store the region and partial image as reference data for the measurement. − [Add item.] − [Shape Search III] − [Settings] Tab Page [Inspect] − [Inspection] Press [Teach]. Drag a corner to Drag the rectangle size the rectangle.
Page 235 Note The following settings can be changed from the menus in the lower-right of the screen. • [Model region]: Editing the Model and Measurement Regions p.224. Changing the Measurement Region p. 227 [Insp. region] : [Detection point]: Changing Output Coordinate Positions p.228 [Edge extraction]: When Edge cannot be detected at model region p.241 [Display setting]: the following images can be selected.
Page 236 Step 3 Adjusting Judgment Parameters − [Add item.] − [Shape Search] − [Settings] Tab Page [Inspect] − [Inspection] Press [Judgement]. If more than one result was detected, you can switch to a display for each result. (Multi-point output must be enabled.) Press each parameter and set the range that is to be judged as OK.
Page 237: Obtaining Multiple Results Simultaneously
Note • You can change the output form for each measurement value to one of the following settings. ] − [Result type] on the right of the display. Press Absolute value (Default): The measured coordinates are output. Relative value: The difference from the reference position is output as coordinates. •...
Page 238 Selection item Setting Description Sorts the results in order from the smallest correlation Corr. ascending order to the largest.Candidate level has priority when Candi- (ascending order of correlation value) date level is lower than lower value of Judgment condi- tion. Measurement value will be zero if the correlating value is lower than Candidate level.
Page 239: Select The Results To Output
Select the Results to Output You can use multiple conditions to determine which results to output from all the objects detected with a correlation at the candidate level or higher. Only the results that meet all the specified conditions are output. [Inspect] −...
Page 240: Reflect In Total Judgment
Reflect in Total Judgment You can specify whether to reflect the judgment results of an inspection item in the overall judgment. The Default is to reflect them. [Inspect] − [Inspection] − [Add item.] − [Shape Search III] − [Details] Tab Page − [Output parameter] Unstable Shape Search III Results Inclined Measurement Objects...
Page 241 When the Edge cannot be detected correctly If you cannot detect the Edge correctly, adjust the Edge parameters. [Inspect] − [Inspection] − [Shape Search III] − [Modify] − [Details] Tab Page − [Measure parameter] Touch [Edge level auto], and then select [OFF]. Set [Edge level].
Page 242 The size difference of work piece is large If the correlation value is significantly lower when the variation of target shapes may be large, increase the Acceptable distortion level. 　[Inspect] - [Inspection] - [Add item.] - [Shape Search lll] - [Details] tab page - [Meas.
Page 243 When Edge cannot be detected at model region Change the Edge setting when the Edge cannot be detected at Model registration or the detected Edge is broken. After changing the Edge setting, retry to register the Model. [Inspect] - [Inspection] - [Add item.] - [Shape Search lll] - [Settings] tab page - [Teach] Touch [Edge setting] on the upper-right window.
Page 244 Correlation Is Inconsistent Due to Low Contrast Adjust the brightness to improve the contrast of the mark. Adjusting the Brightness: p. 77 Correlation Is Inconsistent Due to Variations in the Measurement Object Inconsistent portions can be masked so that they are omitted from matching. Model masking: p.
Page 245: Increasing Processing Speed
Increasing Processing Speed The following two methods can be used to reduce processing time. • Reduce the range in which a shape search III is performed for the model. Changing the Measurement Region: p. 227 • Reduce the Angle range setting. Adjust the [Angle range] parameter to reduce the range in which a shape search II for the model is performed.
Page 246: Editing The Model Regions And Measurement Region
Editing the Model Regions and Measurement Region Changing the Model Regions This section describes how to edit the model regions. You can edit the model region in the same way as for a search region. Changing the Model Registration Region to a Shape Other Than a Rectangle: p.
Page 247: Measurement Data That Can Be Used For External Outputs And Calculations
Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via the Ethernet or used in calculations. Expression Data name Data range Description text string −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG...
Page 248: Measurement Data That Can Be Logged
Measurement Data That Can Be Logged The following values can be logged as measurement data. Parameter Range of value Description 0: Judgement is OK −1: Judgement is NG Image error -10: −13: Teaching not performed error Judgement This is the measurement judgment results. −14: Figure not registered error −15: Out of range error Correlation...
Page 249: Inspecting With The Shape Search Ii Inspection Item
4-10 Inspecting with the Shape Search II Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Shape Search II Inspection Item This inspection item is used to search for the portion of the input image that most closely resembles an image pattern that is called a model. The model is registered in advance based on a characteristic feature of the measurement object.
Page 250: Setup Procedure For The Shape Search Ii Inspection Item
Setup Procedure for the Shape Search II Inspection Item Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Shape Search II]. Registering inspection items: p. 138 Note Drag the arrow at the bottom of the menu upward to display all of the inspection items.
Page 251 Step 2 Teaching Teaching means to store the region and partial image as reference data for the measurement. [Inspect] − [Add item.] − [Shape Search II] − [Settings] Tab Page − [Inspection] Press [Teach]. Drag a corner to Drag the rectangle size the rectangle.
Page 252 Step 3 Adjusting Judgment Parameters − [Add item.] − [Shape Search] − [Settings] Tab Page [Inspect] − [Inspection] Press [Judgement]. If more than one result was detected, you can switch to a display for each result. (Multi-point output must be enabled.) Press each parameter and set the range that is to be judged as OK.
Page 253: Obtaining Multiple Results Simultaneously
Obtaining Multiple Results Simultaneously You can detect all items that satisfy the extraction conditions. Judgment is performed for all detected results. [Inspect] − [Inspection] − [Shape Search II] − [Modify] − [Details] Tab Page − [Meas. Parameter] Press [Sorting method] and select the conditions by which to sort the detected results.
Page 254: Select The Results To Output
Select the Results to Output You can use multiple conditions to determine which results to output from all the objects detected with a correlation at the candidate level or higher. Only the results that meet all the specified conditions are output. [Inspect] −...
Page 255: Reflect In Total Judgment
Reflect in Total Judgment You can specify whether to reflect the judgment results of an inspection item in the overall judgment. The Default is to reflect them. [Inspect] − [Inspection] − [Add item.] − [Shape Search II] − [Details] Tab Page − [Output parameter] Unstable Shape Search II Results Inclined Measurement Objects...
Page 256 Searching for Other Locations If the model image consists of detailed graphic images, similar models may be detected. For more accurate detection, consider the followings. • Set [Model mode] to [Stable] ise [Candidate level]. • Ra • Increase the Candidate level Increasing the [Candidate level], limit the detected model.
Page 257: Increasing Processing Speed
Increasing Processing Speed The following two methods can be used to reduce processing time. • Reduce the range in which a shape search II is performed for the model. Changing the Model Regions: p. 227 • Reduce the angle range setting. Adjust the [Angle range] parameter to reduce the range in which a shape search II for the model is performed.
Page 258: Editing The Model Regions And Measurement Region
Editing the Model Regions and Measurement Region Changing the Model Regions This section describes how to edit the model regions. You can edit the model region in the same way as for a search region. Changing the Model Registration Region to a Shape Other Than a Rectangle: p.
Page 259 Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via the Ethernet or used in calculations. Expression Data name Description Data range text string −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG...
Page 260: Errors
Measurement Data That Can Be Logged The following values can be logged as measurement data. Parameter Range of value Description 0: Judgement is OK −1: Judgement is NG Judgement −13: Teaching not performed error This is the measurement judgment results. −14: Figure not registered error −15: Out of range error Correlation...
Page 261: Inspecting With The Sensitive Search Inspection Item
4-11 Inspecting with the Sensitive Search Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Sensitive Search Inspection Item This inspection item automatically divides the registered model into smaller areas and performs matching for details. The lowest correlation for all of the divisions is output. A sensitive search is suitable when the differences between the model image and measurement image are too small to produce differences in correlations with a normal search.
Page 262: Setup Procedure For The Sensitive Search Inspection Item
Setup Procedure for the Sensitive Search Inspection Item Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Sensitive Search]. Registering inspection items: p. 138 Note Drag the arrow at the bottom of the menu upward to display all of the inspection items. Inspecting with the Sensitive Search Inspection Item FQ2-S/CH User’s Manual...
Page 263 Step 2 Teaching Teaching means to store the region and partial image as reference data for the measurement. [Inspect] − [Add item.] − [Sensitive Search] − [Settings] Tab Page − [Inspection] Press [Teach]. Drag the rectangle Drag a corner to to move it.
Page 264 Step 3 Adjusting Judgement Parameters − [Add item.] − [Sensitive Search] − [Settings] Tab Page [Inspect] − [Inspection] Press [Judgement]. Upper limit Lower limit Press each parameter and set the range that is to be judged as OK. Set the range for each of the following parameters.
Page 265: Reflect In Total Judgment
Parameter Setting Description Range: 0 to 100 Set the correlation range that is to be judged as OK. If Correlation Default: Lower: 60, Upper: 100 the correlation in the measurement results is 0, the judgment will be NG regardless of the setting of the lower limit.
Page 266: Increasing Measurement Position Accuracy
Increasing Measurement Position Accuracy You can increase the accuracy of measurement positioning. You can calculate down to four decimal places. [Inspect] − [Inspection] − [Sensitive Search] − [Modify] − [Details] Tab Page − [Meas. Parameter] Press [Sub-pixel] and select [Yes]. Select the Results to Output Only objects with a correlation that is higher than the specified candidate level are output.
Page 267: Changing The Number Region Divisions
Changing the Number Region Divisions You can change the number of divisions of the registered model. [Inspect] − [Inspection] − [Sensitive Search] − [Modify] − [Details] Tab Page − [Model parameter] − [Sub-model number] Parameter Setting Description • 3 × 3 Sub-model number Sets the number of divisions of the registered model.
Page 268: Unstable Search Results
Unstable Search Results Inclined Measurement Objects Adjust the [Angle range] parameter to increase the range in which a search is made for the model. The Search inspection item judges whether an image is OK or NG according to the correlation with a previously registered image pattern.
Page 269: Increasing Processing Speed
Increasing Processing Speed The following two methods can be used to reduce processing time. • Reduce the range in which a search is performed for the model. Changing the measurement region: p. 227 • Reduce the angle range setting. Adjust the [Angle range] parameter to reduce the range in which a search for the model is performed. Setting the angle range: p.
Page 270: Editing The Model Regions And Measurement Region
Editing the Model Regions and Measurement Region Changing the Model Regions This section describes how to edit the model regions. You can edit the model region in the same way as for a search region. Changing the Model Registration Region to a Shape Other Than a Rectangle: p.
Page 271 Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via the Ethernet or used in calculations. Expression Data name Description Data range text string −2: No judgment (not measured) 0: Judgment is OK This is the judgment result of the sensi-...
Page 272: Errors
Measurement Data That Can Be Logged The following values can be logged as measurement data. Parameter Range of value Description −2: No judgment (not measured) Judgement 0: Judgment is OK This is the judgment result of the sensitive search. −1: Judgment is NG Correlation 0 to 100 Correlation...
Page 273: Inspecting With The Edge Position Inspection Item
4-12 Inspecting with the Edge Position Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Edge Position This inspection item is used to inspect positions. For example, it can be used to see if a label is attached at the correct position or if a product is set in the correct position. Places where the color changes greatly are called edges.
Page 274: Setup Procedure For Edge Position
Setup Procedure for Edge Position Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Edge position]. Registering inspection items: p. 138 Note Drag the arrow at the bottom of the menu upward to display all of the inspection items. Inspecting with the Edge Position Inspection Item FQ2-S/CH User’s Manual...
Page 275 Step 2 Teaching Teaching means to store the region and the edge position in the region as reference data for the measurement. [Inspect] − [Add item.] − [Edge Position] − [Settings] Tab Page − [Inspection] Press [Teach]. The arrow in the middle shows the direction for detecting an edge.
Page 276 Step 3 Adjusting Judgment Parameters − [Add item.] − [Edge Position] − [Settings] Tab Page [Inspect] − [Inspection] Press [Judgement]. Lower limit Upper limit Press the parameters and set the range that is to be judged as OK. The measurement value is displayed next to the param- eter name.
Page 277: Reflect In Total Judgment
Reflect in Total Judgment You can specify whether to reflect the judgment results of an inspection item in the overall judgment. The Default is to reflect them. [Inspect] − [Inspection] − [Add item.] − [Edge Position] − [Details] Tab Page −...
Page 278: Unstable Edge Position Results
Unstable Edge Position Results There Is an Edge But It Cannot Be Detected [Inspect] − [Inspection] − [Edge Position] − [Modify] − [Details] Tab Page − [Meas. Parameter] − [Edge Level] Parameter Setting Description Color diff. / density diff. (%) Range: 0 to 100 Default: 50 Set the color change level to detect as an edge.
Page 279 Noise Is Mistaken as an Edge [Inspect] − [Inspection] − [Edge Position] − [Modify] − [Details] Tab Page − [Meas. Parameter] − [Noise Level] Parameter Setting Description Sets the density level to be considered as noise. Sensors with Color Cameras Only If the difference between the maximum and minimum color Range: 0 to 442 changes in the region is below the noise level, it will be...
Page 280 Screen Display When the Edge Level and Noise Level Are Changing A bar showing the threshold level moves up and down on the graphic as the edge level/noise level value changes. A cross-key cursor will also appear at the detected edge position. Edge level (Blue) Noise level (Yellow) Screen display when the edge level are changing.
Page 281: Increasing Processing Speed For Edge Position
Item Parameter Description Color IN Detects as an edge any position where the color changes from another color to the specified color. Detection mode Color OUT Detects as an edge any position where the color changes from the specified color to another color. Beginning Beginning Ending...
Page 282: Measurement Data That Can Be Used For External Outputs And Calculations
Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via the Ethernet or used in calculations. Expression Data name Description Data range text string −2: No judgement (not measured) 　0: Judgement is OK −1: Judgement is NG...
Page 283: Measurement Data That Can Be Logged For Edge Position
Measurement Data That Can Be Logged for Edge Position The following values can be logged as measurement data. Measured item Range of value Description 0: Judgement is OK −1: Judgement is NG −13: Teaching not performed error Judgement This is the measurement judgment results. −14: Figure not registered error −15: Out of range error D.
Page 284: Inspecting With The Edge Width Inspection Item
4-13 Inspecting with the Edge Width Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Edge Width Inspection Item This inspection item is used to measure dimensions. Places where the color changes greatly are called edges. The distance between two edges is called the edge width. Sample Settings Sample Measurement Edges are searched from...
Page 285 Step 2 Teaching Teaching means to store the region and the edge width in the region as reference data for the measurement. [Inspect] − [Add item.] − [Edge Width] − [Settings] Tab Page − [Inspection] Press [Teach]. The middle arrow is the direction for detecting an edge.
Page 286 Step 3 Adjusting the Judgement Parameters [Inspect] − [Add item.] − [Edge Width] − [Settings] Tab Page − [Inspection] Press [Judgement]. Lower limit Upper limit Set the D. Width range for an OK judgement. Continuous measurements will be performed for the im- ages that are displayed.
Page 287: Changing Edge Detection Conditions (Sensors With Monochrome Cameras Only)
Changing Edge Detection Conditions (Sensors with Monochrome Cameras Only) You can change the measurement conditions for Sensors with Monochrome Cameras. Change the [Density change] and [Measurement method] parameters. p. 275 Reflect in Total Judgment You can specify whether to reflect the judgment results of an inspection item in the overall judgment. The Default is to reflect them.
Page 288: Measurement Data That Can Be Used For External Outputs And Calculations
Measurement Data That Can Be Used for External Outputs and Calculations The following values can be output to external devices or used in calculations as measurement data. Expression Data name Description Data range text string −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG Judgement...
Page 289: Errors
Errors Errors in Teaching A teaching error message will appear if the edge position cannot be detected when teaching. Perform the following. • If the color of the measurement object has changed from the specified color, set the color again and try teaching again.
Page 290: Inspecting With The Edge Pitch Inspection Item
4-14 Inspecting with the Edge Pitch Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Edge Pitch Inspection Item This inspection item is used to detect edges through changes in brightness within a region. Edges of the specified color in one measurement area are found and the number objects, object width, and pitch are output.
Page 291 Step 2 Teaching Teaching means to store the region as reference data for the measurement. − [Add item.] − [Edge Pitch] − [Settings] Tab Page [Inspect] − [Inspection] Press [Teach]. Place the object that is to be used as the mea- The middle arrow is the direction surement reference in front of the camera.
Page 292: Changing Edge Detection Conditions (Sensors With Monochrome Cameras Only)
Item Parameter Setting Description Range : 0 to 1000 Edge pitch Defaults: Lower: Upper: 1000 Range : 0.0000 to 99,999.9999 Set the range that is to be judged OK for Average pitch Defaults: Lower: 0.0000 each parameter. Upper: 99,999.9999 Max. pitch Range : 0.0000 to 99,999.9999 (maximum pitch) Defaults: Lower:...
Page 293: Unstable Edge Pitch Results (Sensors With Color Cameras Only)
Unstable Edge Pitch Results (Sensors with Color Cameras Only) If the measurement result is not stable, adjust the [Edge level], [Noise level], and [Set color.] parameters. p. 276 Increasing Edge Pitch Processing Speed Make the measurement region smaller to reduce the processing time. Changing the measurement region: p.
Page 294: Measurement Data That Can Be Logged For Edge Pitch
Measurement Data That Can Be Logged for Edge Pitch The following values can be logged as measurement data. Measured item Range of value Description −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG Judgement This is the judgement result from the measurements. −13: Teaching not performed error −14: Figure not registered error −15: Out of range error...
Page 295: Inspecting With Color Data Inspection Item
4-15 Inspecting with Color Data Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Color Data Inspection Item This inspection item is used to perform inspections for foreign matter with a different color or for presence. The region is set for a portion of the image with the color that is to be measured. This region is called the measurement region.
Page 296: Setup Procedure For Color Data Inspection Item
Setup Procedure for Color Data Inspection Item Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Color Data]. Registering inspection items: p. 138 Note Drag the arrow at the bottom of the menu upward to display all of the inspection items. Inspecting with Color Data Inspection Item FQ2-S/CH User’s Manual...
Page 297 Step 2 Teaching Teaching means to store the region and the average color in the region as reference data for the measurement. [Inspect] − [Add item.] − [Color Data] − [Settings] Tab Page − [Inspection] Press [Teach]. Drag the rectangle to move it. Drag a corner to size the rectangle.
Page 298 Step 3 Adjusting Judgment Parameters − [Add item.] − [Color Data] − [Settings] Tab Page [Inspect] − [Inspection] Press [Judgement]. Upper limit Lower limit Press the parameters and set the range that is to be judged as OK. The measured value is displayed beside the parameter name.
Page 299: Reflect In Total Judgment
• Sensors with Color Cameras Only Item Parameter Setting Description Color difference 0 to 442 Sets the upper and lower limits of the difference between the average color and reference color that is to be judged as OK. Color deviation 0 to 221 Set the upper and lower limits of the range of the deviation in the region that is to be judged as OK.
Page 300: Measurement Data That Can Be Used For External Outputs And Calculations
Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via the Ethernet or used in calculations. Expression Data name Description Data range text string −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG...
Page 301: Measurement Data That Can Be Logged (Color Data)
Measurement Data That Can Be Logged (Color Data) The following values can be logged as measurement data. Measured item Range of value Description 0: Judgement is OK, −1: Judgement is NG −10: Image error Judgement −13: Teaching not performed error −14: Figure not registered error This is the measurement judgment results.
Page 302: Inspecting With The Area Inspection Item
4-16 Inspecting with the Area Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Area Inspection Item This inspection item is used to measure sizes. It measures the amount of a color within the measurement region. The size is calculated as a number of pixels and it is called the area. Sample Settings Sample Measurement Judges according to the...
Page 303: Setup Procedure For Area
Setup Procedure for Area Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Area]. Registering inspection items: p. 138 Note Drag the arrow at the bottom of the menu upward to display all of the inspection items. FQ2-S/CH User’s Manual Inspecting with the Area Inspection Item...
Page 304 Step 2 Teaching Teaching means to store the region and the color area in the region as reference data for the measurement. − [Add item.] − [Area] − [Settings] Tab Page [Inspect] − [Inspection] Press [Teach]. Drag the rectangle Drag a corner to to move it.
Page 305 Step 3 Adjusting Judgment Parameters − [Add item.] − [Area] − [Settings] Tab Page [Inspect] − [Inspection] Press [Judgement]. Lower limit Upper limit Press the parameters and set the range that is to be judged as OK. The measured value is displayed beside the parameter name.
Page 306: Reflect In Total Judgment
Note • You can change the output form for each measurement value to one of the following settings. − [Result type] on the right of the display. Press Absolute value (Default): The measured coordinates are output. Relative value: The difference from the reference position is output as coordinates. Ratio: The percentage of the reference value is output.
Page 307 Extraction Is Automatically Performed for an Undesired Color When Teaching Manually set the color for which to measure the area. [Inspect] − [Inspection] − [Area] − [Modify] − [Settings] Tab Page − [Teach] • Sensors with Color Cameras Only ] − [Set color] on the right of the dis- Press [ play.
Page 308 Note Measuring More Than One Color Set the colors using the color palette. Press [ ] – [Color palette] on the Set Color Display to display the color palette. Up to four colors can be specified. If the Color inv. Option is selected, the color outside the region will become the selected color. If the Inv.
Page 309 • Sensors with Monochrome Cameras (or for a Color Gray Filter) ] − [Set color] on the right of the display. Press [ Press [ ] − [Binary level]. Specify the range of brightness to detect, and then press [OK]. Specify the range of brightness to convert to a bina- ry image.
Page 310: Increasing Processing Speed For Area
Changing the Area Detection Conditions You can fill in the area detected through color extraction or binary conversion to perform a stable extraction of the areas and their characteristics or to mark only areas inside the measurement region for inspection. [Inspect] −...
Page 311: Measurement Data That Can Be Used For External Outputs And Calculations
Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via the Ethernet or used in calculations. Expression Data name Description Data range text string −2: No judgement (not measured) 0: Judgement is OK This is the judgement result.
Page 312: Inspecting With The Labeling Inspection Item
4-17 Inspecting with the Labeling Inspection Item FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Labeling One region of the color you want to measure is counted as a Label. You can sort these labels by position or size, and assign numbers to them. You can then output the total number of labels, and size and position of a desired label.
Page 313: Setup Procedure For Labeling Inspection Item
Setup Procedure for Labeling Inspection Item Step 1 Selecting the Inspection Item [Inspect] − [Inspection] Press an unused inspection item number and press [Add item.]. Press [Labeling]. Registering Inspection Items: p. 138 Note Drag the arrow at the bottom of the menu upward to display all of the inspection items. FQ2-S/CH User’s Manual Inspecting with the Labeling Inspection Item...
Page 314 Step 2 Teaching Teaching means to register the region and label characteristics in that region as reference data for measurements. • Sensors with Color Cameras Only − [Add item.] − [Labeling] − [Settings] Tab Page [Inspect] − [Inspection] Press [Teach]. Drag the rectangle to move it.
Page 315 The following data is stored as the measurement reference. Item Parameter Description Reference area The area for label 0 to use as a reference is set automatically. Reference position X The gravity position X for label 0 to use as a reference is set automati- cally.
Page 316: Unstable Labeling Results
Unstable Labeling Results The Desired Color Cannot Be Detected Add a specific color or enlarge the color range. Extraction Is Automatically Performed for an Undesired Color When Teaching Manually set the color for which to measure the labeling. [Inspect] [Area] [Modify] [Settings] Tab Page [Teach]...
Page 317 Note Measuring More Than One Color Set the colors using the color palette. Press [ ] – [Color palette] on the Set Color Display to display the color palette. Up to four colors can be specified. If the Color inv. Option is selected, the color outside the region will become the selected color. The [Inv.] Check Box applies to all colors.
Page 318 • Sensors with Monochrome Cameras (or for a Color Gray Filter) ] − [Binary level] on the right of the display. Press [ Specify the range of brightness to detect, and then press [OK]. Specify the range of brightness to convert to a bina- ry image.
Page 319: Changing The Label Detection Conditions
Changing the Label Detection Conditions You can fill in the labels detected through color extraction or binary conversion to perform a stable extraction of the labels and their characteristics or to mark only labels inside the measurement region for inspection. [Inspect] −...
Page 320: Changing The Label Extraction Conditions
Changing the Label Extraction Conditions Set the label extraction conditions. You can select to extract only labels that satisfy all four of the following: Number of labels, specified area, gravity X, and gravity Y conditions. [Inspect] [Labeling] [Modify] [Settings] Details [Details] Tab Page −...
Page 321: Sorting Extracted Labels
Sorting Extracted Labels Set the sort condition and count for extracted labels. You can set the sort condition and the maximum number of detections for detection results. [Inspect] − [Inspection] − [Labeling] − [Modify] − [Details] Tab Page − [Meas. Parameter] Press [Sorting method].
Page 322: Editing The Measurement Region
Editing the Measurement Region This section describes how to edit the measurement regions. You can edit the measurement region in the same way as for a search region. Changing the Model Registration Region to a Shape Other Than a Rectangle: p. 225 Measurement region Important If the measurement region is changed, perform teaching if required.
Page 323: Measurement Data That Can Be Used For External Outputs And Calculations
Measurement Data That Can Be Used for External Outputs and Calculations The following values can be used as measurement data and output to external devices via the Ethernet or used in calculations. Expression Data name Description Data range text string −2: No judgement (not measured) 0: Judgement is OK...
Page 324: Measurement Data That Can Be Logged For Labeling
Measurement Data That Can Be Logged for Labeling You can select to log any of the following values. Measurement item Range of value Description 0: Judgement is OK −1: Judgement is NG −13: Teaching not performed error Judgement This is the measurement judgement results. −14: Figure not registered error −15: Out of range error Number of labels...
Page 325: Calculations And Judgments Using Inspection Item Data
4-18 Calculations and Judgments Using Inspection Item Data FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH You can set inspection item judgment results and measurement data with the Calculation menu command to use them in basic arithmetic operations and functions. The judgment results of the calculations are reflected in the overall judgment.
Page 326 Outputting the Calculation Results The overall judgment (JG) of the calculations are reflected in the overall judgment of the inspection item. The calculation result of each expression (J00 to J31) and calculation data (D00 to D31) can be output via Ethernet or recorded as logging data.
Page 327: Examples For Calculation
Examples for Calculation Example 1: Finding the distance between two measured points This example finds edge position 2 by detecting the two edge positions of inspection item 0 and inspection item 1, and calculates the distance between the two points. Calculate this distance.
Page 328: Procedure (Calculation)
Procedure (Calculation) − Press [Inspect] [Calculation]. Setting Expressions Press [Expression] on the [Settings] Tab Page. Press the expression number that you want to use. Calculations and Judgments Using Inspection Item Data FQ2-S/CH User’s Manual...
Page 329 Press [Modify] on the menu. Note Performing Similar Calculations At Different Locations • [Rename] The name of the calculation can be changed. (16 characters max.) • [Copy] Previously registered calculation expressions can be copied. Set the expression by selecting items from the [Data], [Const.], and [Math.] Tab Pages. The expression will be displayed in the space under [Expression settings].
Page 330 Expression Notation Expressions must have the following notation. I0.X Text string corresponding to the item: position correction data, inspection item, or calculation settings. For an item that has multiple measurement results such as search, shape searchⅡ, and labelling, you can use the array symbol and enter in the format X[0] to acquire individual data values.
Page 331: Function List
Function List The following functions can be used in calculations. Function Description Finds the sine. The result is a value between −1 and 1. The angle in the expression is in degrees. SIN(angle) Finds the cosine. The result is a value between −1 and 1. The angle in the expression is in degrees.
Page 332 Function Description Finds the square root. SQRT If the argument is negative, the result is 0. The judgement will be NG. SQRT(argument) • Finds the distance between two points (the center of gravity and the center of the model). DIST(first_position_X, first_position_Y, second_position_X, second_position_Y) Example: Finding the distance between the centers of gravity of region 0 and region 1 DIST(R0.X,R0.Y,R1.X,R1.Y) The following calculation is performed internally.
Page 333 Reflecting the Judgment Results for Expressions to the Overall Judgment Results You can specify whether to reflect the judgment results of a calculation in the overall judgment. (The Default is to reflect them.) [Inspect] − [Calculation] − [Details] Tab Page −...
Page 334 Inspection item Data name Expression Data range Default text string −2: No judgement (not measured) −2 Judgement 0: Judgement is OK −1: Judgement is NG −99999.9999 to 99999.9999 Scroll X −99999.9999 to 99999.9999 Scroll Y −99999.9999 to 99999.9999 Edge0 position X −99999.9999 to 99999.9999 Edge0 position Y −99999.9999 to 99999.9999...
Page 335 Inspection item Data name Expression Data range Default text string −2: No judgement (not measured) −2 Judgement 0: Judgement is OK −1: Judgement is NG Scroll θ −180 to 180 −99999.9999 to 99999.9999 Edge0 position X −99999.9999 to 99999.9999 Edge0 position Y −99999.9999 to 99999.9999 Edge1 position X Edge rot.
Page 336 Inspection item Data name Expression Data range Default text string Individual similarity 0 to 100 Individual stability 0 to 100 (FQ2-S4/CH only) −2: No judgement (not measured) 0: Judgement is OK −2 −1: Judgement is NG Judgement −16: Measurement timeout error Bar code −2:No verification pastern (FQ2-S4 only)
Page 337 Inspection item Data name Expression Data range Default text string −2: No judgement (not measured) −2 Judgement 0: Judgement is OK −1: Judgement is NG −16: Measurement timeout error −2: Verification OFF or reading error, −2 Index No. −1: Verification is NG, 0 to 31: Master data No.
Page 338 Inspection item Data name Expression Data range Default text string −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG −13: Teaching not performed error −2 Judgement −14: Figure not registered error −15: Out of range error Correlation 0 to 100 Shape Search II...
Page 339 Inspection item Data name Expression Data range Default text string −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG −13: Teaching not performed error −2 Judgement −14: Figure not registered error −15: Out of range error Edge Position −99999.9999 to 99999.9999 Position X...
Page 340 Inspection item Data name Expression Data range Default text string −2: No judgement (not measured) 0: Judgement is OK −1: Judgement is NG −13: Teaching not performed error −2 Judgement −14: Figure not registered error −15: Out of range error Area 0 to 999999999.9999 Area...
Page 341: Testing And Saving Settings
Testing and Saving Settings 5-1 Performing Test Measurements ............340 5-2 Shortening the Measurement Takt Time ..........342 5-3 Adjusting the Judgment Parameters..........346 5-4 Checking a List of All Inspection Item Results........349 5-5 Saving Data to the Sensor ..............350...
Page 342: Performing Test Measurements
5-1 Performing Test Measurements FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH After completing the settings in the [Image], [Inspect], and [In/Out] Tab Pages, move to the [Test] Tab Page. The displayed image is measured automatically. This is called a test measurement. A test measurement is used to verify that the settings that have been made will produce stable results and, if necessary, to fine-tune the settings.
Page 343: Performing Test Measurements With Saved Images (Re-Measuring)
Performing Test Measurements with Saved Images (Re-measuring) This Sensor can save measured images in the Sensor’s built-in memory or on an SD card. Test measurements can be performed using these saved images. This function is useful for adjusting the judgment parameters when objects are not available. [Test] −...
Page 344: Shortening The Measurement Takt Time
5-2 Shortening the Measurement Takt Time FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Checking the Measurement Takt Time The measurement time of this Sensor can be checked from the Setup or Run Mode display. Measurement time The measurement time is the time taken from when a trigger is input until when all measurement processes are executed.
Page 345: Increasing Image Input Speed
Increasing Image Input Speed With the partial input function, it is possible to input only images that are in the region that is necessary for measurements. The image measurement region becomes smaller and therefore the image input time is shortened. Consider the offset in the measurement object when you set the range.
Page 346 Parameter Setting Description FQ2-S-08 X coordinate of the partial input start point Range: 176 to 1,088, Default: 176 FQ2-S- Range: 0 to 1,264, Default: 0 Specify the partial input range along the X axis. FQ2-S-08 X coordinate of the partial input end point Range: 191 to 1,103, Default: 1,103 FQ2-S-...
Page 347: Changing The Image Input Mode
• FQ2-S1/S2/CH [Image] − [Camera setup] Press [ ] – [Partial input] on the right side of the display. Change the input size. Press [OK]. Press [Back]. Changing the Image Input Mode Pixel sampling can be applied to the input image to reduce image input time. [Image] −...
Page 348: Adjusting The Judgment Parameters
5-3 Adjusting the Judgment Parameters FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Adjusting Judgment Parameters While Looking at Measurement Results If correct judgments are not possible, you can move directly from the Setup Mode display to the judgment parameters display to make adjustments. [Test] –...
Page 349: Setting Up The Best Judgement Parameters Automatically
Setting Up the Best Judgement Parameters Automatically The judgment parameters of the selected inspection items can be automatically adjusted by using actual workpieces which are considered as good and faulty products. [Test] − [Continuous test] Move to the inspection item for which you want to automatically adjust the judgement pa- rameters and press [ ] –...
Page 350 Important There are no judgment condition settings for the following inspection items. • Bar code and 2D-code (FQ2-S4 series only) • Labelling and Edge pitch (FQ2-S1/S2/S3/S4 series only) Note You can select one of the following three patterns as the judgment method. [ ] −...
Page 351: Checking A List Of All Inspection Item Results
5-4 Checking a List of All Inspection Item Results FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Individual judgment results for all inspection items can be checked in a list. The individual inspection items can be selected to change the judgment parameters. [Test] − [Continuous test] Press [All results/region] to display the list.
Page 352: Saving Data To The Sensor
5-5 Saving Data to the Sensor FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Until you have saved your settings explicitly to the memory in the FQ2 Sensor, the settings are only stored temporarily. They will be lost if the power is turned OFF. Execute [Save data] after you have finished making your settings.
Page 353: Operation
Operation 6-1 Starting Operation ........352 6-2 Configuring the Run Mode Display .
Page 354: Starting Operation
6-1 Starting Operation FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH When test measurements and adjustments in Setup Mode have been finished, change to Run Mode and begin actual measurements. In Run Mode, the Sensor operates stand-alone and outputs the measurement judgment results on the I/O lines accordingly to the settings. If the Touch Finder or the PC Tool is connected via network to the Sensor, the operation of the Sensor can be monitored in the following ways.
Page 355: Moving To Run Mode
Moving to Run Mode You can move from Setup Mode to Run Mode by using the following procedure. Press [Run]. Press [Switch to Run mode.]. Press [Yes]. If you press [No], the setting will not be saved and you will move to Run Mode. Note •...
Page 356: Configuring The Run Mode Display
6-2 Configuring the Run Mode Display FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH There are six types of displays that can be used, as shown below. Select the display as desired. Checking the Judgement Results of Inspection Items Checking the Overall Judgement Result His- tory Graphics Graphics + Details...
Page 357 The following displays are convenient if more than one Sensor is connected. Multi sensor NG sensor Displays the measurement results of Automatically changes to the display for all connected Sensors. any Sensor with an NG result. Green display: OK, Red display: NG (Run Mode) −...
Page 358 Specifying the Startup Run Mode Display The display that appears when power supply is turned ON can be set. The Default setting is [Graphics + Details]. This only appears when [Start screen type] under [Startup display] is set to [Single sensor]. (Setup Mode or Run Mode) −...
Page 359 Clearing the Measurement Result You can clear the measurement results of all the configured inspection items by using the following operations. (Run Mode) − − [Clear results] Selecting the Displayed Image You can select the displayed image when you use the Area or Labeling Inspection items, (Run Mode) −...
Page 360: Checking The Trend Of Measurement Results With Graphs
6-3 Checking the Trend of Measurement Results with Graphs FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Measurement result histories can be checked using the trend monitor and histograms. To display trend monitors or histograms in Run Mode, you must make the following setting in advance in Setup Mode.
Page 361 Arranging the Trend Monitor Display The display range for the vertical axis and display conditions for the horizontal axis can be changed. To change the display range of the vertical axis, [Auto display] must be set to OFF. Note You can display only one parameter in the Trend Monitor. You cannot display multiple parameters at the same time.
Page 362: Histograms
Histograms The distribution of each measurement value can be checked on a histogram. The most recent 1,000 measurement values are displayed on a graph. Switches the display to Switches the display to the previous inspection the next inspection item number. item number.
Page 363 Arranging Histogram Display The display range on the horizontal axis and the number of data on the vertical axis of the histogram can be changed. To change the display range of the vertical axis, [Auto display] must be set to OFF. •...
Page 364: Adjusting Judgement Parameters During Operation
6-4 Adjusting Judgement Parameters during Operation FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH This Sensor enables judgment parameters to be adjusted while measurements are being performed. Downtime can be eliminated with this feature because the production line does not have to be stopped while making adjustments.
Page 365: Editing The Model Region / Measurement Region From Run Mode
6-5 Editing the Model Region / Measurement Region from Run Mode FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH With this Sensor, you can move from Run Mode to the model edit / measurement region edit display. This eliminates the need to move to Setup Mode, making it easier to edit the model region / measurement region. The procedure for editing the model region are explained below.
Page 366 MEMO Editing the Model Region / Measurement Region from Run Mode FQ2-S/CH User’s Manual...
Page 367: Convenient Functions
Convenient Functions 7-1 Changing the Scene to Change the Line Process ......366 7-2 Calibration..................... 369 7-3 Display Functions ................380 7-4 Monitoring the Signal I/O Status ............385 7-5 Connecting to More Than One Sensor..........386 7-6 Logging Measurement Data and Image Data ........392 7-7 Saving Sensor Settings ...............
Page 368: Changing The Scene To Change The Line Process
7-1 Changing the Scene to Change the Line Process FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH What Are Scenes? With an FQ2 Sensor, the inspection items that can be processed at the same time are registered as scenes. A command input from an external device or a touch panel operation can be used to select a certain scene. If a scene is registered for each type of measurement object or inspection, the line process can be changed simply by changing the scene when the measurement object or inspection changes.
Page 369: Creating New Scenes
Creating New Scenes The Default scene number is 0. To create another scene, use the following procedure to switch the scene and then make the settings. (Setup Mode) − [Select scene] Press the number of the scene to change to and then press [Select].
Page 370: Switching Scenes From An External Device
Switching Scenes from an External Device • Changing Scenes by Parallel Input Command Vision Sensor FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) Section 2 Controlling Operation and Outputting Data with a Parallel Connection • Changing Scenes by PLC Link Command Vision Sensor FQ2-S/CH Series User's Manual for Communications Settings (Cat.
Page 371: Calibration
7-2 Calibration FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 Calibration Calibration is used to convert Camera coordinates into actual coordinates. You can set calibration to output the detected position in the actual coordinates. You can convert pixels to actual dimensions and then output them. Example 30 mm 540 pixels = 30 mm...
Page 372 • Setting Calibration Use the following procedure to set calibration. Set the conversion method to use for calibration. Select the calibration method (point specification, reference, or parameter) and enter the actual coordi- nates or other values that are suitable for the selected method. You can register up to 32 calibration patterns.
Page 373: Setting The Calibration Pattern
Setting the Calibration Pattern Point Specification Set the pixel coordinates of positions to set the calibration pattern. When you enter the actual coordinates of the specified positions, the calibration parameters are automatically calculated. You can register the coordinates of up to nine positions. •...
Page 374 Press [No. 1] and then press [Modify]. Press the Camera coordinates to register on the Cross mark display to select them. A cross mark will be displayed on the selected po- sition. Note • You can enlarge the display. Image Zoom: p. 380 •...
Page 375 Enter the actual X and Y coordinates, and then press [OK]. Repeat the above steps 4 to 8 to set the coordi- nates of the remaining positions. When you have finished setting the coordinates for all of the positions, press [Generate parame- ters].
Page 376 Reference With this method, the calibration settings are based on measurement results. When you enter the actual coordinates of the position that results from searching for a registered model, the calibration parameters are calculated automatically. (The position resulting from the search is found at the subpixel level.) Model Measure three positions and enter the actual coordinates of them.
Page 377 Move the rectangular frame to specify the model region. Note • You can edit the model region. The procedure is the same as that for the search function. Editing the Model and Measurement Regions: p. 224 Press [OK]. Press a reference sample to get the Camera coordinates. Enter the actual coordinates of the specified po- sition.
Page 378 Enter the actual X and Y coordinates and press [OK]. Repeat the above steps 4 to 8 to set the coordi- nates of the remaining positions. When you have finished setting the coordinates for all of the positions, press [Generate parame- ters].
Page 379 Parameter With this method, you directly enter values to set calibration. The calibration parameters will be automatically calculated when you enter the following three parameters. Parameter Setting Description Lefthand: The positive direction is clockwise when coordinates are specified. Righthand: The positive direction is counterclockwise when coordi- nates are specified.
Page 380 (Setup Mode) − [Calibration] Select the data region to set from [Calibration data 0] to [Calibration data 31]. Press [Modify]. [ ] − Press [Parameter] on the right of the dis- play. Set the following parameters: [Coordinate], [Or- igin], and [Magnification]. Press [OK].
Page 381: Selecting The Calibration Pattern To Use
Selecting the Calibration Pattern to Use In the Camera setup, select the calibration pattern to use. Note You can select the calibration pattern for each scene. [Image] − [Camera setup] [ ] − Press [Calibration] on the right of the dis- play.
Page 382: Display Functions
7-3 Display Functions FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH The procedures given in this section can be used to make the Sensor easier to use and the display easier to see. Image Zoom The display can be zoomed in or out to make the image easier to see. (Setup Mode or Run Mode) Enlarges the display.
Page 383: Displaying A Frozen Image
Displaying a Frozen Image You can display a frozen image to stop image refreshing and display the last image that was input. (Setup Mode) Press Press [Camera]. Press [Freeze]. Press the [Back] Button to return to the [Display] Dis- play. Note This can also be set with the [Freeze] button ( ) in the display settings display.
Page 384: Displaying A Saved Image
Displaying a Saved Image You can display an image that was saved in internal memory in the Sensor or in an SD card. This can be done to configure inspection items or to check measurements using saved images. (Setup Mode) Press You can select one of the following types of im- ages to display.
Page 385: Updating The Display And Measurement Results Only For Ng Measurement Results
Updating the Display and Measurement Results Only for NG Measurement Results In Run Mode, you can specify updating the display of the image and measurement results only when the measurement result is NG. (Run Mode) Press Press [Last NG image]. Press [Back].
Page 386: Automatically Changing To The Display For Any Sensor With An Ng Result
Automatically Changing to the Display for Any Sensor with an NG Result You can change the settings to automatically display the Sensor for which the measurement result is NG if more than one Sensor is connected. (Run Mode) − [Sensor monitor] − [NG Sensor] Hiding the Menu To view an image that is hidden behind the menu, or to set a shape to full screen display, you can display only the image in the touch finder or on your computer.
Page 387: Monitoring The Signal I/O Status
7-4 Monitoring the Signal I/O Status FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH You can check if the I/O connections are working normally. [In/Out] − [I/O monitor] − [I/O monitor] The I/O status of the external devices will be dis- Input Signals (TRIG and IN0 to IN5) played.
Page 388: Connecting To More Than One Sensor
7-5 Connecting to More Than One Sensor FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Up to eight sensors can be connected to one Touch Finder or a computer used for PC Tool. This sections describes how to connect more than one Sensor to a Touch Finder or computer. Setting the Sensors to Connect Use the following setting to connect more than one Sensor to a Touch Finder.
Page 389 Registering the Sensors to Connect You can set any of the Sensors for connection to the Touch Finder and register them. (Run Mode) − [Sensor List] Press any line and then press [Add]. Enter the IP address. Press the IP address that you entered, and then press [Comm.
Page 390 Selecting the Sensors to Connect You can select the Sensors to connect to the Touch Finder from a list. (Run Mode) − [Sensor List] Press the check boxes of the Sensors to connect to select them. Note • Sensors that are logged are indicated by “*” in before the sensor name. •...
Page 391: Selecting The Display When More Than One Sensor Is Connected
Selecting the Display When More Than One Sensor Is Connected Selecting the Display When More Than One Sensor Is Connected You can select the display to appear on the Touch Finder when more than one Sensor is connected. (Setup Mode or Run Mode) − [TF Settings] − [Startup display] − [Startup screen type] Select one of the following display types.
Page 392 Specifying Sensor Display Positions for Multiple Sensors ([Multi Sensor] or [Auto] Only) If [Startup screen type] is set to [Multi sensor] or [Auto],*1 you can specify the position of the image on a split display for each Sensor that is displayed. This can only be specified when at least two Sensors have been connected.
Page 393 Displaying information of individual sensors when multiple sensors are connected The information of individual sensors can be displayed in the “Multi sensor” display and the “Switch sensor” display. “OFF”, “IP address”, or “Sensor name” can be selected for the information that is displayed. The Default is “IP address”.
Page 394: Logging Measurement Data And Image Data
7-6 Logging Measurement Data and Image Data FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH There are two ways to log data. Recent results logging: Data is temporarily saved in memory inside the Sensor. File logging: Large amounts of data are saved in SD cards or other external media. The amounts and types of data that can be logged depend on the logging method that is used, as shown in the following table.
Page 395: Logging Procedure
Logging Procedure Use the following procedure to log data. • Setting Logging Conditions Logging settings File logging: p. 394 (common settings for recent results logging and file logging) Recent results logging: p. 401 • Selecting the Measurement Data To Log p.
Page 396: Logging All Data (File Logging)
Logging All Data (File Logging) Large amounts of measurement and image data can be saved in files in external memory (SD cards or computer). Touch Finder Image logging file FQ2 Sensor Data logging file SD card Saved for each Computer*1 measurement Hard disk drive *1: Image data and measurement data can be logged in the same way as for the Touch Finder by installing the PC Tool for FQ.
Page 397 Setting Logging Conditions Use the following procedures to set the conditions to log data. [In/Out] − [Log setting] • Image Data Press [Image logging]. Change the logging conditions, and then press [Back]. • Measurement Data − Press [Data logging] [Condition]. Change the logging conditions, and then press [Back].
Page 398 Selecting the Measurement Data To Log Use the following procedure to select the measurement data to log. [In/Out] − [Log setting] − [Measurement data] − [Select data] Press the measurement pre-processing, in- spection item, or calculation that has the pa- rameter to be logged.
Page 399 00001 Files are stored in the following folder when the PC Tool is used. \My Documents\OMRON FQ\SDCard "n" is a serial number that is added when images are logged at the same time. You can change the "img" at the beginning of the file name.
Page 400: File Format
File Format Image data: Image data is saved in a special format for OMRON Sensors. (The file name extension is IFZ.) Measurement data: Measurement data is saved in the following CSV format. Item Format Description Date YYYY/MM/DD This is the date that the measurement data was obtained from the Sensor.
Page 401 Changing the Format for Saving Measurement Data The output CSV file format can be changed according to the external device. (Setup Mode or Run Mode) − [TF settings] − [File format] − [Logging data file] Press [Output format]. Change the required items in the CSV format. Press [Back].
Page 402 Ensuring That All Measurement Results Are Logged in External Memory To ensure that all measurement results are actually saved, change the settings so that the BUSY signal remains ON until logging has been completed. During operation, do not input the next trigger until the BUSY signal turns OFF.
Page 403: Checking Recent Measurement Trends (Recent Results Logging)
Checking Recent Measurement Trends (Recent Results Logging) The most recent measurement results can be logged inside the Sensor. Even if data is not logged in external memory, such as an SD card, trends in measurement results can be easily checked on the Touch Finder. However, if the power supply is turned OFF, this data will be lost.
Page 404 Setting Logging Conditions Use the following procedure to set the conditions for the measurement data, image data, and statistical data that will be logged. Some of these operations and settings are the same as for file logging. Setting Logging Conditions: p. 395 Item Description Statistical data, such as the number of measurements, the number of NG overall...
Page 405 Checking the Results of Logging The results of logging can be checked using the trend monitors, histograms, or statistical data. 6-2 Configuring the Run Mode Display: p. 354 Use the following menu command to check the image data. (Setup Mode) − −...
Page 406 The data is saved in the following CSV format. Number of measurements, number of OKs, number of NGs, OK rate, NG rate (delimiter) Image data Image data is saved in a special format for OMRON Sensors. (The file name extension is IFZ.) Measurement data : Measurement data is saved in CSV format.
Page 407 Item Format Content Index Index ― ＊1 Measurement ID Information Measurement ID ― Scene Number Scene No. ― Overall judgment result 0: OK Judge ― -1: NF -2: NC (means unmeasured) Inspection item No., Measurement item, Inspection point Example 1 Outputs a data selected as a logging item in [Measurement data] of When Search is executed with [Logging setting].
Page 408: Saving Sensor Settings
7-7 Saving Sensor Settings FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH The Sensor settings are saved in flash memory inside the Sensor. This section describes how to back up the settings in and restore them from an SD card or other external memory.
Page 409 All settings in the Touch Finder are backed up. (The file name extension is MSD.) For the PC Tool, data will be saved in the following folder: \\..\My Documents\OMRON FQ\SDCard\ Only supported on the FQ2-S4/CH Series. FQ2-S/CH User’s Manual Saving Sensor Settings...
Page 410: Restoring Data To The Sensor From External Memory
Restoring Data to the Sensor from External Memory (Setup Mode) − [Load from file] Press the data to be restored. The selected data will be read from external memory and displayed. Press the file to load. Saving Sensor Settings FQ2-S/CH User’s Manual...
Page 411: Sd Card Operations
Captured images (The file name extension is BMP.) Camera image data (The file name extension is IFZ.) *1 : For the PC Tool, data will be saved in the following folder: \\..\My Documents\OMRON FQ\SDCard\ *2 : Only supported on the FQ2-S4/CH Series.
Page 412: Inserting And Removing Sd Cards
Inserting and Removing SD Cards Inserting an SD Card in the Touch Finder Open the cover to the SD card slot on the top of the Touch Finder. Insert the SD card with the back of the SD card facing the front of the Touch Finder and press it in until it clicks into place.
Page 413: Checking The Available Space On The Sd Card
Removing an SD Card from the Touch Finder Open the cover to the SD card slot on the top of the Touch Finder. Press in on the SD card until you hear a click. Pull out the SD card. Close the cover to the SD card slot. Never remove the SD card while data is being saved or read.
Page 414: Formatting An Sd Card
Formatting an SD Card (Setup Mode or Run Mode) − [TF settings] − [SD card] − [Format] Press [Yes] to start formatting. SD Card Operations FQ2-S/CH User’s Manual...
Page 415: Convenient Functions For Operation
7-9 Convenient Functions for Operation FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH This section describes the functions that can be used during Sensor operation. Setting a Password to Prevent Unwanted Changes A password can be set to prevent unwanted changes to settings. If a password is set, you cannot change from Run Mode to Setup Mode without entering the password.
Page 416 • This password restricts only the operation to switch from Run Mode to Setup Mode. It does not restrict other operations. • If you forget the password, contact your OMRON representative for the procedure to clear the password. • The password is deleted when the Sensor is initialized.
Page 417: Capturing The Displayed Image
10:10:21.350 pm on March 10, 2010. 2010_03_10-22_10_21_350.BMP Important Make sure an SD card is inserted in the Touch Finder before capturing display images. Note For the PC Tool, data will be saved in the following folder:\\..\My Documents\OMRON FQ\SDCard\ FQ2-S/CH User’s Manual Convenient Functions for Operation...
Page 418: Saving The Currently Displayed Camera Image
Make sure an SD card is inserted in the Touch Finder before capturing display images. Note For the PC Tool, data will be saved in the following folder: \\..\My Documents\OMRON FQ\SDCard\ Setting the Startup Run Display Pattern You can select the startup run display pattern. This only appears when [Start screen type] under [Startup display] is set to [Single sensor].
Page 419: Specifying The Sensors To Connect Continuously
Specifying the Sensors to Connect Continuously You can specify one Sensor to connect to the Touch Finder. The Touch Finder will connect to that Sensor each time the Touch Finder is started. (Setup Mode or Run Mode) − [TF settings] − [Startup display] Set [Specify sensor] to [ON].
Page 420 Operations during Simultaneous Connection of Two Touch Finders The following restrictions apply to operations when two Touch Finders are simultaneously connected to the same Sensor. Operation Sensor status Changes Editing model regions Monitor Operation is possible with only one of the Touch Finders. in Run Mode Operation will be possible from the Touch Finder where [Model region] was pressed first.
Page 421: Checking The Cause Of A Sensor Ng From The Multisensor Display
Checking the cause of a sensor NG from the multisensor display It is easy to check the cause of a sensor NG when multiple sensors are connected. You can immediately move between the detailed result display of a sensor, the multi-sensor display, and the result list display.
Page 422: Convenient Functions For Setup
7-10Convenient Functions for Setup FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH This section describes the functions that can be used when setting inspection items. Making Settings with Stored Images With an FQ2 Sensor, judgment parameters can be set by using the following images. Images saved in internal Sensor memory.
Page 423 • Saving Images in the Sensor to an SD Card The images that are temporarily saved inside the Sensor can be saved to an SD card. (Setup Mode) − [Save to file] − [Logging] Tab Page Press [Logging image]. Select whether to save the most recently logged image or to save all of the data that is logged in the Sensor.
Page 424: Setting The Retry Function
7-11Setting the Retry Function FQ2-S4 FQ2-CH Retry Function This function repeats the Scan (with a single measurement trigger) until the overall judgment is OK. The retry function has four modes: normal retry, exposure retry (*1), scene retry, and trigger retry. The brightness (exposure) depends on the shutter speed and gain.
Page 425 Combining retry modes Normal retry, exposure (shutter speed) retry, scene retry, and trigger retry cannot be used at the same time. When scene retry is ON, the normal retry and exposure retry modes in the same scene are OFF. When normal retry, exposure retry, or scene retry is ON, trigger retry is OFF. Setting normal retry •...
Page 426 Setting exposure retry • Set the retry mode to [Exposure retry] in "Retry details". (Setup Mode) − [Sensor settings] − [Retry details] Press [Exposure retry] for the retry mode. • Set the brightness (shutter speed) step, increment count, and decrement count. [Inspect] −...
Page 427 Setting scene retry • Set the retry mode to [Scene retry] in "Retry details". (Setup Mode) − [Sensor settings] − [Retry details] Press [Scene retry] for the retry mode. Set the switch order. Set the scenes that are switched through. Parameter Settings Description...
Page 428 • If the power is interrupted or the sensor is restarted, the success counts are initialized when adjust mode is entered. Note For the timing chart, refer to the following manual: FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) Setting the Retry Function FQ2-S/CH User’s Manual...
Page 429: Functions Related To The System
7-12Functions Related to the System FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH This section describes system settings. Turning OFF the Integrated Sensor Lighting (Only Sensors with Built-in Lighting) The internal light can be turned OFF to use external illumination. [Image] − [Camera setup] − [ ] − [Lighting control] Press [OFF].
Page 430: Initializing The Sensor And Touch Finder
Initializing the Sensor and Touch Finder • Initializing the Sensor (Setup Mode) − [Sensor settings] − [Initialize] • Initializing the Touch Finder (Setup Mode or Run Mode) − [TF settings] − [Initialize] Restarting the Sensor and Touch Finder • Restarting the Sensor (Setup Mode) −...
Page 431: Changing The Sensor Name
Changing the Sensor Name An alphanumeric name can be assigned to a Sensor to make it easier to recognize. This is convenient when more than one Sensor is connected. (Setup Mode) − [Sensor settings] − [Information] − [ ] − [Rename] Checking Available Memory in the Sensor If a setting cannot be made, check the amount of memory that is available in the Sensor.
Page 432 MEMO Functions Related to the System FQ2-S/CH User’s Manual...
Page 433: Troubleshooting
Troubleshooting 8-1 Error Histories ......... . . 432 8-2 Error Messages .
Page 434: Error Histories
Error Histories FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Error histories are stored with the PC Tool and in the Sensor and in the Touch Finder. Up to 100 errors will be stored in the error history in the Sensor or Touch Finder. Errors Stored in the Error History Error code Cause...
Page 435 You cannot check the error codes from the Touch Finder. Use the command to acquire the most recent error infor- mation for the connection method. FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338) Checking the Error Histories • Checking the History of Errors That Have Occurred in the Sensor (Setup Mode) −...
Page 436: Error Messages
Follow the instructions that are given in the error message. If the following messages appear, the hardware may be faulty. Contact your OMRON representative. • System error. • Application system error. Please reboot.
Page 437: Basic Troubleshooting
Basic Troubleshooting FQ2-S1 FQ2-S2 FQ2-S3 FQ2-S4 FQ2-CH Problem Measures to perform The Sensor or Touch Finder will not start. Check the power supply capacity to see if it is sufficient. Check the Ethernet cable to see if it is connected correctly. Check the Ethernet settings to see if they are correct between the p.
Page 438: Restoring A Sensor Connection
Restoring a Sensor Connection If you cannot connect to a sensor because the sensor is not detected in the [Sensor List] and the IP address set in the sensor is unknown, you can execute [Re-assign IP forcibly] to forcibly change the IP address of the sensor and connect.
