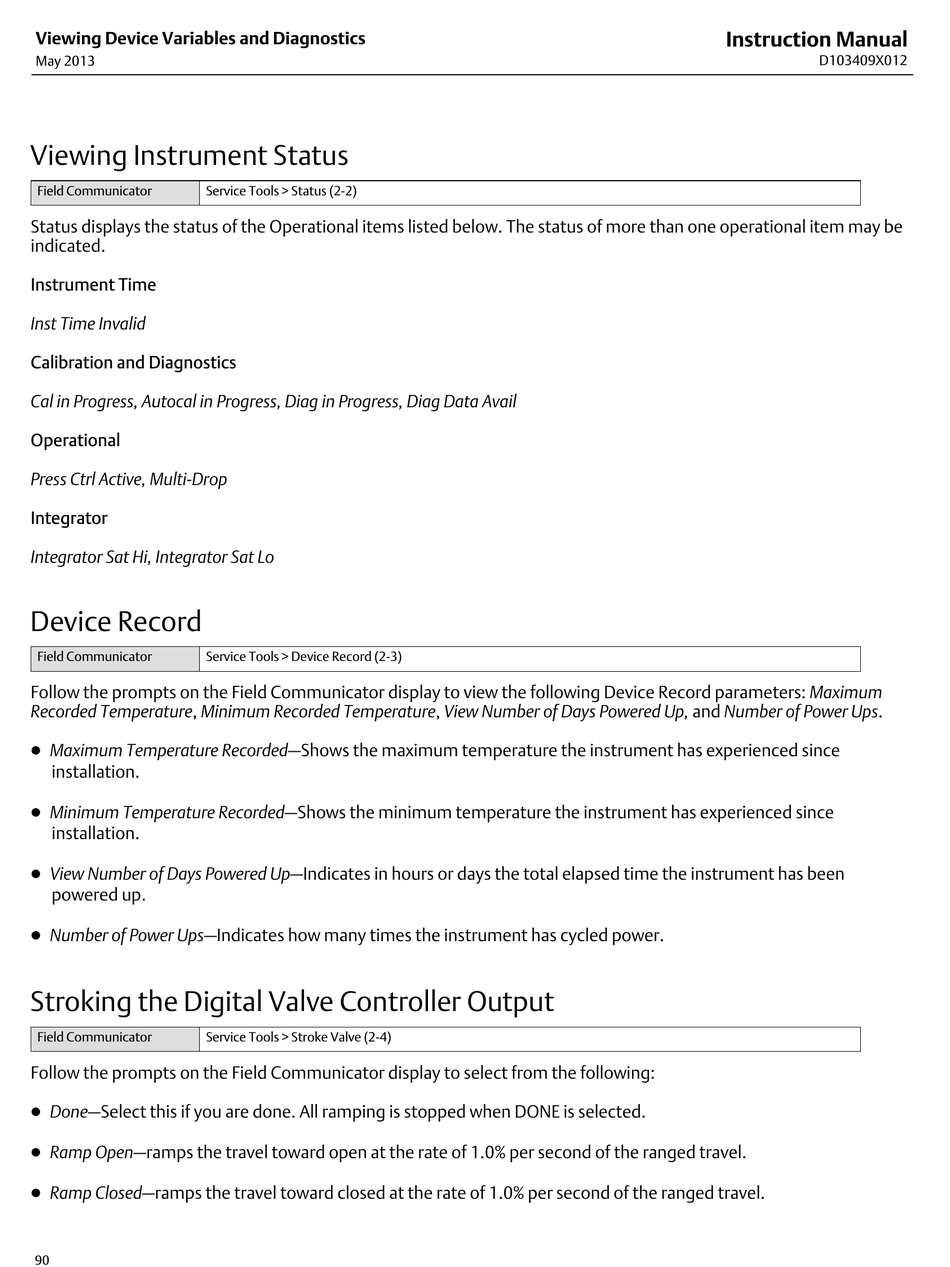

Viewing Device Variables and Diagnostics
May 2013
Viewing Instrument Status
Field Communicator
Service Tools > Status (2‐2)
Status displays the status of the Operational items listed below. The status of more than one operational item may be
indicated.
Instrument Time
Inst Time Invalid
Calibration and Diagnostics
Cal in Progress, Autocal in Progress, Diag in Progress, Diag Data Avail
Operational
Press Ctrl Active, Multi‐Drop
Integrator
Integrator Sat Hi, Integrator Sat Lo
Device Record
Field Communicator
Service Tools > Device Record (2‐3)
Follow the prompts on the Field Communicator display to view the following Device Record parameters: Maximum
Recorded Temperature, Minimum Recorded Temperature, View Number of Days Powered Up, and Number of Power Ups.
D Maximum Temperature Recorded—Shows the maximum temperature the instrument has experienced since
installation.
D Minimum Temperature Recorded—Shows the minimum temperature the instrument has experienced since
installation.
D View Number of Days Powered Up—Indicates in hours or days the total elapsed time the instrument has been
powered up.
D Number of Power Ups—Indicates how many times the instrument has cycled power.
Stroking the Digital Valve Controller Output
Field Communicator
Service Tools > Stroke Valve (2‐4)
Follow the prompts on the Field Communicator display to select from the following:
D Done—Select this if you are done. All ramping is stopped when DONE is selected.
D Ramp Open—ramps the travel toward open at the rate of 1.0% per second of the ranged travel.
D Ramp Closed—ramps the travel toward closed at the rate of 1.0% per second of the ranged travel.
90
Instruction Manual
D103409X012
