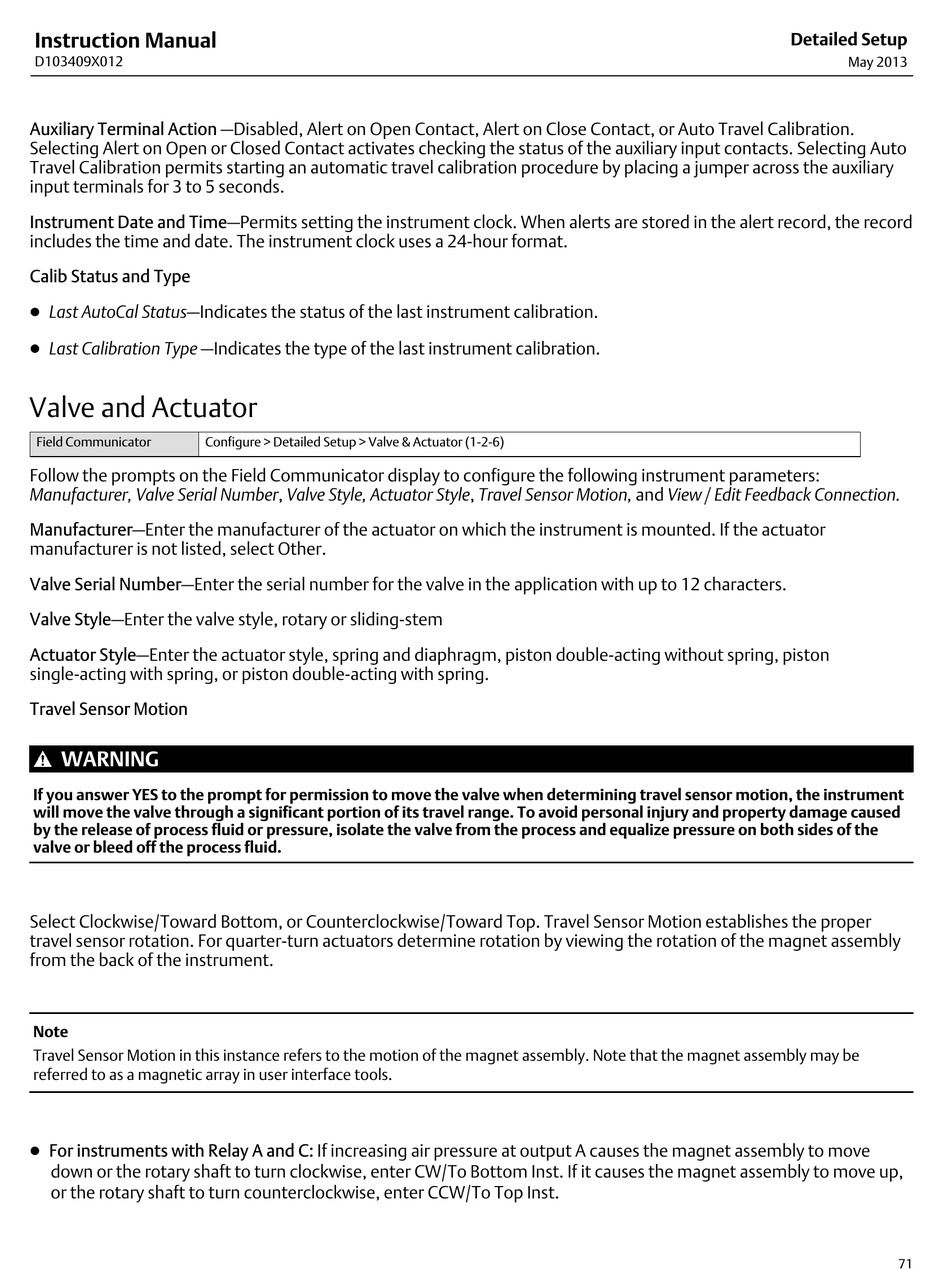

Instruction Manual
D103409X012
Auxiliary Terminal Action —Disabled, Alert on Open Contact, Alert on Close Contact, or Auto Travel Calibration.
Selecting Alert on Open or Closed Contact activates checking the status of the auxiliary input contacts. Selecting Auto
Travel Calibration permits starting an automatic travel calibration procedure by placing a jumper across the auxiliary
input terminals for 3 to 5 seconds.
Instrument Date and Time—Permits setting the instrument clock. When alerts are stored in the alert record, the record
includes the time and date. The instrument clock uses a 24‐hour format.
Calib Status and Type
D Last AutoCal Status—Indicates the status of the last instrument calibration.
D Last Calibration Type —Indicates the type of the last instrument calibration.
Valve and Actuator
Field Communicator Configure > Detailed Setup > Valve & Actuator (1‐2‐6)
Follow the prompts on the Field Communicator display to configure the following instrument parameters:
Manufacturer, Valve Serial Number, Valve Style, Actuator Style, Travel Sensor Motion, and View / Edit Feedback Connection.
Manufacturer—Enter the manufacturer of the actuator on which the instrument is mounted. If the actuator
manufacturer is not listed, select Other.
Valve Serial Number—Enter the serial number for the valve in the application with up to 12 characters.
Valve Style—Enter the valve style, rotary or sliding‐stem
Actuator Style—Enter the actuator style, spring and diaphragm, piston double‐acting without spring, piston
single‐acting with spring, or piston double‐acting with spring.
Travel Sensor Motion
WARNING
If you answer YES to the prompt for permission to move the valve when determining travel sensor motion, the instrument
will move the valve through a significant portion of its travel range. To avoid personal injury and property damage caused
by the release of process fluid or pressure, isolate the valve from the process and equalize pressure on both sides of the
valve or bleed off the process fluid.
Select Clockwise/Toward Bottom, or Counterclockwise/Toward Top. Travel Sensor Motion establishes the proper
travel sensor rotation. For quarter‐turn actuators determine rotation by viewing the rotation of the magnet assembly
from the back of the instrument.
Note
Travel Sensor Motion in this instance refers to the motion of the magnet assembly. Note that the magnet assembly may be
referred to as a magnetic array in user interface tools.
D For instruments with Relay A and C: If increasing air pressure at output A causes the magnet assembly to move
down or the rotary shaft to turn clockwise, enter CW/To Bottom Inst. If it causes the magnet assembly to move up,
or the rotary shaft to turn counterclockwise, enter CCW/To Top Inst.
Detailed Setup
May 2013
71
