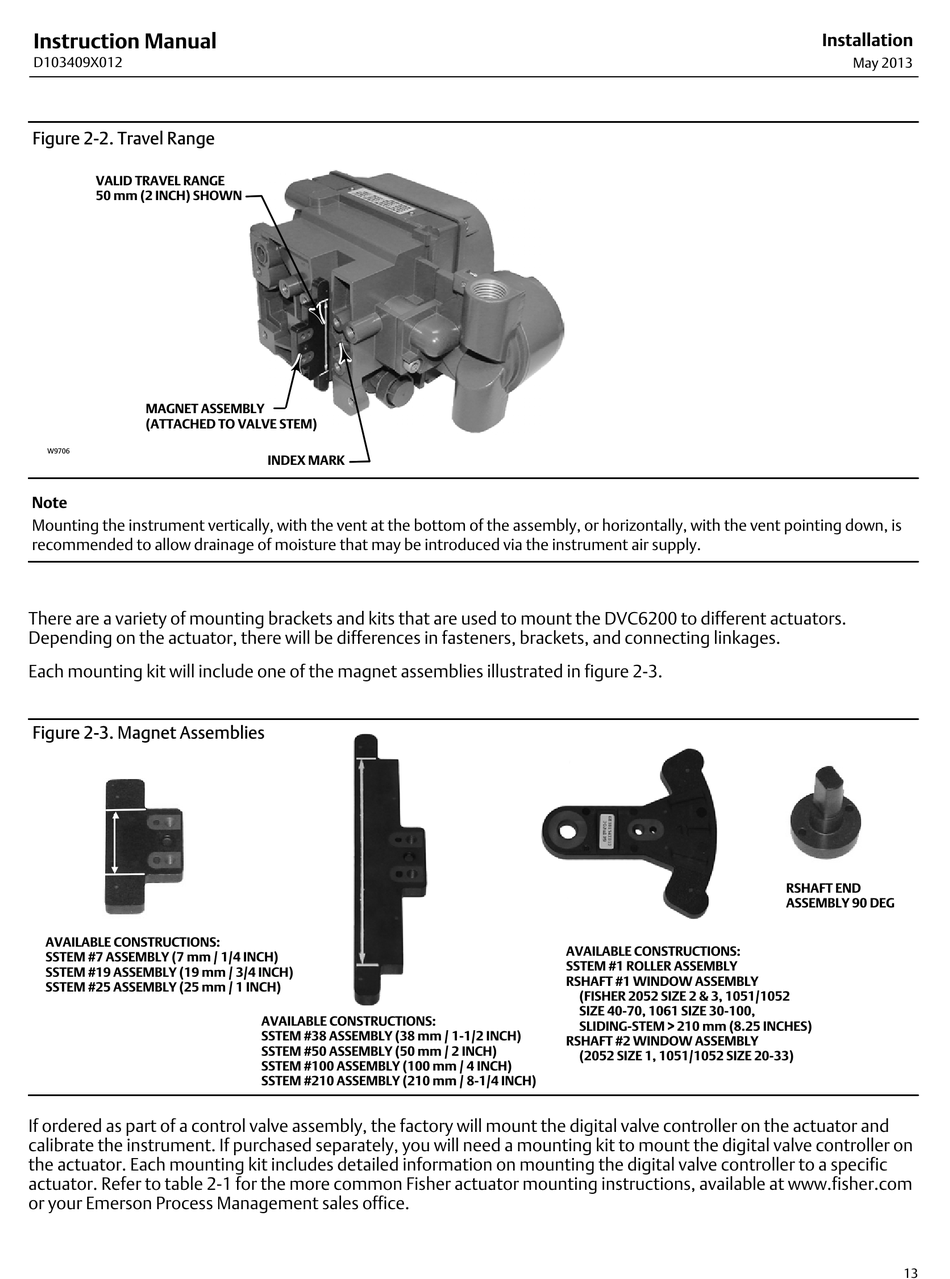

Figure 2‐2. Travel Range
VALID TRAVEL RANGE
50 mm (2 INCH) SHOWN
MAGNET ASSEMBLY
(ATTACHED TO VALVE STEM)
W9706
Note
Mounting the instrument vertically, with the vent at the bottom of the assembly, or horizontally, with the vent pointing down, is
recommended to allow drainage of moisture that may be introduced via the instrument air supply.
There are a variety of mounting brackets and kits that are used to mount the DVC6200 to different actuators.
Depending on the actuator, there will be differences in fasteners, brackets, and connecting linkages.
Each mounting kit will include one of the magnet assemblies illustrated in figure 2‐3.
Figure 2‐3. Magnet Assemblies
Y
B
AVAILABLE CONSTRUCTIONS:
SSTEM #7 ASSEMBLY (7 mm / 1/4 INCH)
SSTEM #19 ASSEMBLY (19 mm / 3/4 INCH)
SSTEM #25 ASSEMBLY (25 mm / 1 INCH)
If ordered as part of a control valve assembly, the factory will mount the digital valve controller on the actuator and
calibrate the instrument. If purchased separately, you will need a mounting kit to mount the digital valve controller on
the actuator. Each mounting kit includes detailed information on mounting the digital valve controller to a specific
actuator. Refer to table 2‐1 for the more common Fisher actuator mounting instructions, available at www.fisher.com
or your Emerson Process Management sales office.
INDEX MARK
AVAILABLE CONSTRUCTIONS:
SSTEM #38 ASSEMBLY (38 mm / 1‐1/2 INCH)
SSTEM #50 ASSEMBLY (50 mm / 2 INCH)
SSTEM #100 ASSEMBLY (100 mm / 4 INCH)
SSTEM #210 ASSEMBLY (210 mm / 8-1/4 INCH)
AVAILABLE CONSTRUCTIONS:
SSTEM #1 ROLLER ASSEMBLY
RSHAFT #1 WINDOW ASSEMBLY
(FISHER 2052 SIZE 2 & 3, 1051/1052
SIZE 40‐70, 1061 SIZE 30‐100,
SLIDING‐STEM > 210 mm (8.25 INCHES)
RSHAFT #2 WINDOW ASSEMBLY
(2052 SIZE 1, 1051/1052 SIZE 20-33)
