Instruction Manual
D103409X012

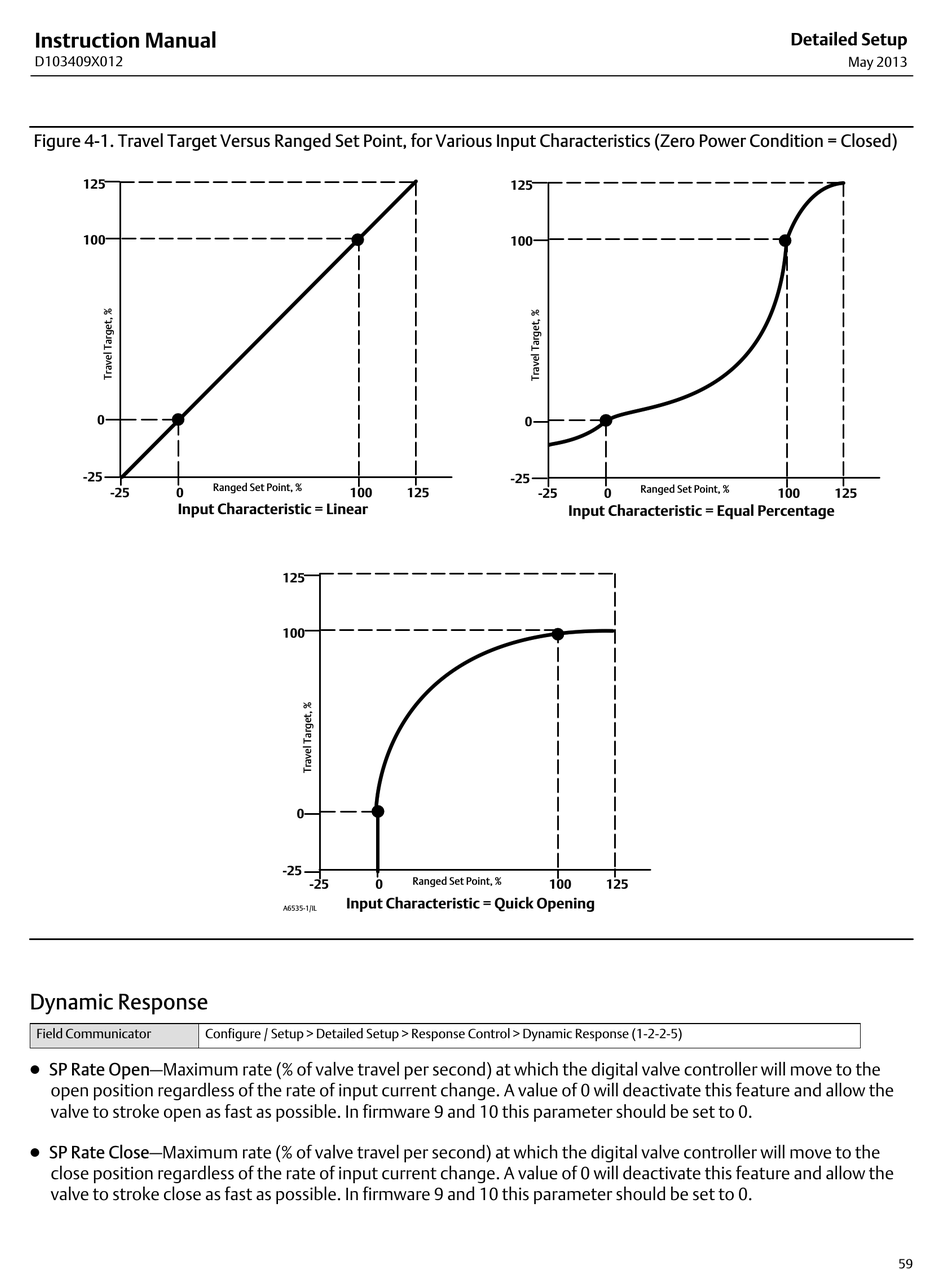

Figure 4‐1. Travel Target Versus Ranged Set Point, for Various Input Characteristics (Zero Power Condition = Closed)
125
100
0
-25
-25 0
Input Characteristic = Linear

Dynamic Response

Field Communicator Configure / Setup > Detailed Setup > Response Control > Dynamic Response (1‐2‐2‐5)
D SP Rate Open—Maximum rate (% of valve travel per second) at which the digital valve controller will move to the
open position regardless of the rate of input current change. A value of 0 will deactivate this feature and allow the
valve to stroke open as fast as possible. In firmware 9 and 10 this parameter should be set to 0.
D SP Rate Close—Maximum rate (% of valve travel per second) at which the digital valve controller will move to the
close position regardless of the rate of input current change. A value of 0 will deactivate this feature and allow the
valve to stroke close as fast as possible. In firmware 9 and 10 this parameter should be set to 0.
Ranged Set Point, %
100
125
100
0
-25
-25 0
Input Characteristic = Quick Opening
A6535‐1/IL
125
100
0
-25
125
-25
Input Characteristic = Equal Percentage
Ranged Set Point, %
100
Ranged Set Point, %
0 100
125
Detailed Setup
May 2013
125
59
