15

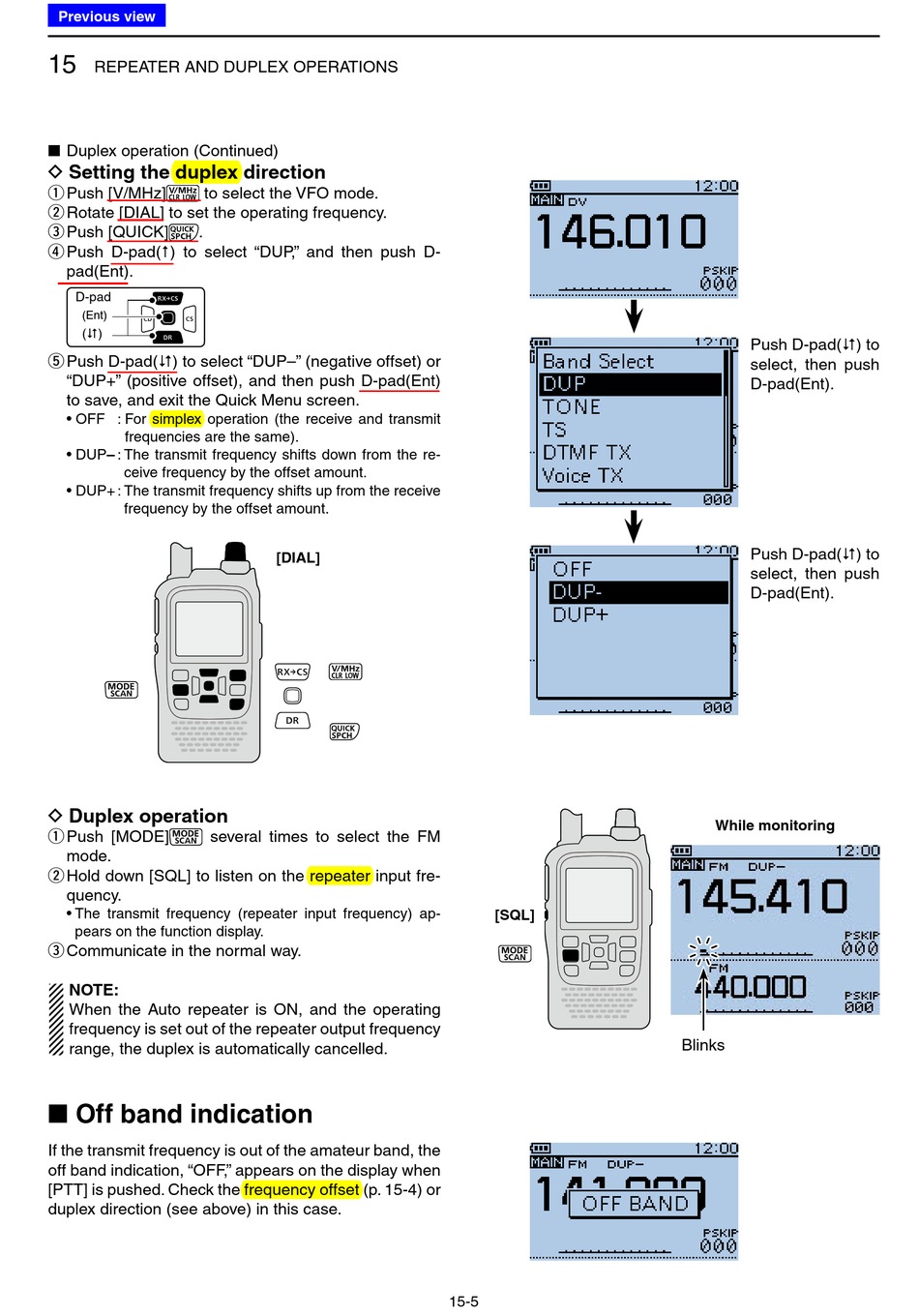

REPEATER AND DUPLEX OPERATIONS
Duplex operation (Continued)
■

D Setting the duplex direction

Push [V/MHz] to select the VFO mode.
q
Rotate [DIAL] to set the operating frequency.
w
Push [QUICK] .
e
Push D-pad( ) to select "DUP," and then push D-
r
pad(Ent).
D-pad
(Ent)
(�)
Push D-pad( ) to select "DUP–" (negative offset) or
t
"DUP+" (positive offset), and then push D-pad(Ent)
to save, and exit the Quick Menu screen.
• OFF : For simplex operation (the receive and transmit
frequencies are the same).
• DUP– : The transmit frequency shifts down from the re-
ceive frequency by the offset amount.
• DUP+ : The transmit frequency shifts up from the receive
frequency by the offset amount.
D Duplex operation
Push [MODE] several times to select the FM
q
mode.
Hold down [SQL] to listen on the repeater input fre-
w
quency.
• The transmit frequency (repeater input frequency) ap-
pears on the function display.
Communicate in the normal way.
e
NOTE:
When the Auto repeater is ON, and the operating
frequency is set out of the repeater output frequency
range, the duplex is automatically cancelled.

■ Off band indication

If the transmit frequency is out of the amateur band, the
off band indication, "OFF," appears on the display when
[PTT] is pushed. Check the frequency offset (p. 15-4) or
duplex direction (see above) in this case.
[DIAL]
15-5
[SQL]
Push D-pad() to
select, then push
D-pad(Ent).
Push D-pad() to
select, then push
D-pad(Ent).
While monitoring
Blinks
