3A-10 Drive Chain / Drive Train / Drive Shaft:

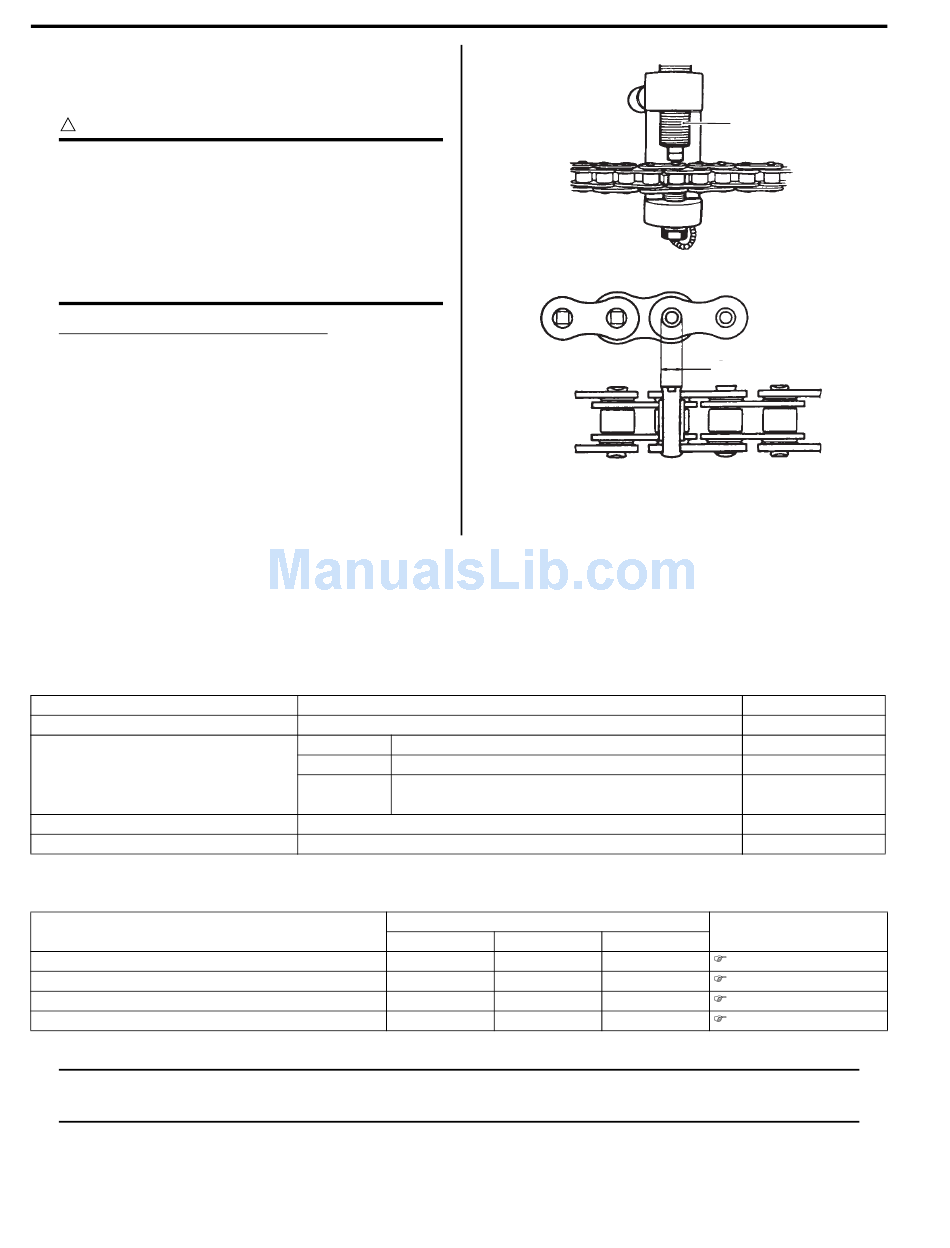

2) Stake the joint pin by turning (approximately 7/8 turn)
the pressure bolt [A] (3) with the bar until the pin end
diameter becomes the specified dimension.
CAUTION
!
• After joining of the chain has been
completed, check to make sure that the
link is smooth and no abnormal condition
is found.
• Should any abnormal condition be found,
reassemble the chain link using the new
joint parts.
Pin end diameter specification "a"
RK: 5.45 – 5.85 mm (0.215 – 0.230 in)

Service Data

Drive Train
Unit: mm (in)
Item
Final reduction ratio
Drive chain
Drive chain slack (on side-stand)
Gearshift lever height

Tightening Torque Specifications

Fastening part
Engine sprocket nut
Speed sensor rotor bolt
Speed sensor bolt
Rear sprocket nut
NOTE
The specified tightening torque is also described in the following.
"Drive Chain Related Components (Page 3A-1)"
Reference:
For the tightening torque of fastener not specified in this section, refer to "Tightening Torque List in Section 0C
(Page 0C-9)".
3) Adjust the drive chain slack, after connecting it.

Specifications

Standard
2.687 (43/16)
Type
Links
20-pitch
length
20 – 30 (0.8 – 1.2)
65 – 75 (2.6 – 3.0)
Tightening torque
N⋅m
115
25
4.5
60
Refer to "Drive Chain Inspection and Adjustment in
Section 0B (Page 0B-15)".
RK 525SMOZ8
114 links
—
kgf-m lb-ft
11.5 83.0
2.5 18.0
0.45 3.0
6.0 43.0
3
I649G1310035-02
"a"
I649G1310036-03
B837H13107001
Limit
—
—
—
319.4 (12.57)
—
—
B837H13107002
Note
(Page 3A-3)
(Page 3A-3)
(Page 3A-3)
(Page 3A-4)
