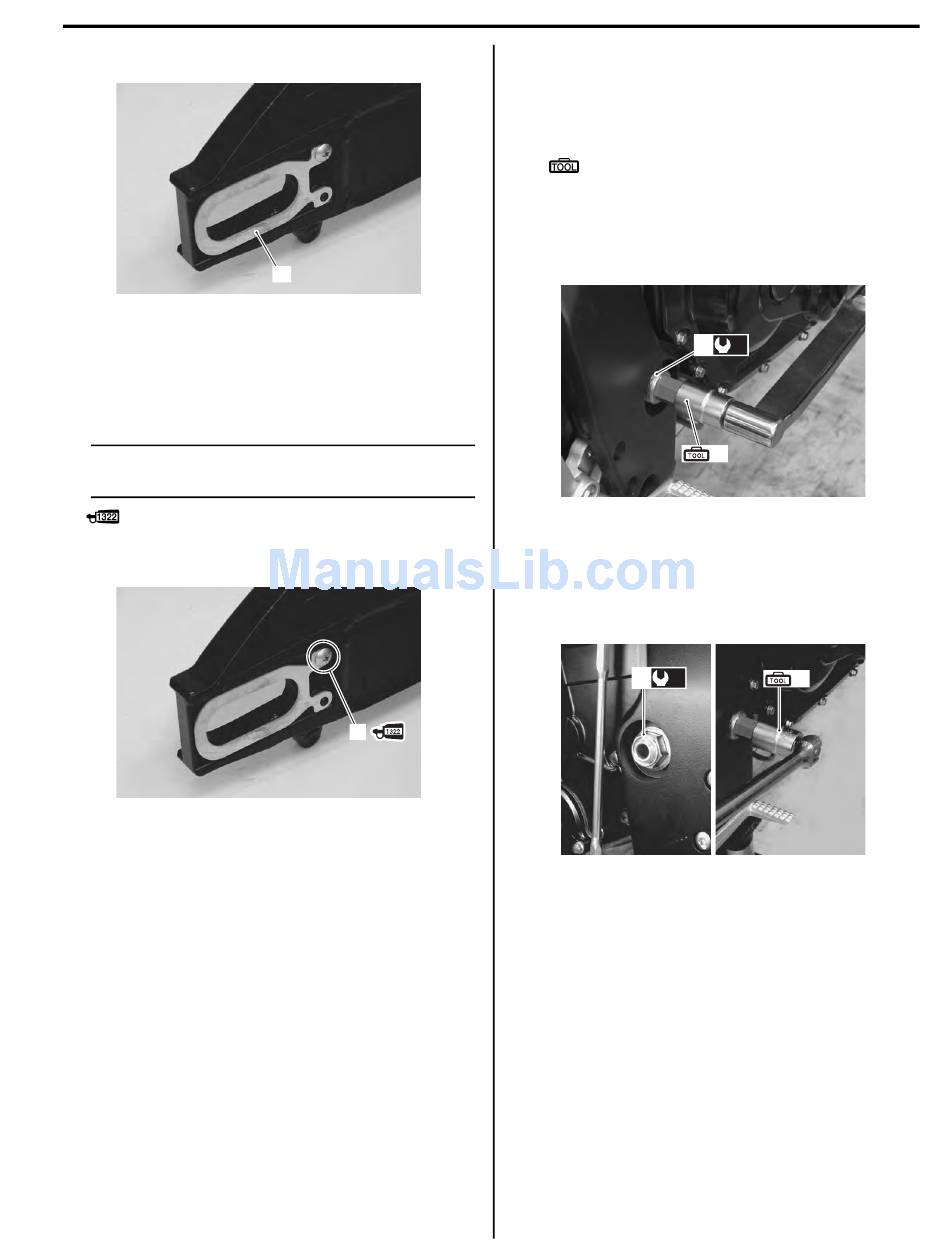

12) Remove the plate (10).
Installation
Install the swingarm in the reverse order of removal. Pay
attention to the following points:
• Install the plate.
NOTE
When reusing the removed screw (1), apply a
small quantity of the thread lock to them.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
10
I837H1230038-01
1
I837H1230039-02
• Adjust swingarm pivot thrust clearance in the following
procedures:
– Insert the swingarm pivot shaft (2) and tighten it to
the specified torque.
Special tool
(A): 09944–28320 (Hexagon socket (19
mm))
Tightening torque
Swingarm pivot shaft (a): 15 N·m (1.5 kgf-m,
11.0 lb-ft)
– Hold the swingarm pivot shaft and tighten the
swingarm pivot nut (3) to the specified torque.
Tightening torque
Swingarm pivot nut (b): 100 N·m (10.0 kgf-m,
72.5 lb-ft)
3
(b)
Rear Suspension: 2C-11
2
(a)
(A)
I837H1230040-01
(A)
I837H1230041-02
