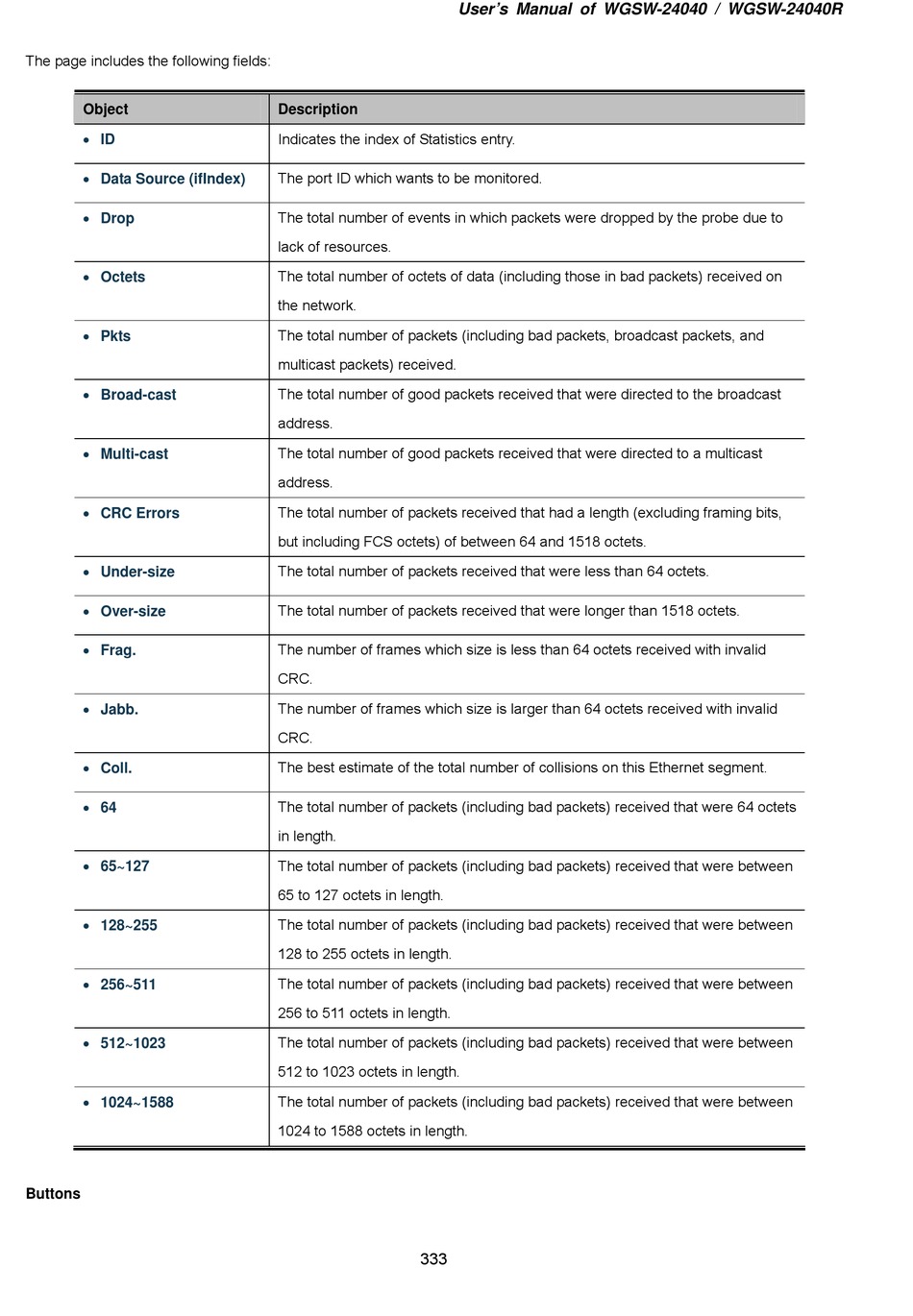

The page includes the following fields:
Object
 ID
 Data Source (ifIndex)
 Drop
 Octets
 Pkts
 Broad-cast
 Multi-cast
 CRC Errors
 Under-size
 Over-size
 Frag.
 Jabb.
 Coll.
 64
 65~127
 128~255
 256~511
 512~1023
 1024~1588
Buttons
Description
Indicates the index of Statistics entry.
The port ID which wants to be monitored.
The total number of events in which packets were dropped by the probe due to
lack of resources.
The total number of octets of data (including those in bad packets) received on
the network.
The total number of packets (including bad packets, broadcast packets, and
multicast packets) received.
The total number of good packets received that were directed to the broadcast
address.
The total number of good packets received that were directed to a multicast
address.
The total number of packets received that had a length (excluding framing bits,
but including FCS octets) of between 64 and 1518 octets.
The total number of packets received that were less than 64 octets.
The total number of packets received that were longer than 1518 octets.
The number of frames which size is less than 64 octets received with invalid
CRC.
The number of frames which size is larger than 64 octets received with invalid
CRC.
The best estimate of the total number of collisions on this Ethernet segment.
The total number of packets (including bad packets) received that were 64 octets
in length.
The total number of packets (including bad packets) received that were between
65 to 127 octets in length.
The total number of packets (including bad packets) received that were between
128 to 255 octets in length.
The total number of packets (including bad packets) received that were between
256 to 511 octets in length.
The total number of packets (including bad packets) received that were between
512 to 1023 octets in length.
The total number of packets (including bad packets) received that were between
1024 to 1588 octets in length.
