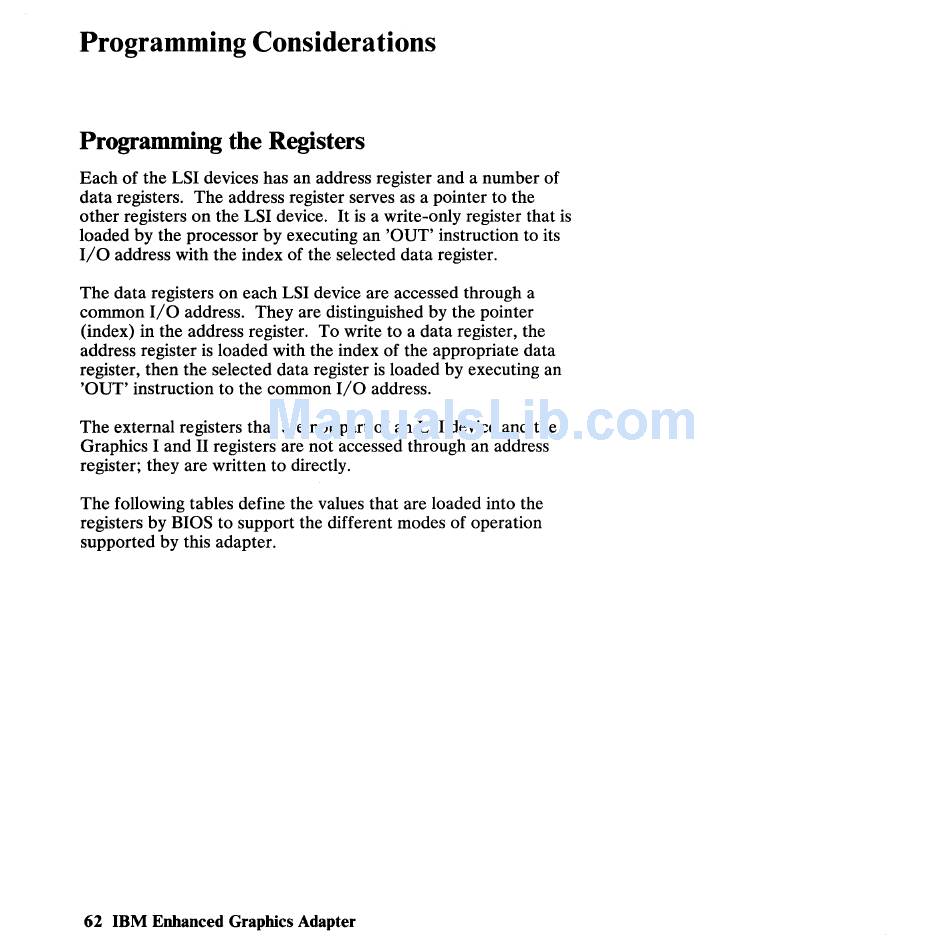

Programming Considerations
Programming the Registers
Each of the LSI devices has an address register and a number of
data registers. The address register serves as a pointer to the
other registers on the LSI device. It is a write-only register that is
loaded by the processor by executing an 'OUT' instruction to its
I/O address with the index of the selected data register.
The data registers on each LSI device are accessed through a
common I/O address. They are distinguished by the pointer
(index) in the address register. To write to a data register, the
address register is loaded with the index of the appropriate data
register, then the selected data register is loaded by executing an
'OUT' instruction to the common I/O address.
The external registers that are not part of an LSI device and the
Graphics I and II registers are not accessed through an address
register; they are written to directly.
The following tables define the values that are loaded into the
registers by BIOS to support the different modes of operation
supported by this adapter.
