Application Diagram - Comnet CLFE4+1SMS[POE](C,U) Series Installation And Operation Manual

INSTALLATION AND OPERATION MANUAL

APPLICATION DIAGRAM

Note: Coaxial applications use the CLFE4+1SMS[POE]C and CLFE1EOC;
UTP applications use the CLFE4+1SMS[POE]U and CLFE1EOU.

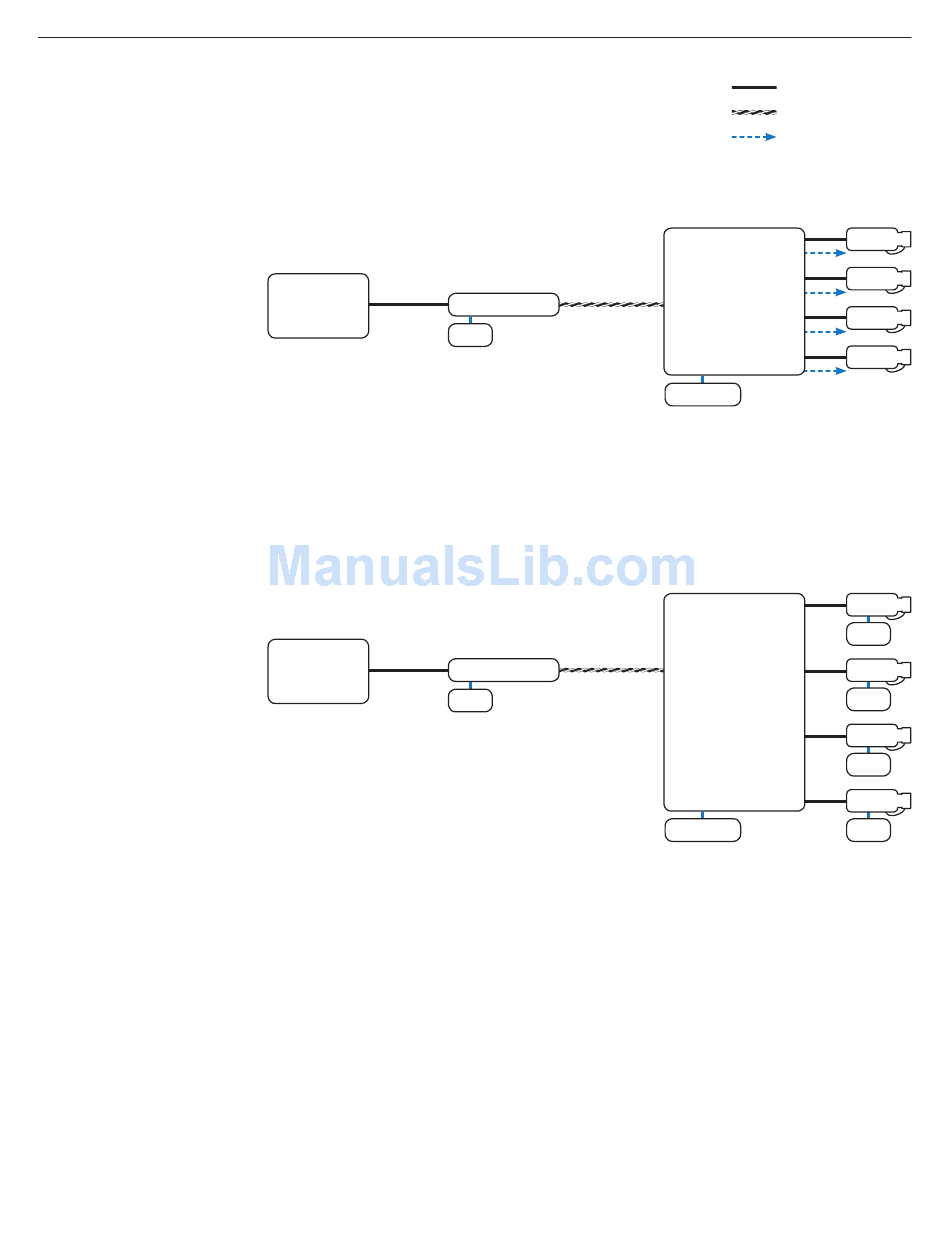

Remote PoE Injection Mode
Non-PoE Mode
IMPORTANT NOTE. PLEASE READ. The applications are
shown as general representations only and are not intended
to show detailed network topologies. Your actual network
will differ, requiring changes or perhaps additional network
equipment to accommodate the systems as illustrated.
Please contact ComNet's Design Center to discuss your
specific requirements.
TECH SUPPORT: 1.888.678.9427
Ethernet
CLFE1EO(C,U)
Switch
Power
Ethernet
CLFE1EO(C,U)
Switch
Power
CLFE4+1SMS[POE](C,U) SERIES
Local
Local
Ethernet Connection
Extended Connection
PoE Power
Remote
PoE Camera
PoE Camera
CLFE4+1SMSPOE(C,U)
PoE Camera
PoE Camera
48V to 56V
Remote
CLFE4+1SMS(C,U)
9V to 15V
INS_CLFE4+1SMS[POE](C,U)_REV– 10/27/11 PAGE 6
