INSTALLATION AND OPERATION MANUAL

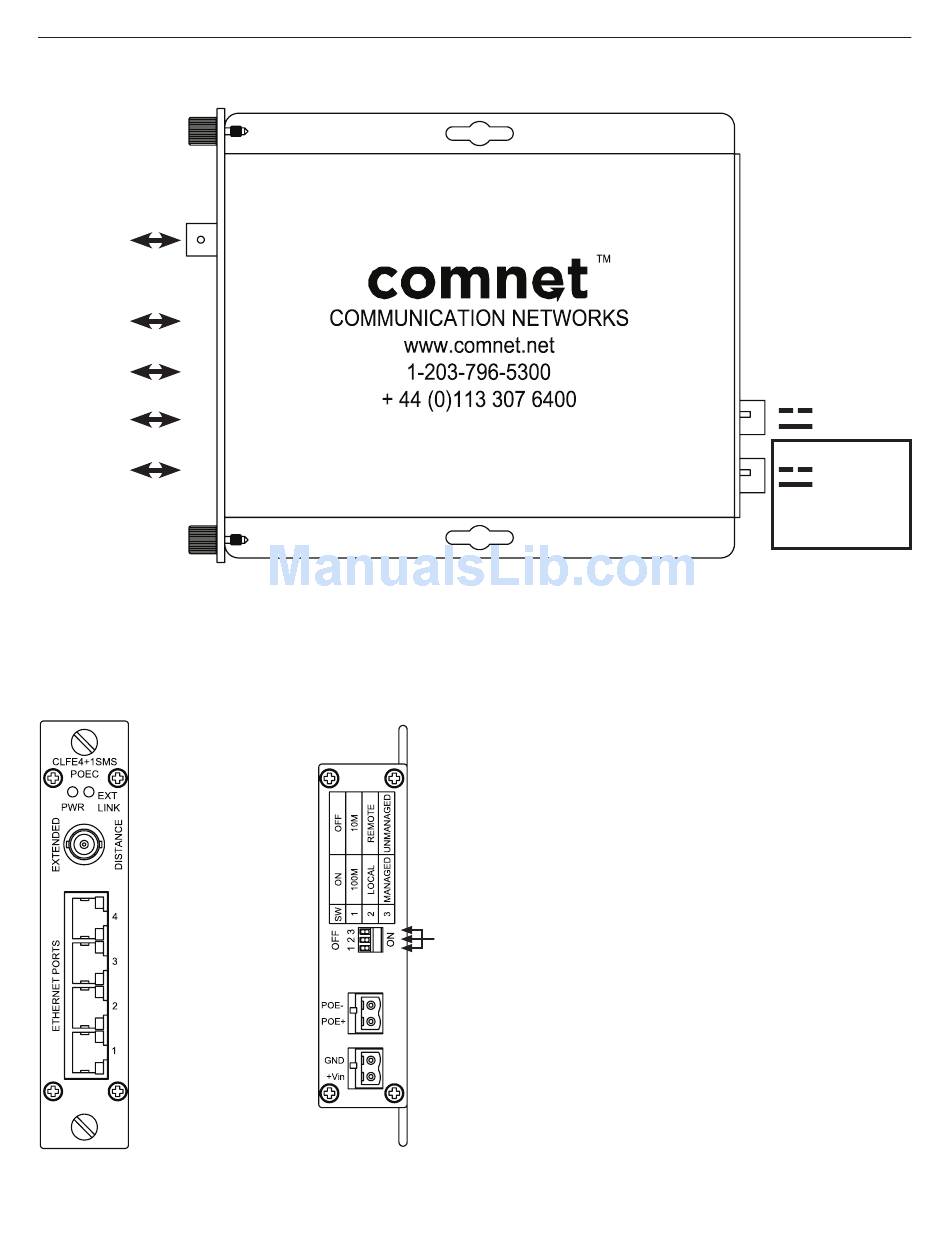

FIGURE 1 – CLFE4+1SMSPOEC FOUR CHANNEL SURFACE OR RACK MOUNT COAX UNIT WITH POE
EXTENDED
DISTANCE
PORT 4
ETHERNET
PORT 3
ETHERNET
PORT 2
ETHERNET
PORT 1
ETHERNET
Operating Power: 9 to 12 VDC (non-PoE), 48 to 56VDC (PoE)
Power Consumption: 10W (non-PoE), 130W (Max PoE)
FIGURE 2 – CLFE4+1SMSPOEC FOUR CHANNEL SURFACE OR RACK MOUNT COAX UNIT WITH POE
CLFE4+1SMSPOEC Front Panel
TECH SUPPORT: 1.888.678.9427
CLFE4+1SMSPOEC Rear Panel
10/100 data rate DIP switch
Local/Remote DIP switch
Managed/Unmanaged DIP switch
See Installation Instructions
CLFE4+1SMS[POE](C,U) SERIES
POE–
POE+
Black w/ White
Stripe (GND)
Black (+Vin)
Do not use for
POE Applications.
