Comnet CLFE4US1TPC Installation And Operation Manual

Important Safety Warning:
Read and keep these directions
heed all warnings
Follow all instructions
do not use this apparatus near water
Clean only with a dry cloth
Install in accordance with the manufacturer's
instructions
This installation should be made by a qualified
service person and should conform to all local codes
See further safety instructions on Page 7
INSTALLATION AND OPERATION MANUAL
CLFE4US1TPC
4-PoRT EThERNET SwITCh wITh UTP/TwISTEd CoPPER
ANd CoAxIAL CAbLE ExTENdER

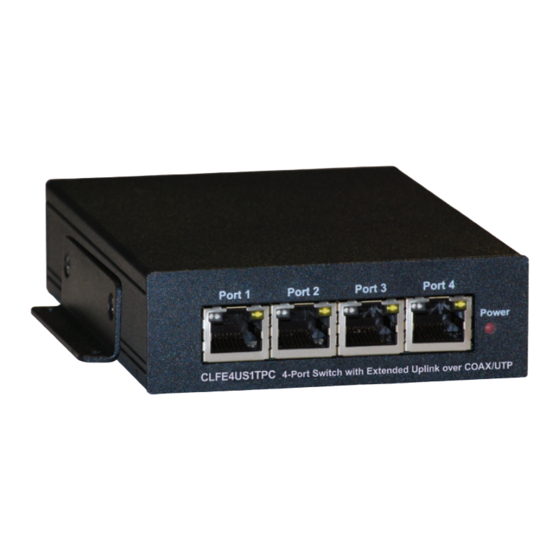

The ComNet CopperLine® CLFE4US1TPC is an unmanaged switch that combines
™
four individual Ethernet data channels over a single standard CoAx or UTP cable.
Symmetric bandwidth assures full bandwidth transmission is maintained over the
entire operational distance for both uploads and downloads with virtually zero packet
loss. bandwidth assurance provides the ability to transmit multiple cameras on
single camera runs with no information loss. Combined with the CopperLine CLFE(x)
CoAx series or CLFE(x)UTP series multi-port extenders up to 64 cameras can be
transmitted to a central location on just 16 cables.
The CLFE4US1TPC can be powered using standard camera 12 VdC or 24 VAC power
supplies. It also can be powered by PoE eliminating the need for remote site extra
cost power supplies.
Type tested under NEMA-TS2 environmental standards for extended temperature
operation from -40C° to +75C°. Certified for use with high-bandwidth megapixel
or hd IP cameras and tested to network packet performance standards along with
major manufacturer compatibility testing.
Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing,
learning and aging and a non-blocking switch fabric.
Packaged in a rugged aluminum housing, these units are designed for desktop or stand-
alone mounting. See Figure A on Page 5 for mounting instructions.
See Figures 1 – 5 for complete installation details.
INS_CLFE4US1TPC_REV–
10/11/11
PAGE 1
