INSTALLATION AND OPERATION MANUAL

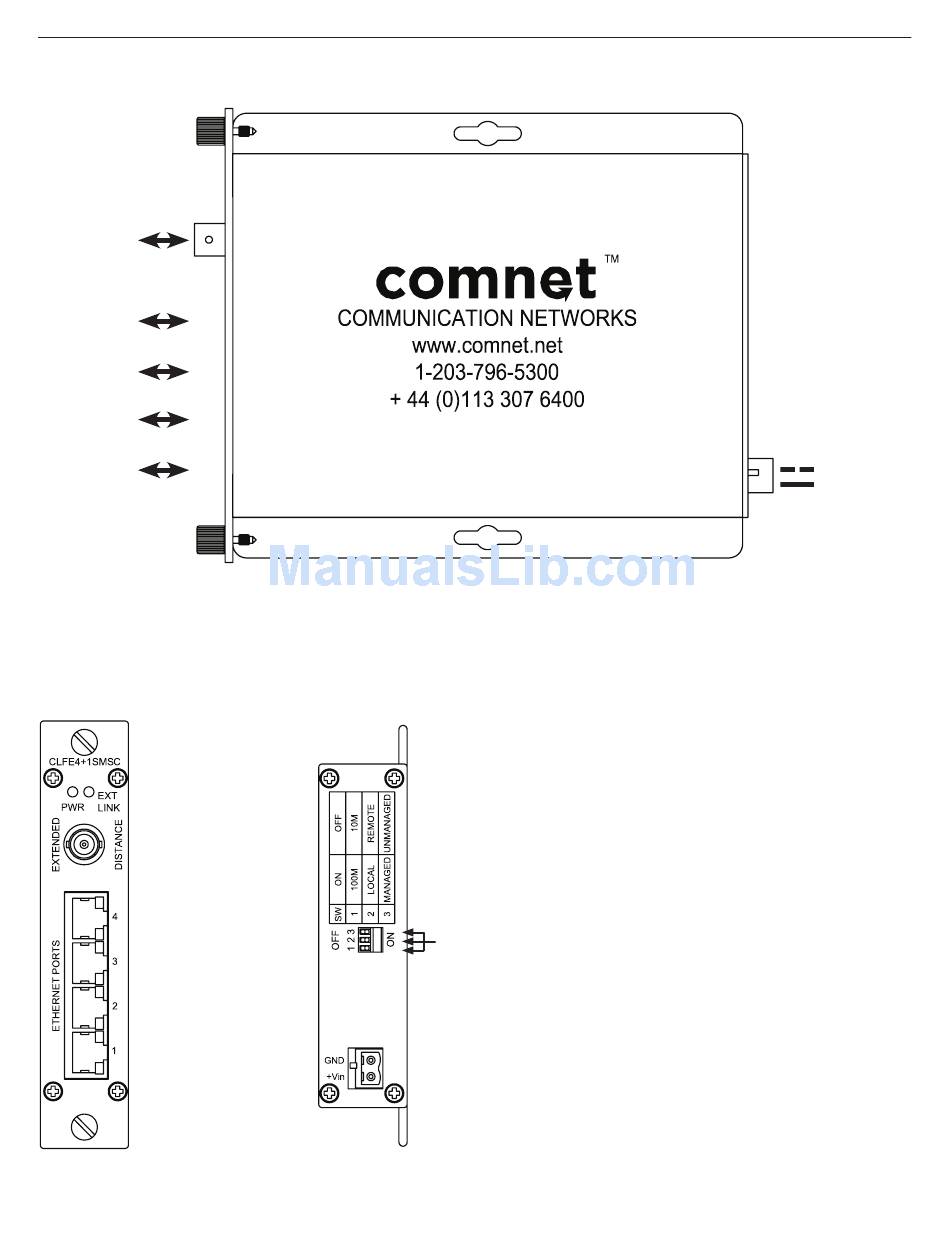

FIGURE 5 – CLFE4+1SMSC FOUR CHANNEL SURFACE OR RACK MOUNT COAX UNIT
EXTENDED
DISTANCE
PORT 4
ETHERNET
PORT 3
ETHERNET
PORT 2
ETHERNET
PORT 1
ETHERNET
FIGURE 6 – CLFE4+1SMSC FOUR CHANNEL SURFACE OR RACK MOUNT COAX UNIT
CLFE4+1SMSC Front Panel
TECH SUPPORT: 1.888.678.9427
Operating Power: 9 to 15 VDC
Power Consumption: 10W
CLFE4+1SMSC Rear Panel
10/100 data rate DIP switch
Local/Remote DIP switch
Managed/Unmanaged DIP switch
See Installation Instructions
CLFE4+1SMS[POE](C,U) SERIES
Black w/ White
Stripe (GND)
Black (+Vin)
INS_CLFE4+1SMS[POE](C,U)_REV– 10/27/11 PAGE 4
