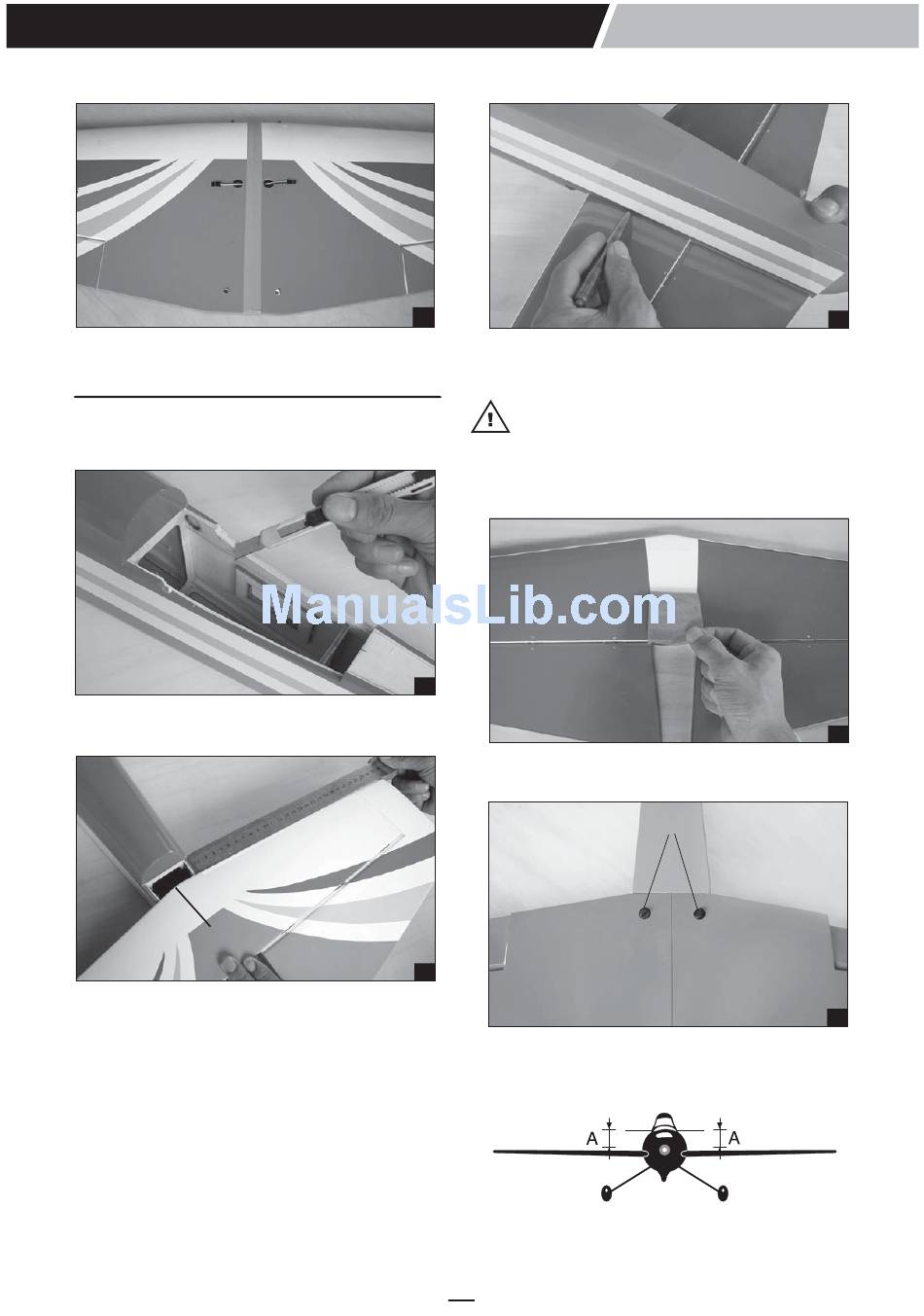

INSTALLING THE HORIZONTAL STABILIZER

1. Using a modeling knife, cut away the covering
from the fuselage for the stabilizer and remove it.
2. Draw a center line onto the horizontal stabilizer.
Center line
3. Check the fit of the horizontal stabilizer in its
slot. Make sure the horizontal stabilizer is
square and centered to the fuselage by taking
measurements, but don't glue anything yet.
4. With the horizontal stabilizer correctly aligned,
mark the shape of the fuselage onto the bottom
of the tail plane using a water soluble/
non-permanent felt-tip pen.
16
5. Remove the stabilizer. Using the lines you just
drew as a guide, carefully remove the covering
from between them using a modeling knife.
When cutting through the covering to remove it,
cut with only enough pressure to only cut
through the covering it's self. Cutting into the
balsa structure may weaken it. This could lead
to possible failure during flight.
17
6. Attach the wing to the fuselage as picture.
18
7. Test the position of the elevator and adjust it as
shown.
6
CAP 232
Plastic Screw
19
20
21
