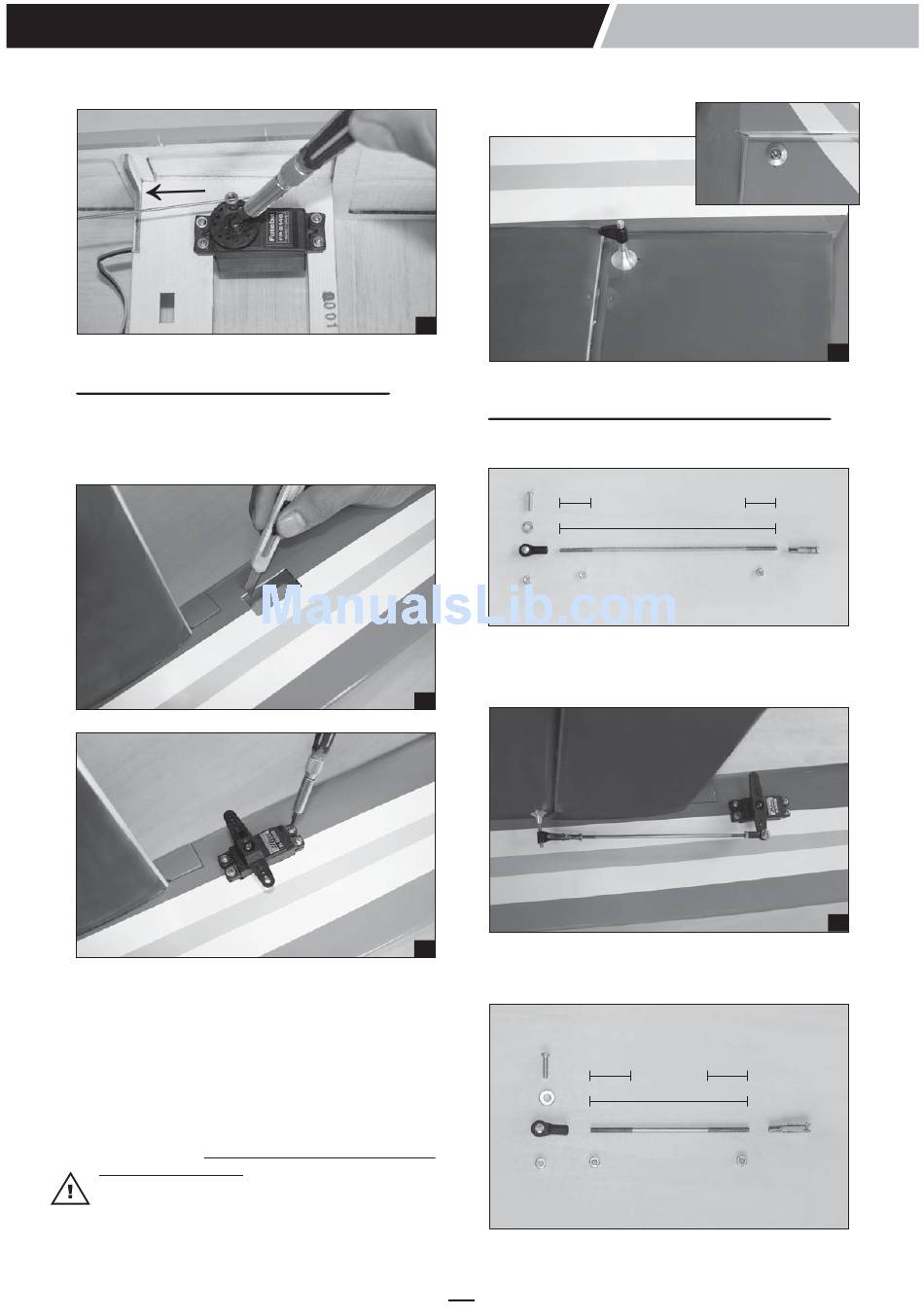

INSTALLING THE ELEVATOR SERVO

1. Remove the covering from both size of the
fuselage.
2. Install two servo to the fuselage as shown.
3. The elevator has a block wood plate for
mounting the control horn. One elevator control
horn in positioned on each elevator. Using a
ruler and a pen, locate and mark the location of
the control horn. It should be mounted on the
bottom side of the elevator at the leading edge,
in line with the elevator pushrod.
4. Drill through the mark you made with a (3mm)
drill bit. Hard the hole with thin CA. Install the
control horn. Remember use thread locking
compound to secure.
Note: The hole on the nylon horn is aligned with
the hinge line and pushrod is aligned with the
servo arm.
38

INSTALLING THE ELEVATOR LINKAGES

The elevator linkages are assembled as shown below
22mm
. Repeat these step as installing the aileron
linkages (Page 4 and page 5)
39
40
. Repeat these step for the second servo elevator.
11
CAP 232
22mm
150mm
22mm 22mm
85mm
41
42
