Instruction Manual
To the cowl

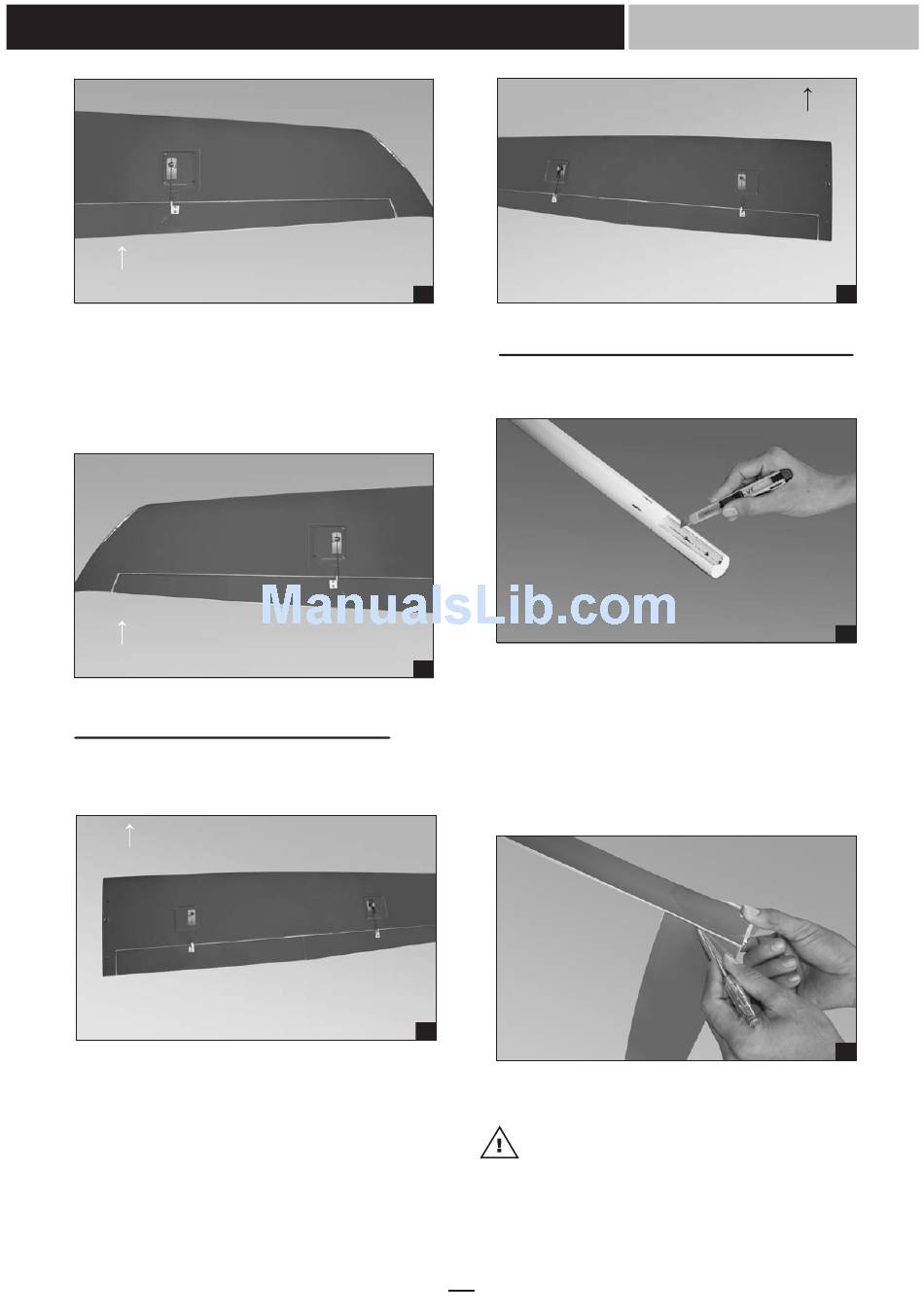

7. Repeat step # 1 - # 6 to install the second
aileron linkage. After both linkages are
completed, connect both of the aileron servo
leads using a Y-harness you have purchased
separately.
To the cowl
INSTALLING THE flap LINKAGES
1. Repeat #1 - #6 from installing the aileron
linkage to install the flap linkage.
To the cowl
2. Repeat #1 - #6 from installing the aileron
linkage to install the second flap linkage. After
both linkages are completed, connect both of
the aileron servo leads using a Y-harness you
have purchased separately.
14

INSTALLING THE HORIZONTAL STABILIZER

1. Using a modeling knife, cut away the covering
from the fuselage for the stabilizer and remove it.
15
2. Check the fit of the horizontal stabilizer in its
slot. Make sure the horizontal stabilizer is
square and centered to the fuselage by taking
measurements, but don't glue anything yet.
3. With the horizontal stabilizer correctly aligned,
mark the shape of the fuselage onto the bottom
of the horizontal stabilizer using a water
soluble/ non-permanent felt-tip pen.
16
4. Remove the stabilizer. Using the lines you just
drew as a guide, carefully remove the covering
from between them using a modeling knife.
When cutting through the covering to remove it,
cut with only enough pressure to only cut
through the covering it's self. Cutting into the
balsa structure may weaken it. This could lead
to possible failure during flight.
4
DIAMOND
To the cowl
17
18
19
