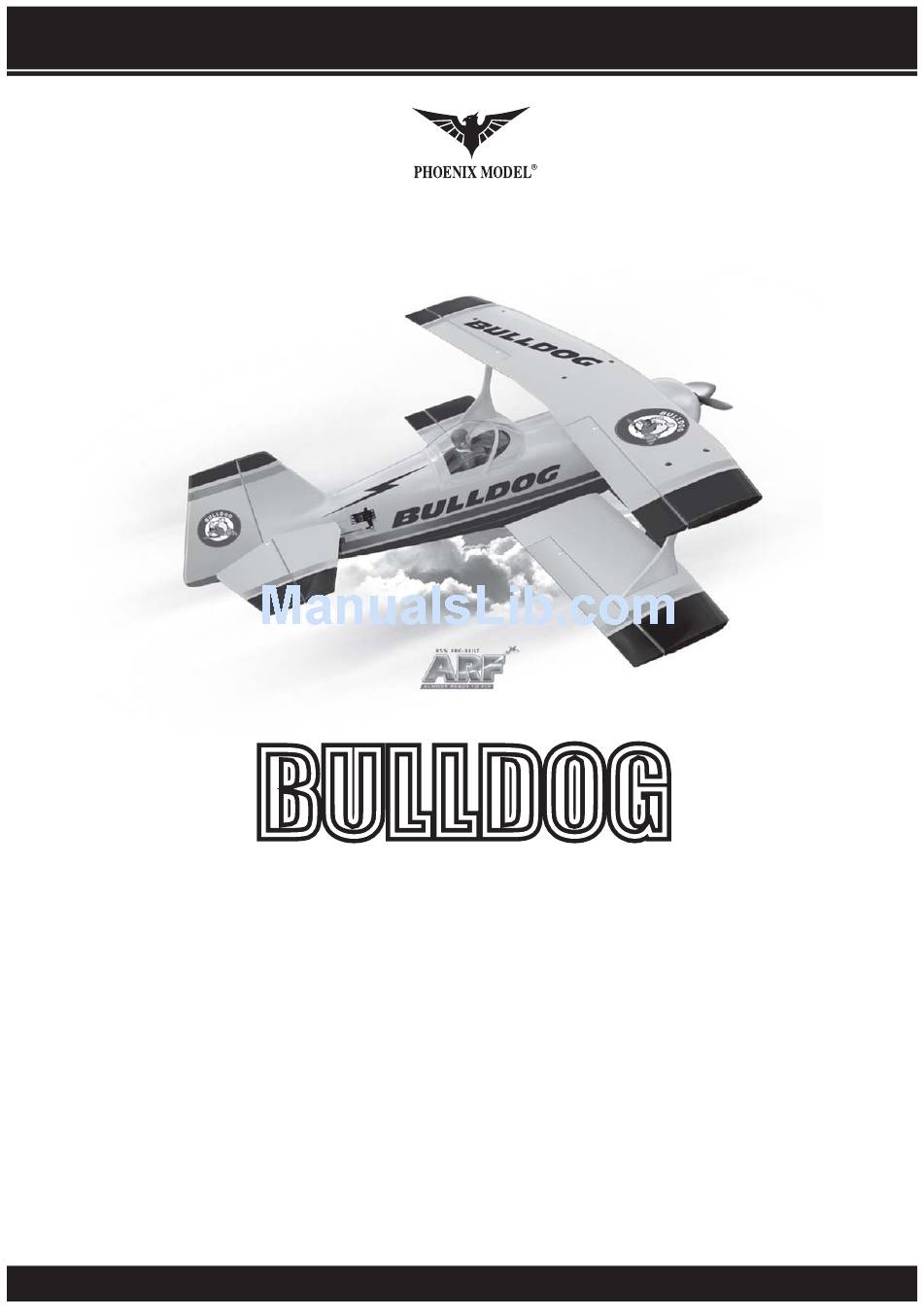

Instruction Manual
BULLDOG
Wingspan :
: 1450 mm (57.1in)
Length
:
Weight
:
Radio
:
Engine
1410 mm (55.5in)
4900gr - 5600gr
6-9 Channel/ 7 servo high torque, 1standard
1.20/ 2 stroke
1.80/ 4 stroke

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BULLDOG and is the answer not in the manual?

Questions and answers

Summary of Contents for Phoenix Model BULLDOG

  • Page 1 Instruction Manual BULLDOG Wingspan : 1410 mm (55.5in) : 1450 mm (57.1in) Length Weight 4900gr - 5600gr 6-9 Channel/ 7 servo high torque, 1standard Radio Engine 1.20/ 2 stroke 1.80/ 4 stroke...
  • Page 2: Aileron Control System

    Instruction Manual BULLDOG KIT CONTENTS: We have organized the parts as they come out of the box for better identification during assembly. We recommend that you regroup the parts in the same manner. This will ensure you have all of parts required before you begin assembly.
  • Page 3 Instruction Manual BULLDOG Installing the aileron servo and linkages (low wing): Remove the covering from the aileron servo Remove the covering from the rear of the Remove the covering. box. aileron servo box. Mark the rear of the servo box onto the wing.
  • Page 4 Instruction Manual BULLDOG Prepare the linkages as these picture above. Prepare the linkages as these picture above. Prepare the linkages as these picture above. Install the connector rod to the control horn. Glue the carbon rod using the C.A glue.
  • Page 5: Installing The Horizontal Stabilizer

    Instruction Manual BULLDOG Mark the hole of the control horn onto Tape the servo lead onto the wing. Install the control horn onto the aileron. the bottom of the aileron. Secure the control horn. Secure the control horn. Install the connector rod to the control horn.
  • Page 6: Installing The Vertical Stabilizer

    Instruction Manual BULLDOG Glue the horizontal to the fuselage using the Check the horizontal and the wing before Remove the covering. epoxy glue. it dry. Installing the vertical stabilizer: Remove the covering from the rear of the Mark the shape of the vertical onto the Remove the covering from the top of vertical.
  • Page 7: Installing The Landing Gear

    Instruction Manual BULLDOG Glue the two nylon keeper by C.A glue. Install the collar to the tail gear. Install the tail wheel. Secure the tail gear. Installing the landing gear: Remove the covering. The main gear set. Install the wheel to the wheel cover.
  • Page 8: Installing The Elevator Servo

    Instruction Manual BULLDOG Installing the elevator servo: Remove the covering. Install the elevator servo. Remove the covering. Secure the control horn. Install the nylon horn. Secure the control horn. Make the same way for the second control The elevator linkages.
  • Page 9: Installing The Rudder Servo

    Instruction Manual BULLDOG Installing the rudder servo: Remove the covering. Install the rudder servo. Remove the covering. Secure the control horn. Secure the control horn. Secure the control horn. Install the nylon horn. Prepare the rudder linkages. Prepare the rudder linkages.
  • Page 10: Installing The Throttle Servo

    Instruction Manual BULLDOG Prepare the stopper for the tank. Install the stopper to the tank. Secure the stopper. Install the silicone tube for the tank Place the fuel tank into the fuselage and secure Insert the nylon housing and secure by (not included).
  • Page 11: Installing The Cowl

    Instruction Manual BULLDOG Secure the throttle rod. Installing the cowl: Make some holes for the engine. Secure the cowl. Install the propeller. Installing the switch: Install the switch on the side of the fuselage. The battery should be installed at the nose side as far as possible.
  • Page 12 Instruction Manual BULLDOG Remove the covering. Install the aluminum holder and secure it. The wing strut set. Remove the covering. Remove the covering. Secure the wing strut to the low wing. Remove the covering. Secure the high wing to the fuselage.
  • Page 13: Control Throws

    Instruction Manual BULLDOG BALANCING CONTROL THROWS It is critical that your airplane be balanced correctly. We highly recommend setting up a plane using the control throws listed. Improper balance will cause your plane to lose control and crash. The control throws should be measured at the widest THE CENTER OF GRAVITY IS LOCATED 125 - 130mm point of each control surface.
