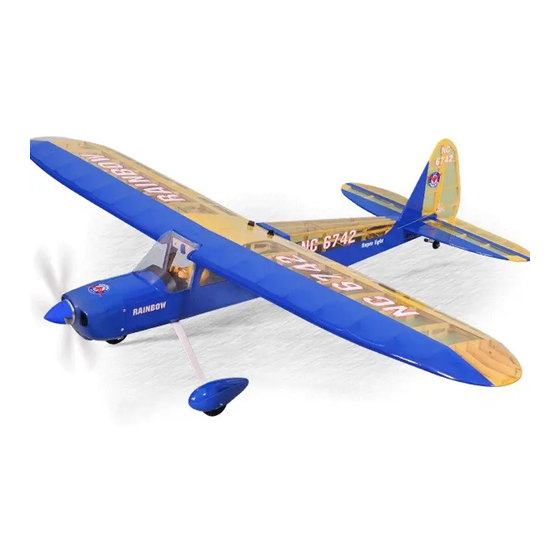

Instruction Manual
Wing span: 1590mm (62.6 in)
Length: 1100mm (43.3 in)
Weight: 1500gr - 1700gr
Motor: AXI 2814/10 or
Motor: 500-600 w/ gear box
Radio: 4 Channel / 4 servos standar
Propeller: 12 x 4.7
We wish you many enjoyable flights with your plane and once again thank you for your choosing a Phoenix Model product
Advertisement
Related Manuals for Phoenix Model Rainbow
Summary of Contents for Phoenix Model Rainbow
- Page 1 Motor: AXI 2814/10 or Motor: 500-600 w/ gear box Radio: 4 Channel / 4 servos standar Propeller: 12 x 4.7 We wish you many enjoyable flights with your plane and once again thank you for your choosing a Phoenix Model product...
-
Page 3: Kit Contents
KIT CONTENTS: We have organized the parts as they come out of the box for the better identification during assembly. We recommend that you regroup the parts in the same manner. This will ensure you have all of parts required before you begin assembly. KIT CONTENTS AIR FRAME ASSEMBLIES RUDDER CONTROL SYSTEM... - Page 4 Center line Draw a center line. Test fit the dihedral brace into the box of the wing joiner. Trim tape Glue the wing with epoxy. Apply the trim tape to the center section of the wing where they join. Trim tape Apply the trim tape to the center section of the wing where Remove the covering from the bottom of the wing.
- Page 5 Tape the servo lead to the thread. Pull the servo lead out. Using masking tape, tape the servo leads on the bottom of Install the servo aileron into the servo box. the wing. Screw Metal pushrod Control horn Nylon clevises Install the aileron control horn.
- Page 6 Center line Remove the covering Draw a center line. Remove the covering from the fuselage. Mark the shape of the fuselage on the top and on the Cut away the covering from the top and the bottom of the bottom of the elevator. elevator.
- Page 7 Nylon control horn Glue the vertical by epoxy. Install the control horn of the rudder. Clevis Control horn Pushrod Install the rudder pushrod. Install the control horn of elevator. Screw Pushrod Clevis Landing gear Install the elevator pushrod. Install the landing gear. Drill Install the wheel pants.
- Page 8 Screw Clasps Install the tail gear. Install the tail gear. Install the elevator and the rudder servo. Install the elevator and rudder linkages. Prepare the engine mount. Insert the engine mount into the fuselage. Glue the engine mount into the fuselage. Drill 4 holes to install the motor.
- Page 9 Install the motor. Install the battery. Install the cowling. Secure the cowling. Install the propeller.
-
Page 10: Control Throws
BALANCING CONTROL THROWS 1. It is critical that your airplane be balanced 1. We highly recommend setting up a plane using correctly. Improper balance will cause your the control throws listed. plane to lose control and crash. 2. The control throws should be measured at the THE CENTER OF GRAVITY IS LOCATED widest point of each control surface.
