Installing The Landing Gear; Installing The Elevator Servo - Phoenix Model EXTRA 260-EP Instruction Manual

Instruction Manual

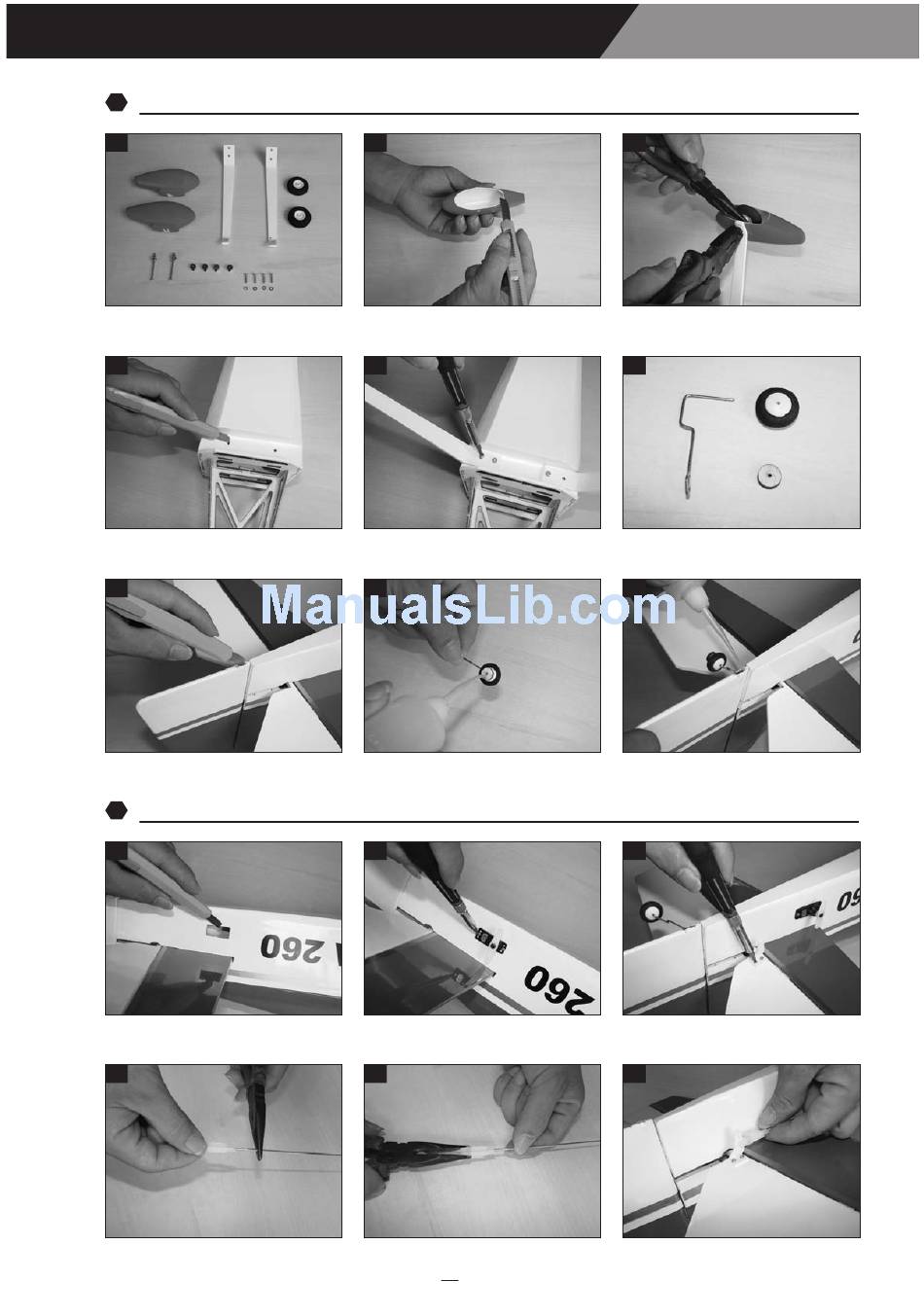

Installing the landing gear:

3
2
29
The landing gear set.
32
Remove the covering.
35
Make the slot for the tail gear.

Installing the elevator servo:

4
2
38
Remove the covering.
41
Insert the clevis to the rod.
30
Prepare the wheel pant.
33
Install the landing gear.
36
Glue the wood collar to the gear.
39
Install the elvator servo.
42
Insert the silicon tube to the clevis.
4
EXTRA 260-EP
31
Install the wheel.
34
The tail gear set.
37
Glue the tail gear to the rudder.
40
Install the control horn.
43
Attach the clevis to the control horn
