In Figure 5-70, please click direction arrows to adjust PTZ position. There are total 8 direction
arrows.
Here is a sheet for you reference.
Name Function
key
Zoom
Focus
Iris

5.6.9 Display

Display setup interface is shown as below. See Figure 5-72.
Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.
Channel name: Here is for you to modify channel name. System max support 25-digit (The
value may vary due to different series). Please note all your modification here only applies to
NVR local end. You need to open web or client end to refresh channel name.
Time display: You can select to display time or not when system is playback.
Channel display: You can select to channel name or not when system is playback.
Resolution: There are four options: 1280×1024(default),1280×720,1024×768,800×600.
Please note the system needs to reboot to activate current setup.
Enable tour: Activate tour function.
Interval: System supports 1/4/8/9/16-window tour. Input proper interval value here. The value
ranges from 5-120 seconds. In tour process, you can use mouse or click Shift to turn on
window switch function.
switch function.
Monitor tour type: System support 1/8-window tour.
Alarm tour type: System support 1/8-window tour.
Please highlight icon
After completing all the setups please click save button, system goes back to the previous menu.
and to adjust zoom, focus and iris.

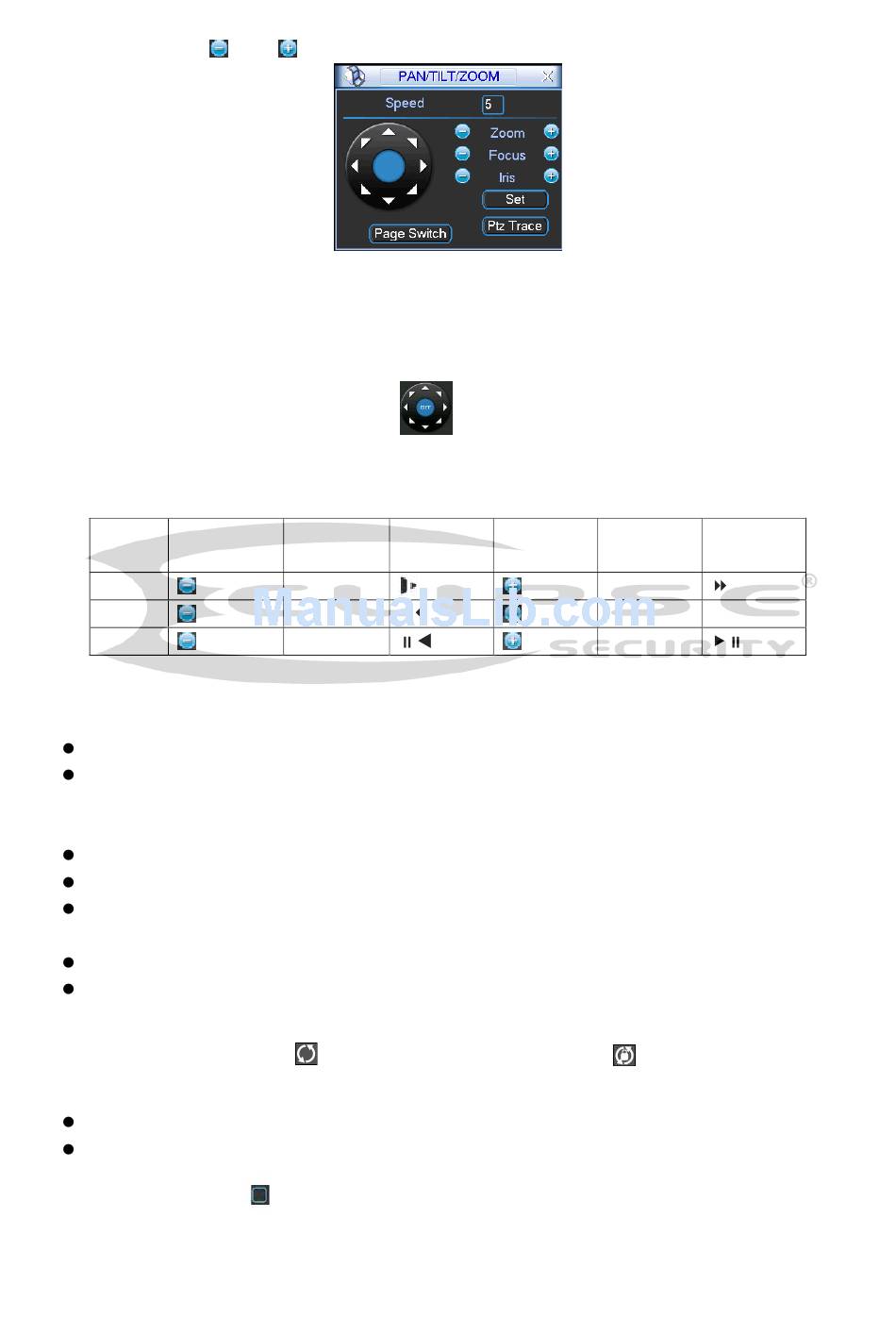

Figure 5-70
Figure 5-71
function Shortcut
key
Wide
Near
│
Close
Stands for opening switch function,
to select the corresponding function.
Function function
key
Far
Far
Open
stands for closing
Shortcut
Key
►
│
