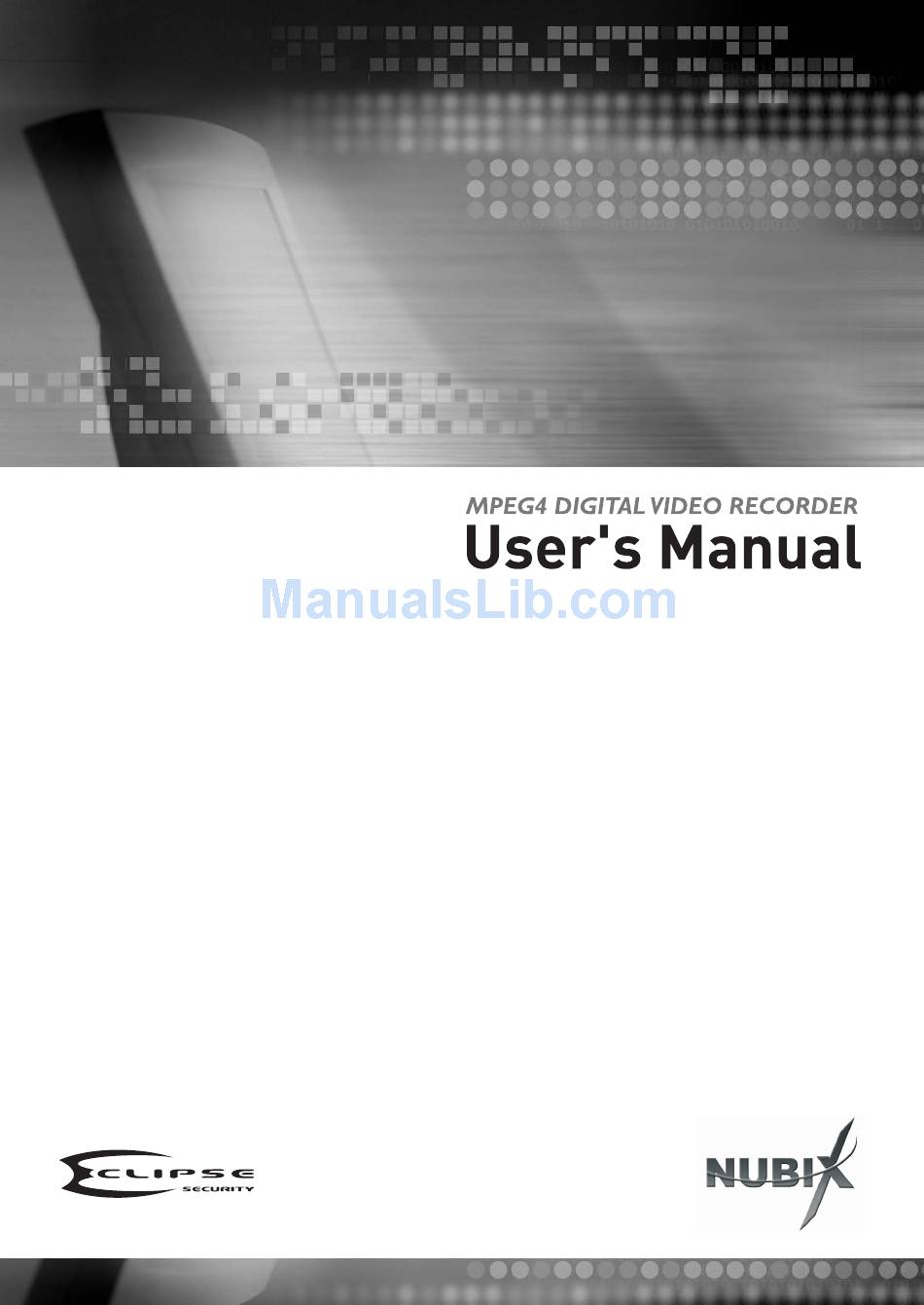

Eclipse Security Nubix User Manual

Mpeg4 high-end 4ch, 8ch and 16ch dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nubix and is the answer not in the manual?

Questions and answers

Related Manuals for Eclipse Security Nubix

Summary of Contents for Eclipse Security Nubix

  • Page 2 Thank you for using our product. 1. This is user's manual for High-end 4CH, 8CH and 16CH DVR (Digital Video Recorder). 2. This manual contains product specification and introduction, installation guide, operating guide and other necessary matters for easy understanding. Users should read this user's manual carefully for proper use.

  • Page 3: Table Of Contents

    CONTENTS Contents CH 1. Product Introduction 1-1. Product Contents 1-2. Specifications 1-3. Product Characteristics 1-4. Name of Each Part 1-4-1. 4CH 1-4-2. 8 and 16CH CH 2. Installation Guide and Cautions 2-1. Cautions 2-2. Product Installation 2-2-1. Power Connection 2-2-2. Connecting External Device 2-2-3.
  • Page 4 CONTENTS Contents 3-3. Setup Menu Screen 3-3-1. A/V(Audio/Video) 3-3-2. Rec(Recording) 3-3-3. Event In 3-3-4. Alarm Out 3-3-5. Storage 3-3-6. NETWORK 3-3-7. SYSTEM CH 4. Mouse Operation CH 5. Client Program 5-1. Installing Client Program 5-2. How to use Client Program 5-2-1.

  • Page 5: Ch1. Product Introduction

    CH 1 Product Introduction CH1. Product Introduction 1-1. Product Contents <4CH> After removing packing materials of this product, check whether all following contents are included. Main Body (DVR): This converts the analog video and audio signal to the digital signal and saves on HDD. Adapter: This 12V adapter supplies power to the product.
  • Page 6 CH 1 Product Introduction <8 and 16 CH> After removing packing materials of this product, check whether all following contents are included. Main Body (DVR): This converts the analog video and audio signal to the digital signal and saves on HDD. Adapter: This 12V adapter supplies power to the product.

  • Page 7: Specifications

    CH 1 Product Introduction 1-2. Specifications <4CH> Image Input/Output : NTSC / PAL Recording Speed : NTSC - 1~123fps(based on 360X240) PAL - 1~103fps(based on 360X288) Compression Method : MPEG4 Technology Recording Time : 48~17,780 hours (160G) Power : DC12V, 4.5A (DC adapter) Power Consumption : 34W External Terminal : Video Input - BNC 4CH Video Output - BNC 1CH, S-Video 1CH, VGA 1CH(optional)
  • Page 8 CH 1 Product Introduction <8CH / 16CH> Image Input/Output : NTSC / PAL Recording Speed : NTSC -1~127(8ch), 1~135fps(16ch) : based on 360X240 PAL - 1~107(8ch), 1~115fps(16ch) : based on 360X288 Compression Method : MPEG4 Technology Recording Time : 44~17,780 hours (160G, 16ch) 47~17,780 hours (160G, 8ch) Power : DC12V, 8A (DC adapter) Power Consumption : 96W...

  • Page 9: Product Characteristics

    CH 1 Product Introduction 1-3. Product Characteristics 1) High quality picture This enables recording and playing high quality digital image based on MPEG4 compression method. 2) High reliability With Embedded hardware and software design, this maintains higher product reliability compared to common PC type products. 3) Simple usage This allows users to use it conveniently by placing control buttons similar to existing ones on VCR, and users can easily learn the usage.
  • Page 10 CH 1 Product Introduction 12) Spot monitoring Spot out can be enable to monitor sequentially in other place. 13) P/T/Z control By built in RS485, various P/T/Z cameras can be used. 14) Individual resolution setting You can record in each channel by choosing 360X240, 720X240 and 720X480 individually.

  • Page 11: Name Of Each Part

    CH 1 Product Introduction 1-4. Name of Each Part 1-4-1. 4CH [Front Panel] POWER RECORD ENTER NETWORK Backup MENU EXIT POWER 1 . Control Buttons 3 . Menu and Arrow Keys Status Lamps 1. Control Button : Record, Search, Lock feature. (※...
  • Page 12 CH 1 Product Introduction [Rear Panel] 14. VIDEO IN 12. RS485 15. VGA 13. SENSOR IN 11. SENSOR OUT 9. LAN 8. LOOP OUT 6. NT-PAL 4. AUDIO OUT 16. USB 3. SERIAL 1. DC12V 7. VIDEO OUT 5. S-VIDEO 10.

  • Page 13: And 16Ch

    CH 1 Product Introduction 1-4-2. 8 and 16CH [Front Panel] 2. EJECT 6. Function key 3. Playback button 4. USB port 5. Backup device 8. LED 1. Number buttons 7. Enter and arrow key 1. Number buttons : If you press this button, it will be changed to full screen in live viewing or playback (※...
  • Page 14 CH 1 Product Introduction [Rear Panel] 1. VIDEO IN, LOOP 2. Power switch 3. SENSOR, ALARM 4. Video out 5. Audio In/Out 6. RS 485 7. RS 232 8. NTSC/PAL switch 9. LAN 10. Power adapter 1. VIDEO IN : This receives images from cameras and sends them to monitors. LOOP : This sends the images from the cameras to the other devices.

  • Page 15: Cautions

    CH 2 Installation Method and Cautions CH2. Installation Method and Cautions 2-1. Cautions - Avoid installing the product where there are direct rays or it is hot by locating near from heat generator. (May cause fire) - Do not put vase, flowerpot, cup, cosmetics, drug, and anything the contain water on product.
  • Page 16 CH 2 Installation Method and Cautions -Do not damage on power cord or plug, and bend or twist or pull too much, and put it between other objects or heat. If power outlet insertion part is not tight, do not use it. (May cause fire or electric shock.) -Do not drop or give a shock to the product.

  • Page 17: Product Installation

    CH 2 Installation Method and Cautions 2-2 Product Installation This product may be composed of camera and monitor in default, and additionally the sensor, microphone, speaker and PC for network can be connected if necessary. 2-2-1. Power Connection 1) Connect adapter cable to power connection terminal at rear side. 2) Input AC power to the adapter.
  • Page 18 CH 2 Installation Method and Cautions *What are N/O (Normal Open), N/C (Normal Close)? This is a terminology explaining operation method of Sensor. N/O Sensor is that contact maintains Open status in normal condition and contact is converted to Close status with beginning operation.
  • Page 19 CH 2 Installation Method and Cautions 4) Connection Using PTZ camera In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as shown at following figure. VIDEO CABLE SPEED RS485 CABLE DOME 5) Connection with POS or ATM In case of operating with POS or ATM , connect POS or ATM to product using the expanded serial cable as shown at following figure.
  • Page 20 CH 2 Installation Method and Cautions 7) Installing backup drive You can use the DVD-RW or CD-RW for backup. In this case you can install just one hard disk drive. To install the backup drive, open the top cover and install the backup drive on the bracket.

  • Page 21: Connecting External Device(8 And 16 Ch)

    CH 2 Installation Method and Cautions 2-2-3. Connecting External Device(8 and 16 CH) ※ Connect it when power of the product is off. ※ Read through user's manual for the device you are connecting carefully. 1) How to Connect External Video/Audio Device MONITOR Rear CAMERA VIDEO...
  • Page 22 CH 2 Installation Method and Cautions SENSOR SIREN Sensor In : Connect the sensors. POWER Sensor Out : Connect the external electric devices. 3) Connecting with PC using LAN cable If you want to connect DVR to PC directly, use Cross Cable(1), and if you want to use HUB, use Direct Cable(2).
  • Page 23 CH 2 Installation Method and Cautions 4) Connection Using PTZ camera In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as shown at following figure. VIDEO CABLE SPEED RS485 CABLE DOME 5) Connection with POS or ATM In case of operating with POS or ATM , connect POS or ATM to product using the expanded serial cable as shown at following figure.
  • Page 24 CH 2 Installation Method and Cautions 7) Installing backup drive You can use the DVD-RW or CD-RW for backup. In this case you can install just one hard disk drive. To install the backup drive, open the top cover and install the backup drive on the bracket.

  • Page 25: Ch3. How To Use

    CH 3 How to Use CH3. How to Use 3-1. LIVE Screen If you turn on power after completing installation, 16 splitting screen is shown on the monitor in real time as following. ※ When the system is locked, the Select ID window appears. If you log in with User mode, you can only operate with live and playback.

  • Page 26: Information Feature

    CH 3 How to Use 3-1-1. INFORMATION Feature This feature shows current settings of product through GUI (Graphic User Interface) and INFO button at front side is used for this feature. When you turn on power, this will show current date and time, System Lock Setting, HDD usage, Video Loss Check, Sensor ON/OFF, Motion Detection Check, Recording Stat us and Schedule Feature Usage.

  • Page 27: Power Off

    CH 3 How to Use ▶ Live Screen GUI Date (e.g.: yyyy/ mm/dd) time HDD usage Lock up/ Administrator Log in/ User Log in Scheduler OFF/ON Video Loss Sensor On/Off Motion detection Text In Recording ON Channel switching OFF/ON Sound On and selected channel / Mute 3-1-2.

  • Page 28: Display Mode Change

    CH 3 How to Use 3-1-3. Display mode change You can change the display mode using the ‘Display’ button in front of the DVR. If you simply enlarge certain channel to the full screen, use the 1~10+ buttons. From 1 to 10, press the related button and over 10, use the 10+ and 1~6 buttons sequentially.

  • Page 29: Ptz (Pan, Tilt And Zoom)

    CH 3 How to Use 3-1-4. PTZ (Pan, Tilt and Zoom) It is possible to control the pan and tilt camera by itself. Press the ‘PTZ’ button to enter the PTZ mode. For Menu setting, you can set it by pressing button as displayed at bottom of window.
  • Page 30 CH 3 How to Use 8) Setup : If you press the ‘MENU’ button on PTZ window, the camera setup window will appear.
  • Page 31 CH 3 How to Use Driver: Choose Driver to be suitable for PAN/TILT Camera manufacturer. You have to set Comport value according to the connected camera. There are more kinds of camera which can be supported. Please contact the tech support to want to know the other cameras.
  • Page 32 CH 3 How to Use 3) Selecting channel: #1 button is used to change the current channel. 4) Focus In/Out : This controls focus of camera. Use #2 button (Focus In) and #3(Focus Out). 5) Zoom In/Out : You can enlarge(#4 button) or reduce (#5 button). 6) Iris In/Out : Control brightness of camera.

  • Page 33: Search Screen

    CH 3 How to Use 3-2. Search Screen ▶ Play Screen GUI (4ch) Play : Forward normal speed Playback : Backward normal speed FF (Fast Forward): FF×2, 4, 8, 16, 32, 64 times faster FB (Fast Backward): FB×2, 4, 8, 16, 32, 64 times faster SF (Slow Forward):SFx1/2, SFx1/4 SB (Slow Bacward):SBx1/2, SBx1/4 STILL (Pause)
  • Page 34 CH 3 How to Use ▶ Play Screen GUI (8 and 16 ch) Play : Forward normal speed Playback : Backward normal speed FF (Fast Forward): FF×2, 4, 8, 16, 32, 64 times faster FB (Fast Backward): FB×2, 4, 8, 16, 32, 64 times faster SF (Slow Forward):SFx1/2, SFx1/4 SB (Slow Bacward):SBx1/2, SBx1/4 STILL (Pause)
  • Page 35 CH 3 How to Use For searching the recorded files, press ‘Search’ button in front of DVR. You will see following search window. 1) Graphic Search You can search the recorded files graphically using calendar. 2) Log List This shows a list of files and events (Sensor, Motion Detection, System and Text in) log.

  • Page 36: Graphic Search

    CH 3 How to Use 3-2-1. Graphic Search This displays all recorded images graphically. After choosing the ‘Graphic Search', you can see the calendar at first. Use the arrow keys, go to the wanted date which are lit in white.(figure1) Then pressing the ‘Enter’...

  • Page 37: Log List

    CH 3 How to Use 3-2-2. Log List After choosing the ‘Log List', you can see the date at first. Use the arrow keys, go to the wanted date, which are lit in sky blue (figure1). In this search mode, you can search the File and Event List which include event, record, and system figure1...

  • Page 38: Text In Search

    CH 3 How to Use 3-2-3. Text In Search After choosing the ‘Text In Search', you can see the search criterion at first. Use the arrow keys, enter the wanted date, time, channel and keyword using the number keys on the front. And you can use the virtual keyboard to enter the keyword.

  • Page 39: Time Search

    CH 3 How to Use 3-2-4. Time Search This is very useful function to type the time directly you want to search. If you choose the Time Search, you will see following window. If you input searching time with using number button, relative file or the closest file is directly played.

  • Page 40: Backup

    CH 3 How to Use 3-2-5. BACKUP You can backup the recorded files on CD,DVD,USB and playback from those directly. figure1 figure2 1) How to backup There are two ways to back up. You can go to the backup menu in search. After inserting the empty media on the drive or USB, go to ‘Backup’...

  • Page 41: File Search In Play Mode

    CH 3 How to Use 3-2-6. File Search in Play Mode If you press PLAY Button while playing a file, Date/Time window will appear and you can select and view time you want by using direction buttons. 3-2-7. INFORMATION Feature in Play Mode When you play a recorded file, file information for currently playing file is displayed.

  • Page 42: Instant Replay

    CH 3 How to Use 3-2-8. Instant Replay This is very convenient function to catch the abrupt accident. During live viewing, you can go directly to the playback screen. If you press the ‘PLAY’ button or any other buttons related playback upon live viewing, the DVR goes to the ‘PLAY’...

  • Page 43: Setup Menu Screen

    CH 3 How to Use 3-3. SETUP MENU Screen If you press MENU Button in LIVE Mode, following window appears and you can change various product settings. ※ For moving the menu, use Up/Down Button. For changing the setting, use Left/Right Button.
  • Page 44 CH 3 How to Use If you select the Camera Name using ‘Menu’ button, it appears the virtual keyboard in screen. Use the arrow key to go to the wanted letter and press the ‘Enter’ key to input the character. You can also use the hot key for shift, space and delete. After inputting the name press the ‘Menu’...

  • Page 45: Rec(Recording)

    CH 3 How to Use 3-3-2. Rec (Recording) With this menu, you can set the recording variables of DVR and the Scheduler. [When Select Scheduler Off] If you select Scheduler Off, Scheduler Recording setting window disappears and a window to set normal recording mode appears. Since you can set normal recording and event recording differently, you can use it conveniently as you want.
  • Page 46 CH 3 How to Use ③ Quality: Set picture quality. As quality gets higher, screen quality gets better but saving period gets shorter because file size gets bigger. There are 4 steps quality such as Super, High, Medium and Low To save the setting, choose ‘Yes’...
  • Page 47 CH 3 How to Use [When You Select Scheduler On] If you select Scheduler On, following [Schedule Recording] setting window appears. Since you can set recording weekly, you can reduce recording of unnecessary time period. In Scheduler window, days and channels are displayed, and recording information for each channel is displayed at bottom of window.

  • Page 48: Event In

    CH 3 How to Use 3-3-3. Event In With this menu, you can set sensor input/output, motion detection feature and text in setup. If you set this feature, it is converted to record mode automatically if there is an Event generation although you don't use Record Button at front side. You can also set each channel individually.
  • Page 49 CH 3 How to Use ① Channel: Select a channel you want to set for motion detection record. ② Sensitivity.: Users can set this as default value for detection motion and input range is within 1~10. Using #2 button to change the sensitivity.

  • Page 50: Sensor Setting

    CH 3 How to Use 3) Sensor type: to set type (N/O, N/C) for each Sensor. The type of sensor should be set the same as with DVR. Otherwise, DVR may keep recording on while sensor is not activated. 4) Event Input: You can choose event input for each channel. ①...

  • Page 51: Alarm Out

    CH 3 How to Use 3-3-4. Alarm Out 1) Alarm 1~12 : It sends the alarm output to checked ports. From 1 to 4, the output is dry contact. So you can connect directly the other electronic devices using this ports.

  • Page 52: Storage

    CH 3 How to Use 3-3-5. Storage IDE1~IDE4 Display the information and usage of the hard disk drives. If you press the ‘Format’ button on each IDE, only that HDD will be formatted. If you install the backup drive such as CD-RW, DVD, that information will be shown on IDE4.
  • Page 53 CH 3 How to Use 5) S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) Setup This function lets you probe the hard disk drives and investigate the status of the drivers automatically. If you press the menu button upon this position, the setup window will appear.

  • Page 54: Network

    CH 3 How to Use 3-3-6. NETWORK This is IP address setting when DVR is connected to LAN. Input IP Address, Subnet Mask and Gateway you want to input and then save them by pressing ENTER Button. (If you connected PC and DVR on 1:1, Subnet Mask and Gateway value of PC and DVR should be set to be same.) 1) DHCP (Dynamic Host Configuration Protocol) Set whether you want to use DHCP or not (On/Off)
  • Page 55 CH 3 How to Use ① DVR Name Type the URL of DVR. Press ‘Enter’ button first, using the virtual keyboard, type the address except http:// . ② ID, Password Type the ID and password that is registered in www.dyndns.com. 4) Status This shows the information how many connections and what is the action of each connection.

  • Page 56: System

    CH 3 How to Use 3-3-7. SYSTEM In this menu, you can set product's system (time, HDD information) , change Password and power off. 1) NTP (Network Time Protocol) Server This function is to change the time of DVR automatically via network. Press the ‘Enter’...
  • Page 57 CH 3 How to Use 6) Key Buzzer Turn it on/off the buzzer sound when press the button. 7) Auto Lock Lock Time allows you to set system lock setting that makes system to go into lock mode for certain period of time. You can select within 1~10 min. When Lock Time is Off, you have to have Admin authority to change this setting.

  • Page 58: Ch4. Mouse Operation

    CH 4 Mouse Operation CH4. Mouse Operation 4. Mouse Operation You can operate the DVR with the mouse. You should use the USB/PS2 compatible mouse only if you use the 8 or 16ch DVR. If you use the 4ch DVR, you may use the USB mouse.
  • Page 59 CH 4 Mouse Operation 2) Sub menu of ‘Search’ - Graphic Search - Log List - Textin Search - Time Search - Backup 3) Display - full screen - quad screen - 6 splitting screen - 9 splitting screen - 8 splitting screen - 13 splitting screen - 16 splitting screen 4) Operation upon Play with the...

  • Page 60: Ch5. Client Program

    CH 5 Client Program CH5. Client Program 5-1. Installing Client Program This program supports Windows 98, 2000, ME, XP and Vista. This program installation is for communication between DVR and PC. Execute SETUP.EXE on CD provided with the product. When you followed installation procedure properly and Active DVR 104V folder is created on program menu, program installation process is completed.
  • Page 61 CH 5 Client Program ▶ Available VGA - Chipset from nVIDIA: GeForce 4- Higher than 64MB - Chipset form ATI: Radeon - Higher than 64MB - Chipset from MATROX: G450 - Higher than 64MB - Chipset from Intel: Higher than 64MB If you use a chipsets with lower specifications compared to the above benders, there might be program errors or low screen quality like black&white screen or you will even be unable to play.
  • Page 62 CH 5 Client Program ① Open CD-ROM Drive and Run Setup.exe and then Appear Setup Menu. ② Click ‘Next’.
  • Page 63 CH 5 Client Program ③ Ask designate Folder to Install the program Recommend Basic setup c:\program files\Digital Video Recorder \DVR client Click Next. ④ Showing Progress of Copy of Files.
  • Page 64 CH 5 Client Program ⑤ Click ‘Next’ ⑥ When Finishing Installation, click ‘Finish’. ⑦ Finish Program Installation...

  • Page 65: How To Use Client Program

    CH 5 Client Program 5-2. How to Use Client Program If you execute Client Program, you will see following password screen. default is none After entering the right password ( ), you can do remotely seeing Live Image on DVR through Client Program, and you can do searching, playback and setup the DVR.

  • Page 66: Initial Screen

    CH 5 Client Program 5-2-1. Initial Screen ① ② ③ ④ ⑤ ⑥ ① Display screen shows the live and playback images. ② Setting : To go to the setup screen Minimize : To minimize the client software window Maximize : To maximize the picture. You can use the full monitor screen to see the picture.
  • Page 67 CH 5 Client Program If you press the ‘Setting( )’ button, the below screen appears. Client software password setup : the setting about password Start – If choosing, it will ask the password on starting. Setting – If choosing, it will ask the password in order to enter the setting Password Change –...
  • Page 68 CH 5 Client Program ③ WATCH MODE : Live screen. FAVORITE MODE : To connect the multiple DVR and to show the multiple channel up to 64 SEARCH MODE : Playback Screen SETUP MODE : Setup of connected DVR CONNECT : To connect or disconnect the selected DVR. ④...
  • Page 69 CH 5 Client Program ⑤ This shows the network speed and frame rates per channel. Site mode – It is possible to send up to 7.5 frames per second on 16 channel screen in Watch mode and 30 frames per second on 1channel screen. Favorite mode –...

  • Page 70: Connecting The Dvr

    CH 5 Client Program 5-2-2. Connecting the DVR If you click ‘Add’ button at lower right corner of initial screen , you will see ‘Site Add’ window. You can add the wanted DVR in this window. Group – You can set the group of DVR. You can choose the existing group or make the new DVR Group with ‘New’...

  • Page 71: Initial Screen After Connection

    CH 5 Client Program 5-2-3. Initial Screen after connection Choose the DVR on the ‘Site’ list and click the ‘Connect’ button. You can see the live screen of the selected DVR. If you choose ‘Favorite’ button, you can connect many DVR at the same time and also you can make your own favorite DVR group.

  • Page 72: Watch-Live Viewing

    CH 5 Client Program 5-2-4. WATCH – Live viewing If you choose ‘Control’ button after connection, you can see the control screen. ① Channel selection ① ② ② Display mode selection ③ PTZ control : You can control the PTZ camera . ③...

  • Page 73: Favorite - Multiple Dvr Connection

    CH 5 Client Program 5-2-5. Favorite – multiple DVR connection In Favorite Mode, you can make your favorite multiple connection lists by pressing the ‘Add’ button or dragging from the ‘Site’ lists. If you press the ‘Add’ button in Favorite Mode, the upper window will appear. The left side of the window shows the DVR list what you registered in site menu and the right side of the window shows the Favorite list which you want to edit.
  • Page 74 CH 5 Client Program If you press the connect button after selecting the Favorite list, the below window appears and you can watch simultaneously up to 64 channels. This favorite mode only can be adapted to the ‘Watch’ mode not a ‘Search’ mode and ‘Setup’...
  • Page 75 CH 5 Client Program You can register the DVR or individual channel to the Favorite list directly not to make the list. You can just drag and drop the wanted DVR or channel from the right window to the wanted left channel. It will automatically connect to the selected DVR or channel.

  • Page 76: Search-Playback

    CH 5 Client Program 5-2-6. SEARCH – Playback If you choose ‘SEARCH’ button after connection, you can go to the playback mode. If you choose ‘Control’ button on ‘SEARCH’, you can see the below control. ① ② ③ ④ ⑤ ⑥...
  • Page 77 CH 5 Client Program To play slowly forward.(1/2,1/4 times slower) To play slowly backward.(1/2,1/4 times slower) To go to the next image To go to the previous image ③ Time : You can search by hour. Event : You can search the event file from event list. ④...
  • Page 78 CH 5 Client Program Snapshot : This is the feature to capture the image in LIVE or PLAYBACK as well as saving and printing it. If you press this button, following Image window will be appeared. Zoom In : You can enlarge the image, every time you click the button, it will enlarge the picture up to 4 times.
  • Page 79 Option : Changing the related setting. OSD Option This turns the OSD On/Off on live viewing. Favorite Mode Max Fps : You can adjust the maximum frame rate individually upon ‘Favorite’ connection. If you choose ‘AUTO’, the program chooses the optimum rates based on the PC and network speed.

  • Page 80: Setup-Remote Setup Of Dvr

    CH 5 Client Program 5-2-7. SETUP – Remote setup of DVR You can set the preferences of the DVR remotely. Click the ‘SETUP’ button to set up the DVR remotely and setup screen will appear. There are two setup ways ; Dialog setup and interactive setup. The upper screen is interactive setup.
  • Page 81 CH 5 Client Program 1) Interactive Setup : If you choose the ‘Interactive’ on ‘Global Setting’, you can set directly the DVR as you are in front of DVR. The example of the interactive setup The screen shot upon pressing ‘MENU’ The screen shot upon using mouse •...
  • Page 82 CH 5 Client Program 2) Dialog Setup : If you choose the ‘Dialog’ on ‘Global Setting’, the following screen appears. ① ② ③ ④ ⑤ ⑥ ① Load : Loading the saved configuration file ② Save : Saving the current setting to the configuration file ③...
  • Page 83 CH 5 Client Program 1) A/V Setup This feature is enable to set the preferences about the audio and video. 2) Record Setup This feature is enable to set the preferences about the continuous and event recording. You can set the recording type, audio, resolution, FPS and quality individually.
  • Page 84 CH 5 Client Program 3) Scheduler Setup If you check the ‘Scheduler ’ , the Scheduler setup screen appear. You can change the weekly scheduler through dragging the mouse. All the information about the group will be shown the lower box. 4) Rec Group You can change the contents of the groups in here.
  • Page 85 CH 5 Client Program 5) Event In You can set the event input such as sensors and motion detection in here. 6) Text In This is setup for ATM, cash register and POS.
  • Page 86 CH 5 Client Program 7) Alarm Out You can set the alarm output regarding the event inputs including video loss in here. 8) Storage This is setup for HDD and IDE devices.
  • Page 87 CH 5 Client Program 9) Network This is setup for network. 10) System This is setup for system. After changing the preferences of the DVR, click the ‘OK’ to preserve the changing.

  • Page 88: Firmware Upgrade

    CH 5 Client Program 5-3. Firmware Upgrade After installing the client software, you can find the ‘NetDownloader Program’ in the window programs (Start -> programs -> DVR Client -> NetDownLoader) . Please execute this ‘Net Downloader Program’ to upgrade the firmware of the DVR. After typing the IP and password of the DVR, click the ‘Connect’...
  • Page 89 CH 5 Client Program When you connect the DVR, click the ‘open’ button on the ‘NetDownloader Program ’and select the update file and then press the ‘start’ button. You can see the below download window on the DVR screen. ☞ WARNING!!! Do not turn off the power during download procedure.

  • Page 90: Web Browser Monitoring And Playback

    CH 5 Client Program 5-4. Web browser Monitoring and Playback This DVR has built in web server. You can monitor and control the PTZ camera using the web browser. Type the IP or domain address to connect the DVR. Then type the USER ID (admin or user) and the password of the DVR.

  • Page 91: Trouble Shooting

    Trouble Shooting Trouble Shooting Symptom Checkpoint Countermeasure ● Can't turn on power ● Is DVR connected to power ● Connect power cable supply cable? ● There is no image on monitor ● Are DVR and monitor turned ● Turn on power. ●...

  • Page 92: Warranty

    Warranty Warranty This product guarantees free repair based on guarantee regulations only if the malfunction is caused while customers were using it properly. Warranty Period Warranty period begins from the day this product is delivered to customer. Model Name Warranty From .

  • Page 93: Appendix A How To Connect Pos

    Appendix A Appendix A How to Connect POS 1. Connect the RS232(COM port) between POS and DVR. 2. Set the preference of the POS on the DVR. If your POS is in the device list in the text in setup of DVR, you just simply choose that device. If not, you should choose ‘USER’...
  • Page 94 Appendix A 3. To set manually, at first you should know the setting values of the POS. You can get the information from the POS setting screen. 4. If your setting is correct, you can see the below DVR screen on transaction. (This is the popup screen.

  • Page 95: Appendix B How To Connect The Dvr Controller (Tbt)

    Appendix B How to connect the DVR Controller (TBT) <Controller> <Junction Box> <8P RJ45 Modular Cable> <1:1 D-Sub Cable> <12V DC Adapter> <DVR Rear RS232Port> Connect the controller and junction box using 8P Cable. Connect the 12V adapter to the junction box. Connect the DVR and the junction box using the 1:1 RS232 Cable (not twisted cable).
